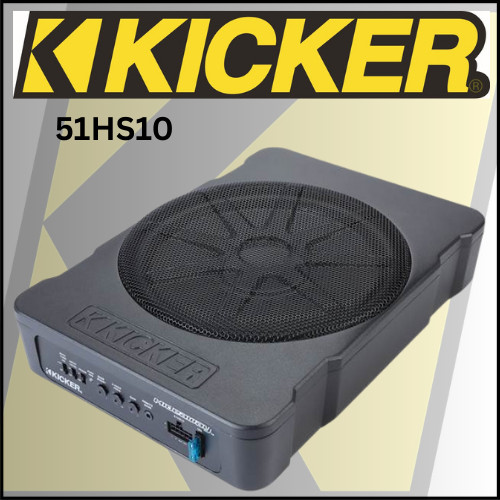

51HS10Hideaway™ compact powered subwoofer with 10\" sub and 180-watt ampBigger bass for your small space
When Kicker created the original Hideaway™ compact HS8 powered sub, they produced a subwoofer that could fit almost anywhere and still deliver the performance that made Kicker famous. Their new HS10 sub combines the extra punch of a 10\" speaker with a built-in 180-watt amplifier to give you really impressive bass response from a sub that will still fit almost anywhere.
Rugged and versatile
With a Kicker 10\" woofer, you can expect serious low end, and you can install the HS10 under most seats to bring the bass right up close. The tough all-aluminum chassis and stylish metal grille protect the speaker and ensure long life. High- and low-level inputs give you plenty of options for connecting to your system, and the HS10\'s FIT+™ (Fail-safe Integration Technology PLUS) accepts input signals from 0.25 to 40 volts so it works with almost any vehicle without adding a line output converter.
Dial in your sound
The Hideaway includes an adjustable low-pass crossover, a subsonic filter to improve efficiency, a phase switch, and a variable +6 dB bass boost adjustable with the included remote control bass knob. The HS10 also offers two auto turn-on options. The package includes a wiring harness for power, signal and remote turn-on connections with a quick-connect Molex® plug to make installation simple.
Product highlights:
- compact powered subwoofer with 10\" speaker
- wired remote control
- all-aluminum chassis with metal grille
- built-in amplifier: 180 watts RMS
- includes 16-foot power cable and other wiring
- speaker-level inputs (will also accept preamp-level signal using optional adapter, item 20646KISL, sold separately)
- auto turn-on
- frequency response: 25-120 Hz
- variable low-pass crossover (50-120 Hz)
- subsonic filter (25 Hz at 24 dB per octave)
- variable phase control (0 or 180 degrees)
- bass boost control (variable to +6 dB at 40 Hz)
- dimensions: 9.83\"W x 3.25\"H x 15\"D
- weight: 11.4 lbs.
What\'s in the box:
Kicker 51HS10 owner\'s manual
If you need assistance accessing this owner\'s manual, please give us a call.
- 10\" Amplified subwoofer
- Wiring harness (17\' Power input/ 8\' Speaker level input/ 2\' Ground/ 2\' Remote turn-on)
- 12\" Power wire with in-line fuse holder and installed 15A ATO fuse
- Two 15A ATO fuses (1 installed in the chassis of the unit/1 spare)
- Remote bass level control
- 19.5\' Remote cable (3.5mm TRS plugs on both ends)
- 4 Mounting brackets
- Four 3/4\" pan head screws
- Eight 1/4\" counter-sunk screws
- Two 3/8\" screws
- Two 10-12 gauge crimp-on ring terminals
- One 10-12 Gauge butt connector
- Owner\'s manual (En/ Sp/ Ge/ Fr)
