Key Features
High performance 3-way triaxial design provides extraordinary volume and crisp accurate details for factory system upgrades.
Zero-protrusion PEI tweeters with neodymium magnets ensure superb clarity and fitment behind nearly any factory speaker grille.
Heavy-duty motor and magnet structure with EVC technology delivers ultra-clean bass and precise linear excursion.
Rugged construction featuring UV-treated poly-foam surrounds and a stamped-steel frame for resistance to heat and sunlight.
Integrated 2-inch midrange drivers provide dedicated attention to mid frequencies for enhanced sonic realism.
Features
Performance and Design

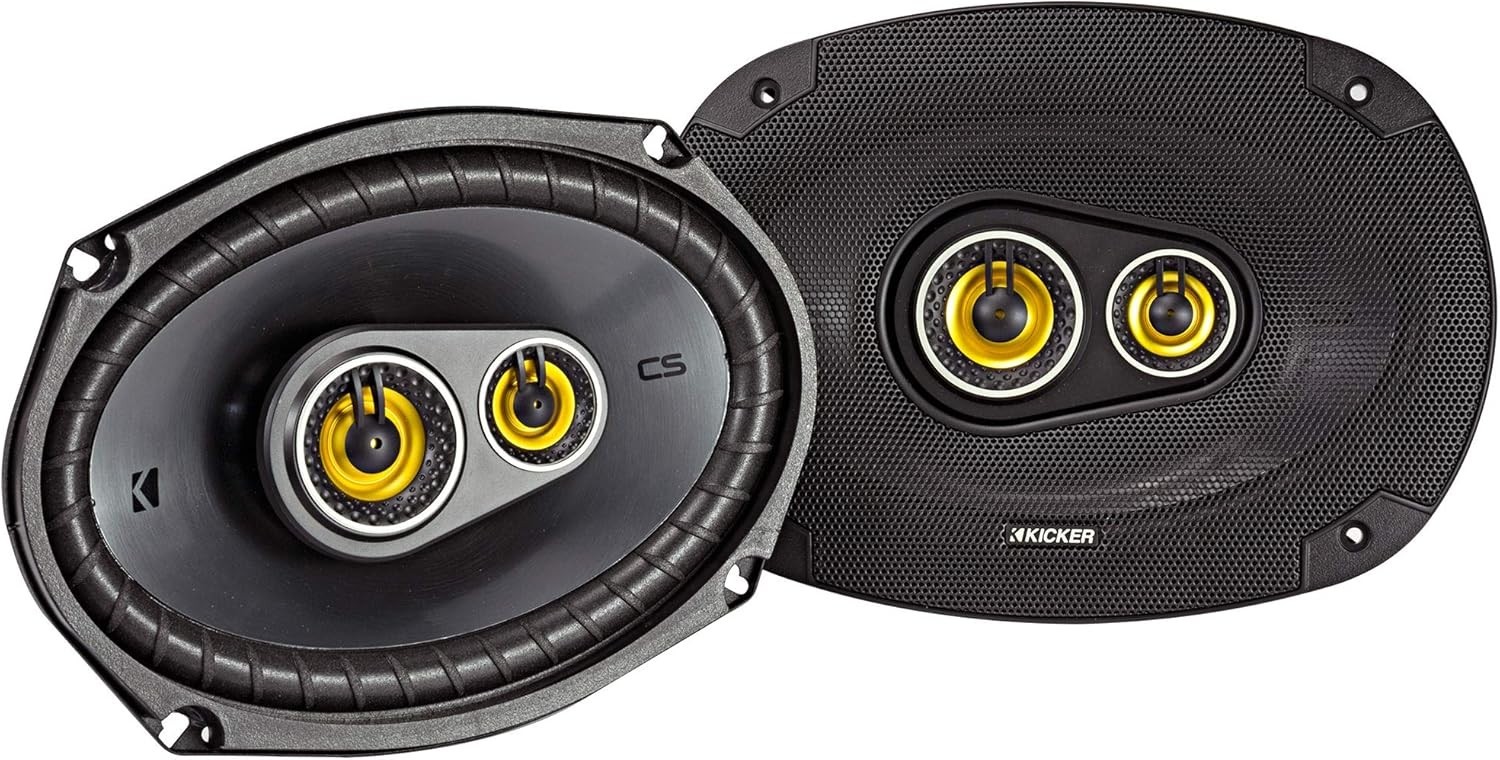

The CS-Series 3-Way speakers deliver remarkable performance using a heavy-duty motor and magnet structure. A stamped-steel frame supports a rigid polypropylene cone equipped with Extended Voice Coil technology for high sonic quality. The triaxial driver includes an integrated 2-inch midrange driver and a dedicated tweeter for detailed audio reproduction.
Fitment and Compatibility
Designed to fit nearly every car made, these speakers feature zero-protrusion tweeters to accommodate almost any factory depth. This allows the high-frequency components to function without interfering with original vehicle grilles.
Durability
The woofer is built with a UV-treated poly-foam surround that resists damage from heat or direct sunlight. Steel mesh grilles are included to provide physical protection for the speaker components.
What’s in the Box
Specifications
- Speaker Design: 3-way
- Woofer Size: 6x9 in (160x230 mm)
- Mid Size: 2 in (50 mm)
- Tweeter Size: 1/2 in (13 mm)
- DC Resistance: 3.5 ohm
- Peak Power: 450 watts
- Recommended Amplifier Power: 150 watts RMS
- Sensitivity: 92 dB @ 1W, 1m
- Effective Frequency Range: 30-20k Hz
- Mounting Hole Diameter: 5 5/8 x 8 7/16 in (143x215 mm)
- Top Mount Depth: 3 3/16 in (81 mm)
- Bottom Mount Depth: 3 11/16 in (93 mm)
- Tweeter Protrusion: 1/16 in (1 mm)
- Grilles: Yes
- Tweeter Magnet Material: Electric Crystal Motor
- Tweeter Dome Material: PEI (polyether imide)
- Tweeter Design: Balanced dome
- Woofer Cone Material: Polypropylene
- Woofer Surround Material: Polyester foam
