Product Description
International Buyers - Please Note:
If you need to return the item for some reasons,pls contact us via message at the fist timeto get theRMA# and return addressinstead of sending back directly without permission.Thank you!
Launch X431 I-MMO Prog-rammer X-PRO G3 PC Adaptor Overseas Online Configuration
Product Features:
1. Used in conjunction with X-PROG3 anti lift matching Progarmmer
2. 2D menu, clear and easy to choose
3. Powerful search function
4. Convenient modification of E-C-U data
5. USB communication, with a speed more than three times that of Android devices, making it more stable
6. Easy to copy data
7. Support engine data validation function
8. 1 year of free update online, after that, the renewal fee is 249USD/year.
9.Global version, No IP limitation.
*Make sure you buy the GL version of PC adapter, otherwise it has IP limitation.
NOTE: A X-prog3 can only bind with one PC adapter only !!!
Software download link:Download on the official website
Software language: English, German, Japanese, Russian, French, Portuguese, Korean, Italian, Arabic, Traditional Chinese
Select the corresponding language setup to install.
PC Software Interface Description:
Firstly, connect the X-PRO G3 PC ADAPTOR to the computer using a cable, and then connect the X-PROG3 PC ADAPTOR to G3. Secondly, click to enter the software (without connecting the X-PROG3 PC ADAPTOR and G3, the software cannot be accessed). The serial number will be automatically recognized from the X-PROG3 PC ADAPTOR. The activation code needs to be obtained from the envelope of the X-PROG3 PC ADAPTOR. Thirdly, click [Activation] (only once, no need to activate it again later), as shown in Figure 1
I.E-C-U Data Reading/Writing
1. Obtain the related E-C-U.
(1) Method 1: Obtain the desired E-C-U type through brand > model > engine > E-C-U in turn, as shown in Figure 2.
(2) Method 2: Query the desired E-C-U by entering a value in the search box. The search categories include brand, Bo-sch number and E-C-U type. For example, search for the MED17.5.25 engine by E-C-U type, as shown in Figure 3.
2. Click [Straight Connection Line Diagram] to obtain the E-C-U connection diagram, as shown in Figure 4.
3. Connection: Connect the E-C-U and PCBOX according to the information provided in the connection diagram. The physical connection diagram of MED17.5.25 (using the BENCH mode line) is shown in Figure 5, and the physical connection diagram using the gearbox adapter is shown in Figure 6.
4. Read the chip ID, as shown in Figure 7.
5. Back up the EEPROM data and save it, as shown in Figure 8 (the figure shows the save page of the read data).
6. Back up the FLASH data and save it, as shown in Figure 9 (the figure shows the process of reading FLASH data).
7. Restore EEPROM/FLASH data, as shown in Figure 10 (the figure shows the file selection page).
II. Data Processing
1. Click the [Data Processing] button on the main page, as shown in Figure 11, and select [Imm0bilizer Shutoff and File Checkout] [Data Cloning] process for Vol/kswa/gen series and Porsche engine data, as shown in Figure 12.
2. File verification and anti-theft shutdown (process: select file > connect network to obtain > save file), as shown in Figure 13.
Support listJune 2023:
E-C-U Name
E-C-U Type
E-C-U Brand
G3
FLEX
EDC16XX
ECM
Bo-sch
Support
Support
EDC17XX
ECM
Bo-sch
Support
Support
MD1CSXXX
ECM
Bo-sch
Support
Support
MD1CPXXX
ECM
Bo-sch
Support
Support
ME17.X.X
ECM
Bo-sch
Support
Support
MED17.X.X
ECM
Bo-sch
Support
Support
MED9.X.X
ECM
Bo-sch
Support
Support
MEV17.X.X
ECM
Bo-sch
Support
Support
MEVD17.X.X
ECM
Bo-sch
Support
Support
MG1CSXXX
ECM
Bo-sch
Support
Support
MG1CPXXX
ECM
Bo-sch
Support
Support
MSDXX
ECM
CONTINENTAL/SIEMENS
Support
Support
MSVXX
ECM
CONTINENTAL/SIEMENS
Support
Support
SDIX
ECM
Continental
Support
Support
GM EXX/TXX
ECM
DELCO
Support
Support
SIM271XX
ECM
Continental
Support
Support
SIMOS12.X
ECM
Continental
Not support
Support
SIMOS8.X
ECM
Continental
Support
Support
SIMOS-PCR2.X
ECM
Continental
Not support
Support
6HPXX
TCM
ZF
Support
Support
8HPXX
TCM
ZF
Support
Support
7DCT300
TCM
ZF
Support
Support
9G Tronic
TCM
Bo-sch
Support
Support
ALXXX
TCM
ZF
Support
Support
TCXX
TCM
Bo-sch
Support
Support
DPS6/DC4
TCM
GETRAG
Support
Support
DKG
TCM
GETRAG
Support
Support
DLXXX
TCM
Temic
Support
Support
DQXXX
TCM
Temic
Support
Support
MPS6
TCM
GETRAG
Support
Support
SPS6
TCM
GETRAG
Support
Support
VGSX
TCM
GETRAG
Support
Support
VL381
TCM
Temic
Support
Support
GM 6TXX/6LXX
TCM
DELCO
Support
Support
MEDG17.9.8
TCM
Bo-sch
Support
Support
MEG17.9.2
TCM
Bo-sch
Support
Support
Optional adapter accessories(Notincluded in the package):
Accessory
Name
Material
code
function
1
X-PROG3 Adapter Cable 1 (DQ200XX)
307110077
Used to connect the DQ200XX gearbox, and available models include For V-W, ForAudi, etc.
2
X-PROG3 Adapter Cable 2 (VL381)
307110078
Used to connect the VL381 gearbox, and available models include ForV-W, ForAudi, etc.
3
X-PROG3 Adapter Cable 3 (DQ380)
307110079
Used to connect the DQ380/DQ381/DQ500 gearbox, and available models include ForV-W,For Audi, etc.
4
X-PROG3 Adapter Cable 4 (DQ250)
307110080
Used to connect the DQ250 gearbox, and available models include ForV-W, ForAudi, etc.
5
X-PROG3 Adapter Cable 5 (DL501)
307110081
Used to connect the DL501XX gearbox, and available models include ForV-W,ForAudi, ForPorsche, etc.
6
X-PROG3 Adapter Cable 6 (DL382)
307110082
Used to connect the DL382 gearbox, and available models include ForV-W,For Audi, etc.
7
X-PROG3 Adapter Cable 7 (VGS-NAG3)
307110083
Used to connect the VGS-NAG3 gearbox, and available models include ForBenz, ForNissan, etc.
8
X-PROG3 Adapter Cable 8 (VGS2-FDCT/VGS-FDCT)
307110084
Used to connect the VGS-FDCT/VGS2-FDCT gearbox, and available models include ForBenz, ForInfiniti, etc.
9
X-PROG3 Adapter Cable 9 (VGS3-NAG2)
307110085
Used to connect the VGS3-NAG2 gearbox, and available models include ForBenz, etc.
10
X-PROG3 Adapter Cable 10 (8HP_V1(BMW/LR)/8HP_V2/8HP_V3)
307110086
Used to connect the 8HPXX/AL450/AL551/AL552 gearbox, and available models include ForBMW, ForLand Rover, ForJaguar, ForDodge, ForAlpina, ForChrysler, ForRolls Royce, ForAlfa Romeo, ForAston Martin, ForGreat Wall, ForJeep, ForLamborghini, ForMaserati, ForIveco, etc.
11
X-PROG3 Adapter Cable 11 (MPS6)
307110087
Used to connect the MPS6/MPS6_GEN3 gearbox, and available models include ForFord, ForRenault, ForChrysler, ForDodge, ForLand Rover, ForVolvo, etc.
12
X-PROG3 Adapter Cable 12 (DPS6)
307110088
Used to connect the DPS6 gearbox, and available models include ForFord, etc.
13
X-PROG3 Adapter Cable Main Line (ML)
307110089
The extension wire of the gearbox harness, with one end connected to the IMM0bilizer Pr0grammer and the other end connected to the gearbox harness
Package Includes:

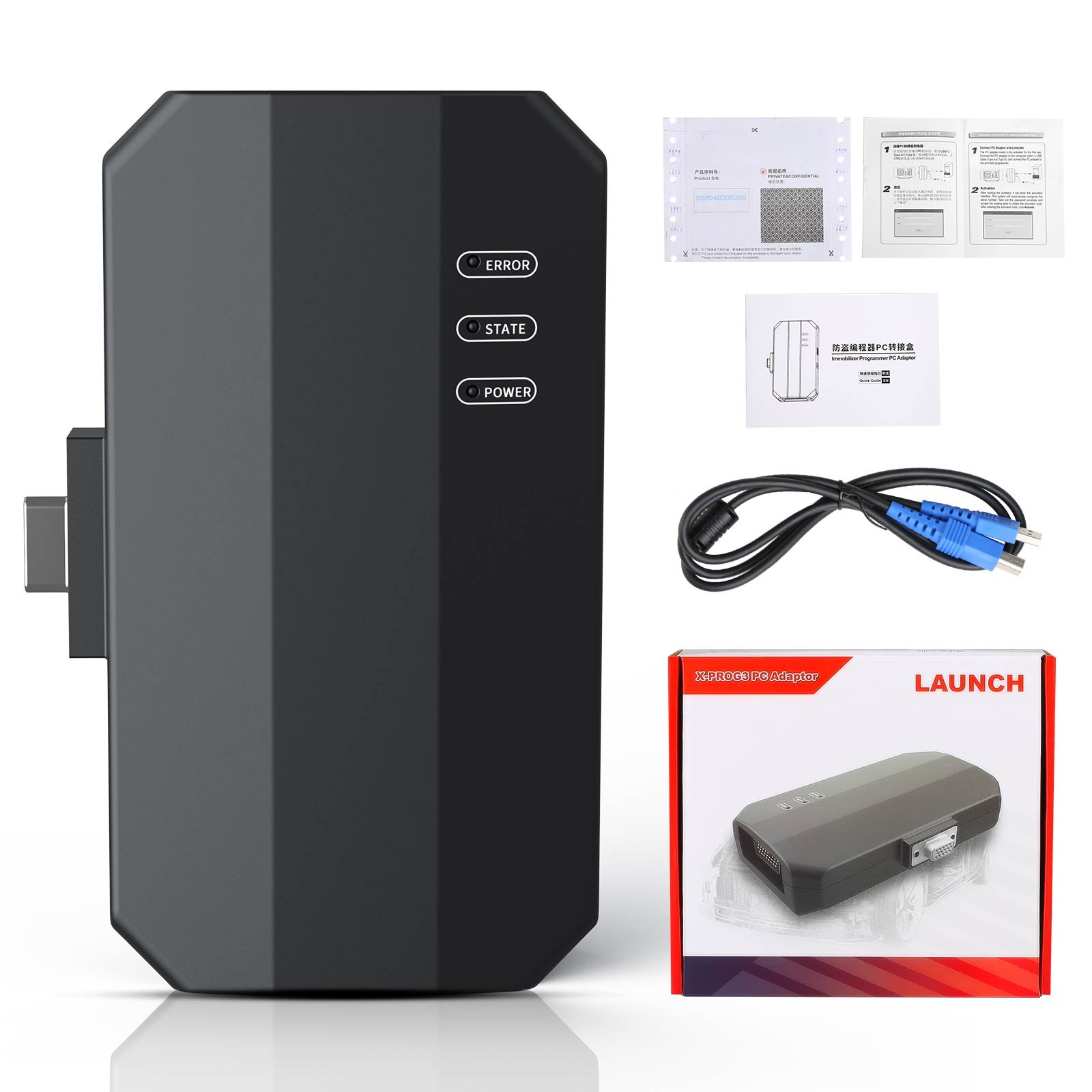

1pc xLaunch X431 IMMO Programmer X-PROG3 PC Adaptor
1pc x USB Type-B Cable
1pc x quick start guide
If you need to return the item for some reasons, please contact us via message at the first time to get the RMA# and return address instead of sending back directly without permission,thank you!
