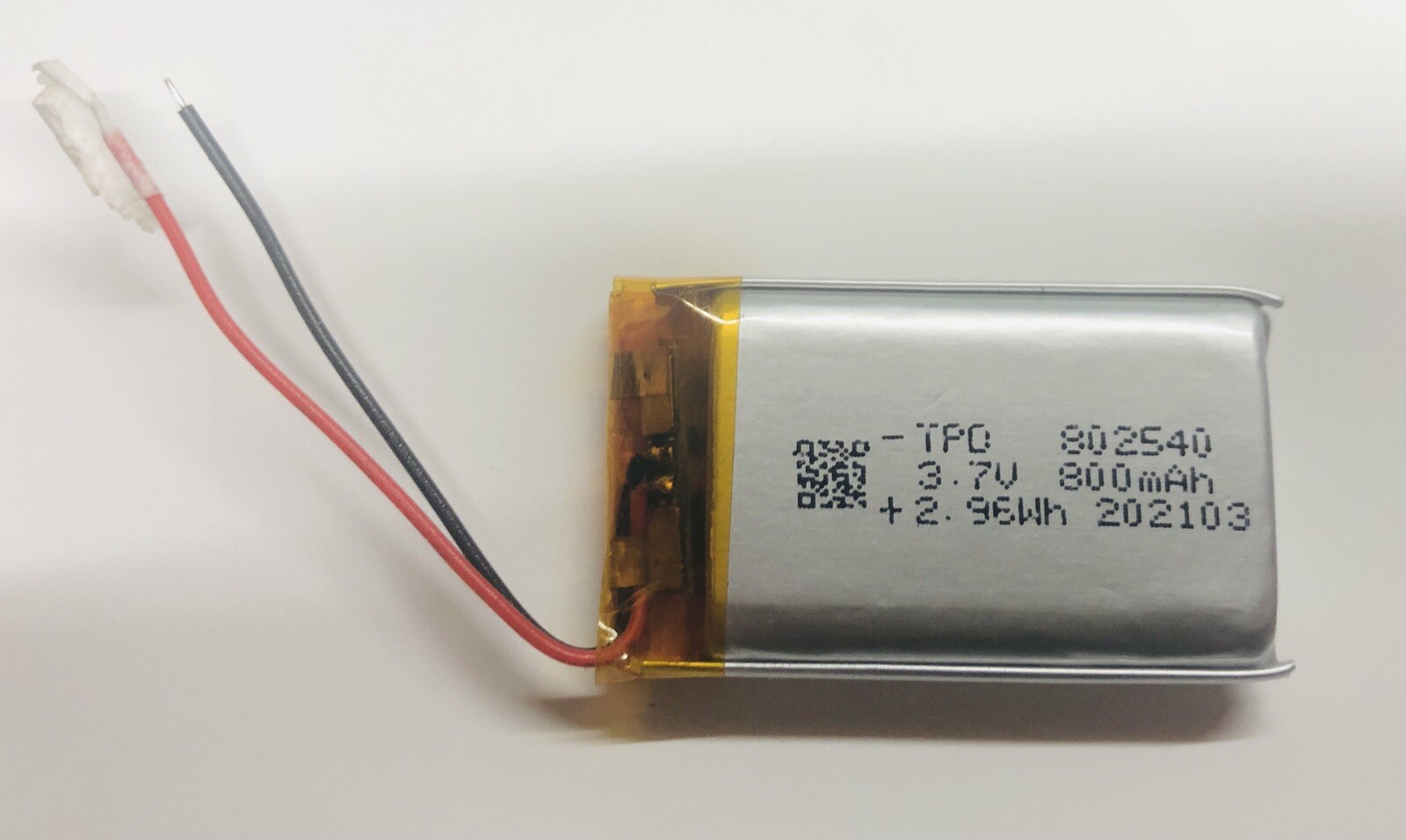

Lithium Polymer Battery 802540 3.7V 800mAh Small Thin LiPo US Seller Fast Ship:
$19.99

Model (size) : 802540
Li battery size : Thickness 8 mm x Width 25 mm x Length 40 mm
Nominal Voltage : 3.7V
Capacity : DC 3.7v 800mAh
Discharging rate : 1C
Cycle life : 800 cycles ,Stable performance with 100% be tested before shipping.
Warranty : 12 Months (from you received it)
Built in PCB for charge, discharge and temperature for Remote controls, LED lighting, underwater lighting system, Bluetooth devices, MP3/MP4 players, safety lamps, GPS, mobile phones, E-books, powerbanks, Portable DVD players, walkie talkies, notebook, tablet PC, PDA, game players, POS machine, consumer electronics device, medical devices, flash lighting garden lighting, project design etc.
Retail package includes:
1 pcs 3.7v 800 mAh Polymer Li lithium rechargeable battery packs 802540

Electrical Charging method ：0.5C （constant current）charge to 4.2V,then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
Rated Capacity ： The capacity means the discharge capacity of the cell, which is measured with discharge current of 0.2C with 3.0V cut-off voltage after standard charge.
Charging time ：Standard Charging：3.0 hours(Ref.) ，Rapid charge： 2.0 hours(Ref.)
Operating temperature ：Charging： -20℃~60℃ temperature ： -10℃~ +45℃
Test condition：Charge:0.5C to 4.2V Discharge:0.2C to 3.0V
70% or more of 1st cycle capacity at 0.2C discharge of Operation
Self-discharge ：Residual capacity >90%
After the standard charging, storied the cells under the condition for 30 days, then measured the capacity with 0.2C till 3.0V
Temperature characteristics ：
-20℃: ≥65%
23℃: 100%
60℃: ≥96%
According to item at 23±5℃
Capacity comparison at each temperature, measured with constant discharge current 0.2C with 3.0V cut-off. Percentage as an index of the capacity compared with 100% at 23℃
Mechanical characteristics:
Vibration Test : No leakage / No fire
After standard charging, fixed the cell to vibration table and subjected to vibration cycling that the frequency is to be varied at the rate of 1Hz per minute between 10Hz an 55Hz,the excursion of the vibration is 1.6mm.The cell shall be vibrated for 30 minutes per axis of XYZ axes.
Drop Test : No fire/ no leakage.
The cell is to be dropped from a height of meter twice onto concrete ground.
