Low Profile Intake Manifold 102MM Throttle BodyFor 97-07 Chevrolet Corvette For Sale

Condition: 100% Brand New
Color: As the picture
Material: Made of high-quality T6061 Aluminum Sheet with 3mm thickness.

• 100% quality assurance tested, more responsive, less expensive, and easier to install.

• Tapered top intake runner increases air velocity, and improves performance, and throttle response.

• Made of high-quality T6061 Aluminum Sheet with 3mm thickness.

• TIG welded by professional craftsmen.

• Able to handle 30lbs of boost and suitable for boosted and vacuum.

• Precision CNC machines head flanges.
• MAP port included.

Original LS1/LS2/LS6 Engine applications:
For 04-07 Cadillac CTS V-series.
For 06-09 Chevrolet Chevrolet TrailBlazer SS.
For 97-07 Chevrolet Corvette.
For 05-06 Chevrolet SSR.
For 01-04 Corvette Z06.
For 98-02 Pontiac Firebird Formula, Trans AM.
For 05-06 Pontiac GTO.
For08-09 Saab 9-7X Aero.
Vehicle compatibility charts are for REFERENCE ONLY. Check product type and size to match your needs.
For LS1 LS2 LS6 (6.0L 5.6L 5.3L 4.8L).
For Chevrolet Small Block V8 GEN. III/ IV(LS-Based):
4.8L/ 293 CI (LR4).
5.3L/ 325 CI (L33, L59, LM4, LM7).
5.7L/ 346 CI (LS1, LS6).
6.0L/ 364 CI (LQ4, LQ9, LS2).

• Installation of the Intake Manifold:
  1. Trial fit the intake manifold without installing the gasket. Ensure that the included mounting studs can be threaded freely into the cylinder head through the intake manifold mounting holes. The mounting flange should be properly seated.
  2. Check the port opening alignment. Test fit fuel and vacuum plumbing, throttle linkage, wiring, etc. to ensure no fit issues.
  3. Install 8 gaskets in the groove of the base (it is recommended to apply grease to prevent falling off).
  4. Install the mounting studs into the cylinder heads.
  5. Put the intake manifold into place on the mounting flange.
  6. Install the washers and bolts provided, engine oil should be applied to the threads. (see the following tightening sequence diagram)
  7. On the underside of the intake manifold plenum area, there is a flange with 4 threaded holes. These ports will provide an adequate source of vacuum ports for the carburetor and EFI manifold. Any of these ports can be used as desired. Any unused ports can be easily plugged or NPT fittings can be capped for later use.

• Installation of the Fuel Rails:
  1. Fix the Rail Fixing Bracket.
  2. Fix the guide rail to the bracket with screws.
  3. The ends of the fuel rail can accommodate the supplied (AN6) fittings and (AN6) cross-braided hose with (AN6) fittings on both ends.

• Installation of the Throttle Body:
  For all EFI 92mm and 102mm throttle body mounting flanges, bosses on the side of the throttle body flange for the mounting of a throttle cable bracket. The throttle body flange may work with a GM LS3 or Ford Coyote drive-by-wire throttle body.

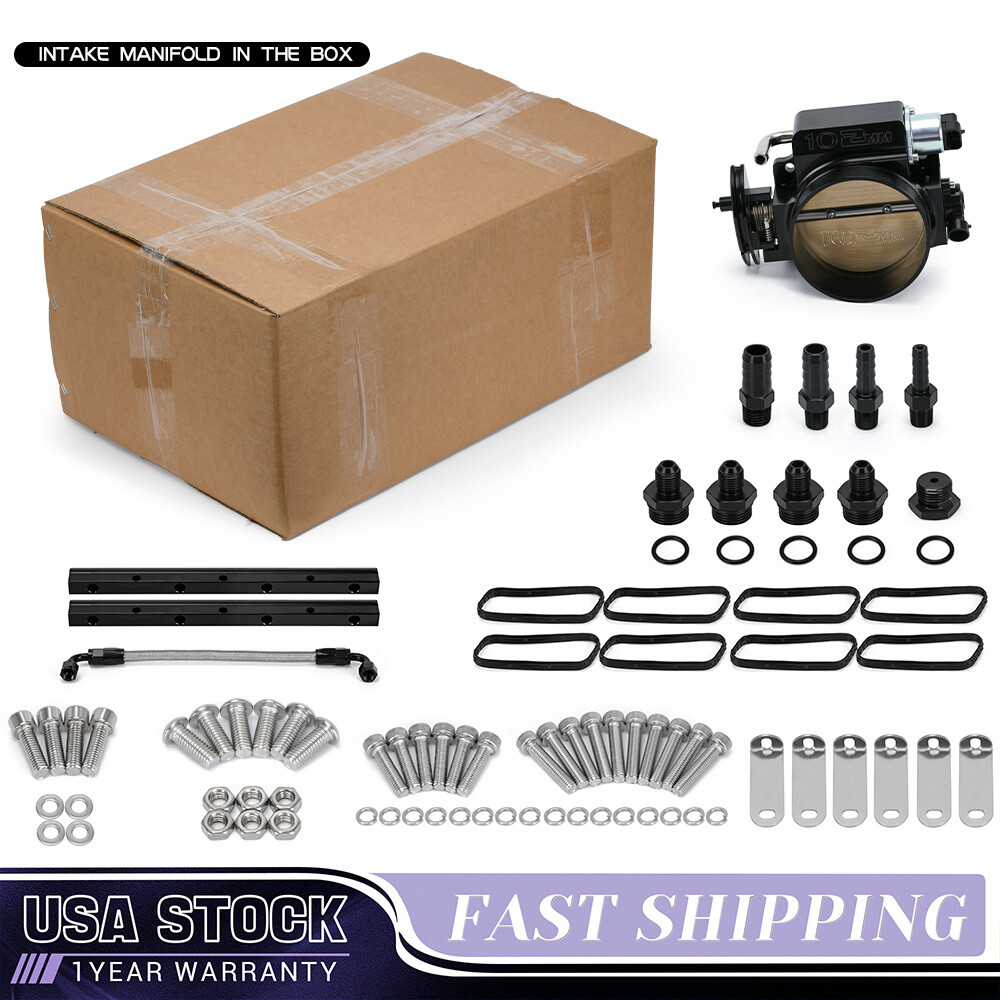

• 1x 102MM Intake Manifold.
  1x 102MM Throttle Body.
  1x Fuel Crossover Line.
  2x Fuel Rails.
  4x Air Outlet Plug.
  4x AN6 Fuel Rail Adapters.
  1x Fuel Rail Block-off Plug, Gasket and other fitting hardware.

• As pictures shown

• Provide a tracking number with every order, please buy with confidence!
• Please allow differences due to manual measurement.
• No installation guides are included, we highly recommend seeking professional installation.
• The color of the actual items may be slightly different from the listing images due to different computer screens.
• For any inquiries, please write to & A📧Contact Us💯After-Sales
  • For any installation or usage issues, please send us photos or videos for assistance. If you are unsatisfied, please contact us before leaving response. We are committed to resolving any issues and ensuring customer satisfaction.
  • We offer free returns and exchanges within 30 days of purchase. If you need to return an item, please select "didn't like them" as the reason to ensure prompt processing.
    Thank you!
