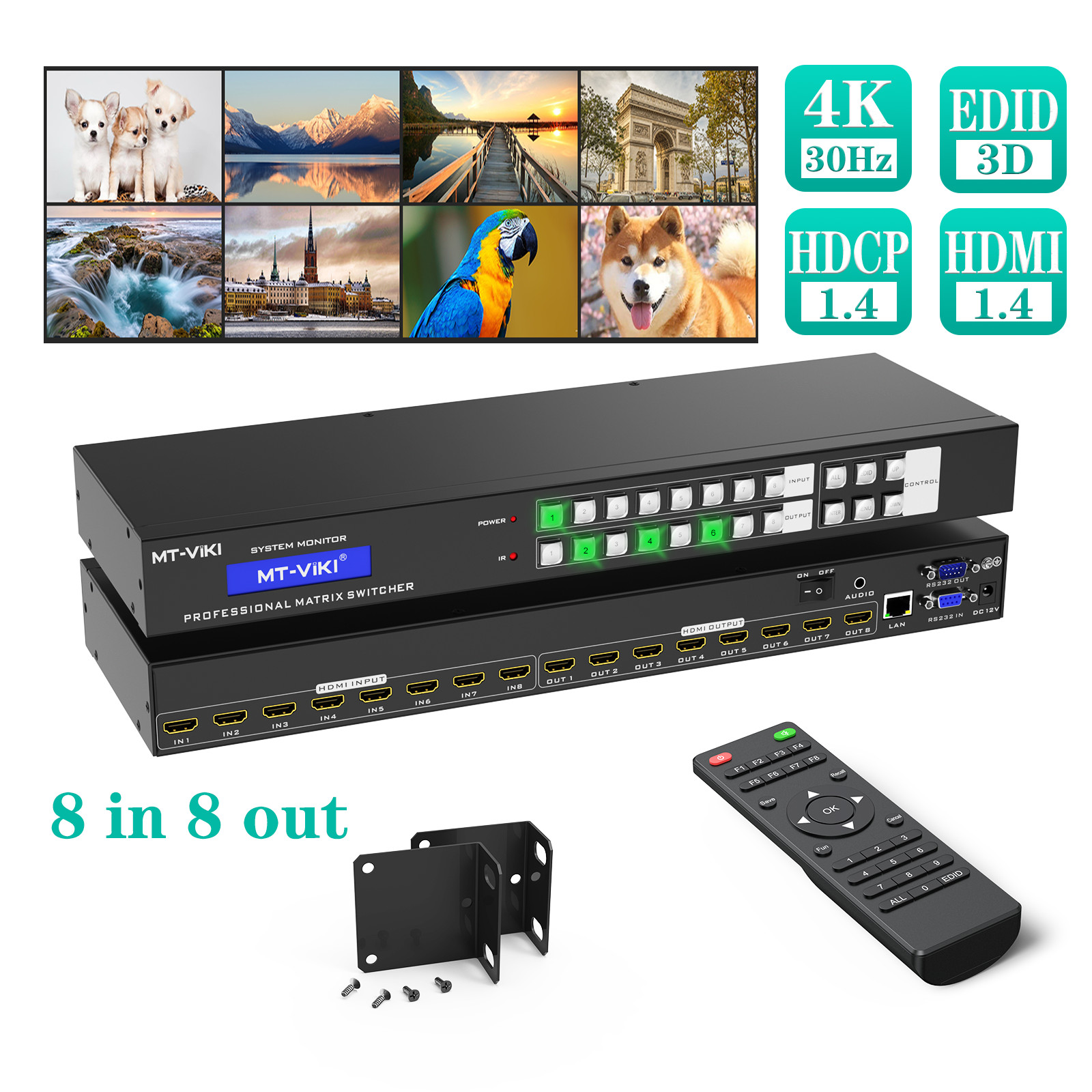

MT-VIKI 8x8 HDMI Matrix Switch 4K@30hz Audio Extraction Web RS232 IR 1U HDCP1.4 For Sale

HDMI Matrix Switch Series8x8 HDMI Matrix Switch16x16 HDMI Matrix Switch4x4 HDMI Matrix Switch8x8 Seamless HDMI Matrix4x4 Seamless HDMI Matrix8x16 Extender HDMI Port:HDMI*8 HDMI*16HDMI*4HDMI*8HDMI*4HDMI*8Output Port:HDMI*8 High-bandwidth Chip3.4G High-bandwidth Chip3.4G high-bandwidth Way:IR Remote Control, Button Switch, LAN Control,RS232,Web ControlIR Remote Control, Button Switch, LAN Control, RS232,Web ControlIR remote control, Button Switch, LAN control, RS232,
Web controlIR Remote Control, Button Switch, LAN Control, RS232,
Web ControlIR remote control, Button Switch, LAN control, RS232,
Web controlButton, IR remote control, RS232, LAN port, WEB GUI, The-third-party, Android APP Equipment Height:1U2U1U1U1U2U MT-VIKI 4K@30HZ 8x8 HDMI Matrix Switch, MT-HD88L 🔥 8 Independent HDMI Outputs | Audio Extraction on Output 8 | Web GUI & LAN Control | 1U Rackmount — The All-in-One 8x8 Matrix for Home Theater & Commercial AVTechnical ParameterOutput Port:8*HDMIAudio Output:Support left and right analog stereo soundInput Port:8*HDMI,1*3.5MMStatic Protection:Human body discharge mode: ±8KV (air gap discharge) ±4KV (electric)Equipment Height:1UControl Method:Standard: Press button, RS232 Serial Port, IR Remote,WEB control,Local Lan port control,Support Supply:DC 12V 2AControl lnterface:RS232IN *1/RS232 OUT*1/LAN*1Input Voltage:AC100V-260AVC,50/60HZHDMI Version:HDMI1.4Power consumption:15WHDCP lugs)Color Space:Support RGB, YUV, YUV colorspace, support X.V.COLO Rextended color class="a-spacing-base">

Feature:

• Outer shell: metal shell
• Support maximum resolution: 4K x 2K @ 30Hz, 1080P @ 60Hz, 3D.
• Supports HDCP decoding, Blu-ray, 3D.
• Support Local LAN control from other computer by installing Matrix Controller (CD driver included)
• Supports PCM, Dolby AC3, DTS5.1, DTS7.1 and DSD audio format.
• Fit 1U 19'' rack, Come with 2 rack ears and screws.
• Built-with Acrylic crystal button and LED backlit.
• Use 3.4G high-bandwidth original switching chip.
• Use high-quality HDMI 1.4 cable, the input transmission distance up to 15 meters, and the output transmission distance up to 20 meters.
• Power off memory function: automatically restore the original status after power resumption.
• Connect any 3.5mm speaker or L/R stereo or home theatre, can share high-quality audio signal from HDMI Output port 8 .
• Audio signal can be separately display, without being affcted by other HDMI outputs.

Package:

• 1 x HDMI Matrix switch 8x8;
• 1 x RS232 Cable;
• 1 x IR Remote;
• 1 x Rack ears & screws;
• 1 x Power cable & adapter;
• 1 x CD driver
• 1 x User Manual.

NOTE: Only "HDMI Output 8" Support 3.5mm audio extraction.
