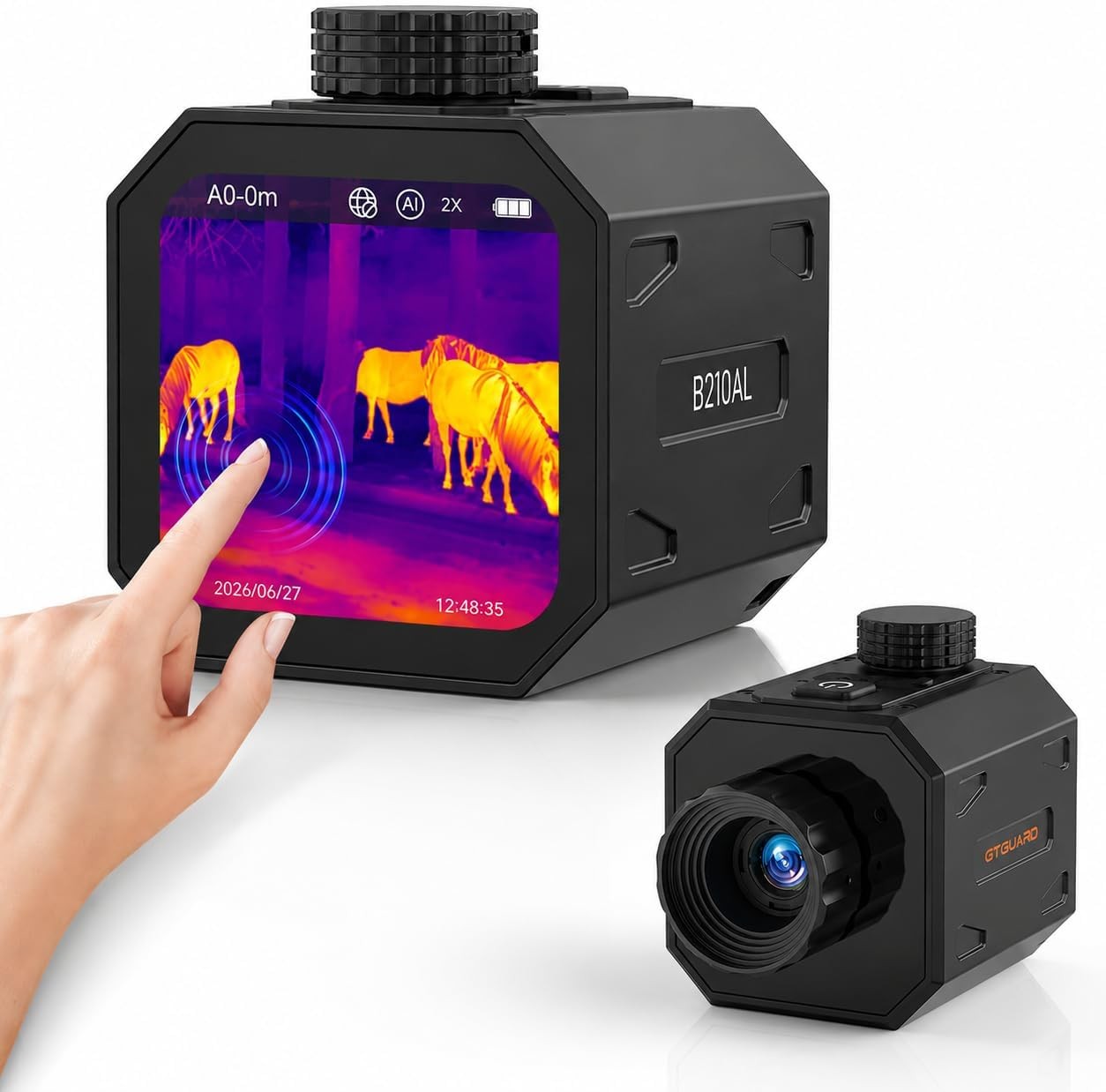

Mini Touch Thermal Imaging Scope Night Vision Hunting Camera Thermal Bow Sight For Sale

GTGUARD ClearView B210AL Thermal Imager – See Beyond the Visible Overview

🏹 Bowhunting & archery – spot and range your target with precision

• 🌙 Night hiking, off-road adventures & exploration

• 🕯️ Caving or dark-environment expeditions

• 🐾 Wildlife observation & photography

• 🆘 Emergency search & rescue assistance

🔥 What Is a Thermal Imager – And Why You Need One

Feature Night Vision Thermal Imager Works in total darkness ❌ Needs ambient light ✅ Sees heat – no light needed Sees through smoke/fog ❌ Severely limited ✅ Penetrates smoke and haze Detects camouflaged targets ❌ Cannot see through camouflage ✅ Detects body heat behind cover Reveals heat signatures ❌ No ✅ Yes – identifies living beings Day/night usability ❌ Daytime use damages tubes ✅ Works 24/7 in all conditions Detects game through foliage ❌ Cannot see through leaves ✅ Sees heat through light brush

🏹 Built for Bowhunters – Spot, Range, and Track with Confidence

1. Detect Game Before It Detects You

Scan treelines and field edges from a distance to see what\'s hiding before you even enter the area

• Spot bedded game that would be invisible to the naked eye or conventional optics

• Track wounded game by following their heat signature – even in complete darkness

2. The Laser Rangefinder – Critical for Bowhunting

Rangefinder Specification Performance Measuring Range ≥600m (up to 1,968 feet) Accuracy ≤±1m (≤300m) / ≤±2m (>300m) Blind Zone ≤5m Hit Rate ≥99% – reliable, every single time Modes Single measurement or 1Hz continuous real-time tracking

Range your target with a single press – know the exact yardage before you draw

• 1Hz continuous ranging tracks distance in real-time as the animal moves – essential for spot-and-stalk situations

• ≤±1m accuracy – critical for precise holdover and pin selection

• No need for a separate rangefinder – one device does both thermal imaging and distance measurement

3. 1-8X Digital Zoom – Stay at a Safe Distance

Scan at low magnification for wide-area surveillance

• Zoom in at 4X or 8X to examine a specific animal – check antler size, body condition, or confirm it\'s the target you want

• Observe from a distance without closing in prematurely and alerting the game

4. Lightweight 185g Design – No Fatigue During Long Holds

👆 Intuitive Touchscreen – Control with a Tap, Swipe, or Pinch

Why Touchscreen Matters for Outdoor Use: Scenario Button-Only Device Touchscreen B210AL Adjusting brightness Find button, click multiple times, wait Tap the icon – slide to adjust Switching color palettes Cycle through 6+ options with one button – overshoot, go back Tap palette icon – select visually Zooming in/out Hold button, wait for step-by-step zoom Pinch to zoom – instant, intuitive Capturing photo/video Find record button in the dark Tap the on-screen shutter – feels like a smartphone Navigating menus Memorize button sequences Swipe, scroll, tap – just like your phone The AMOLED Advantage – Clearer Than Any LCD

True blacks – Thermal images often have dark backgrounds; AMOLED turns pixels completely off for exceptional contrast

• Vibrant colors – 16.7 million colors bring thermal palettes to life

• Glove-compatible – Works even when you\'re wearing thin hunting gloves

• Wide viewing angles – Share the view with hunting partners without losing clarity

📐 Wide 17.46° Field of View – Scan, Detect, and React

Use Case FOV Benefit Scanning a treeline Cover more ground in a single sweep – detect game faster Tracking moving animals Keep targets in frame longer – smoother tracking Cave/forest navigation See terrain and obstacles in context – better situational awareness Search operations Scan wide areas systematically – no gaps in coverage 🌙 See Farther, Clearer, in Total Darkness

Specification Detail What It Means Detector Resolution 256×192 Clear, detailed thermal images Pixel Pitch 12μm Captures fine thermal details NETD (Thermal Sensitivity) ≤45mk Detects temperature differences as small as 0.045°C F/1.0 Aperture Maximum light-gathering Bright images even in challenging conditions

Detect the body heat of a deer at over 300 meters in complete darkness

• See through light foliage – find bedded game that\'s invisible to the naked eye

• Track wounded game – body heat remains visible for extended periods

• Spot predators (coyotes, bobcats) that might spook your target

📸 Capture, Record, and Share – 32GB Built-In Storage

Feature Capability Photo Capture Capture high-quality thermal still images Video Recording Record your hunts, observations, or search operations Storage 32GB built-in – ready to use, no separate memory card needed File Management Delete and export media files easily Wi-Fi Wirelessly transfer images and videos to your phone

Document your hunts – capture the moment of the stalk, the shot, or the recovery

• Share scouting finds – send thermal images to hunting partners

• Review and learn – analyze animal behavior patterns after the hunt

🧭 Full-Spectrum Motion Sensors – Stay Oriented in the Dark

3-Axis Gyroscope – Tracks angular motion and rotation

• 3-Axis Accelerometer – Detects movement and tilt

• 3-Axis Electronic Compass – Provides directional orientation

🏔️ IP65 Rugged Design – Built for the Hunt Feature Specification Benefit Waterproof IP65 – Jet water resistant Use in rain, snow, or wet conditions Dustproof IP65 – Dust-tight Works in sandy, dusty environments Operating Temperature -20°C to +65°C Performs in freezing winters and hot summers Material ABS+PC rugged casing Withstands drops, bumps, and rough handling

⚡ Battery & Power – 3 Hours of Continuous Use Specification Detail Battery Built-in 3.7V 2000mAh rechargeable lithium (non-removable) Battery Life ≥3 hours of continuous operation Charging Type-C port – charges via USB-C (cable included) Data Transfer Type-C also supports file transfer to PC

📱 Multiple Mounting Options – 1/4\" Threads

Mount it on a tripod for stable, hands-free glassing

• Attach to a bow or crossbow using compatible accessories

• Connect to standard camera equipment

📋 In the Box – Everything You Need Item Purpose GTGUARD ClearView B210AL Thermal Imager The main device Lens Cloth Keep your optics crystal clear USB-C Data/Charge Cable Charging and file transfer Lanyard Secure carry – prevent drops Soft Carry Pouch Protection and portability

✅ Who Is This For? – Find Your Scenario You Are... This Device Helps You... 🏹 Bowhunter / Archer Spot game through brush, range targets with ±1m accuracy, track wounded animals – all in one 185g device 🌙 Night Hiker / Explorer Navigate safely in total darkness – see terrain, obstacles, and wildlife 🕯️ Caver / Dark-Environment Explorer Explore caves and tunnels – detect temperature changes, find exits 🐾 Wildlife Observer / Photographer Spot animals at night – track heat signatures, capture stunning images 🆘 Search & Rescue Volunteer Locate missing persons – body heat stands out against cool backgrounds ⛺ Camper / Outdoor Enthusiast Enhance safety – scan surroundings for wildlife or people 🏠 Property Owner Check perimeters – detect intruders or nocturnal visitors 🔑 Key Features – At a Glance Feature Benefit 256×192 VOx Thermal Sensor High-resolution thermal imaging – see heat, not shapes ≤45mk NETD Detects temperature differences as small as 0.045°C 2.16\" AMOLED Touchscreen Intuitive tap/swipe/pinch control – no button-fumbling in the dark Laser Rangefinder (≥600m, ±1m) Pinpoint distance accuracy – essential for bowhunting 1-8X Digital Zoom Get closer without moving closer – observe from a distance 32GB Built-in Storage No memory card needed – start using immediately Photo & Video Recording Document hunts, share with partners, review later Wi-Fi Wirelessly transfer files to your phone IP65 Water/Dust Proof Built for extreme outdoor conditions -20°C to +65°C Operation Works in freezing winters and hot summers 3-Axis Gyro + Accelerometer + Compass Stay oriented in any environment 185g Lightweight No fatigue during long glassing sessions Multiple 1/4\" Mounts Tripod, bow, or accessory compatibility 📊 Technical Specifications – Complete Reference Category Specification Detector Type VOx Uncooled Focal Plane Array Detector Resolution 256 × 192 Pixel Pitch 12μm Spectral Response 8μm – 14μm NETD ≤45mk Lens Focal Length / Aperture 10mm / F/1.0 (diameter 14.2mm) Field of View (FOV) 17.46° × 13.14° ±5% Digital Zoom 1 – 8× Display 2.16-inch, 480×480 AMOLED square screen with TOUCH Laser Rangefinder 905nm±10nm@25°C; ≥600m range; ≤±1m (≤300m) / ≤±2m (>300m) accuracy; ≤5m blind zone; ≥99% hit rate; Single/1Hz frequency Recording Photo and video capture Storage 32GB built-in Wi-Fi Supported Motion Sensors 3-axis Gyroscope + 3-axis Accelerometer + 3-axis Electronic Compass Battery Built-in 3.7V 2000mAh rechargeable lithium (non-removable) Battery Life ≥3 hours Operating Temperature -20°C to +65°C Water/Dust Protection IP65 Mounting Multiple 1/4\" screw threads Data Interface Type-C (charging & data transfer) Material ABS+PC casing Weight 185g Dimensions 74 × 55 × 65 mm Package Weight 0.415kg Package Size 147 × 144 × 77 mm Package Contents Main unit, lens cloth, USB-C cable, lanyard, soft carry pouch

🔧 Advanced Image Processing – Professional-Grade Capabilities Feature What It Does Scene-Out-of-Correction (OOC) Calibrates without closing the shutter – uninterrupted viewing Shutter Correction Standard calibration for consistent image quality Non-Uniformity Correction (NUC) Eliminates pixel variations – clean, uniform image Auto Gain Control (AGC) Automatically optimizes contrast and brightness Digital Detail Enhancement (DDE) Sharpens edges and enhances fine details Multiple Pseudo-Colors Switch palettes – make temperature differences instantly recognizable Hot Spot Tracking Automatically highlights the hottest point in the frame Picture-in-Picture (PiP) Overlays thermal data onto visible reference 🎁 Why Bowhunters Choose GTGUARD ClearView B210AL Aspect What Sets It Apart Thermal + Rangefinder Combo Two essential tools in one 185g device – no need to carry separate gear ±1m Rangefinder Accuracy Critical for bowhunting – precise yardage for pin selection Touchscreen AMOLED Intuitive operation – no fumbling with buttons in the dark IP65 Weatherproof Hunt confidently in rain, snow, or dust 185g Lightweight No fatigue – carry it comfortably all day Built-in Storage 32GB ready to go – no extra memory card needed Wi-Fi Sharing Send images to hunting partners instantly
