Moen Align M-Core 3 Series Valve Trim Integrated Diverter Matte Black UT3290BL For Sale

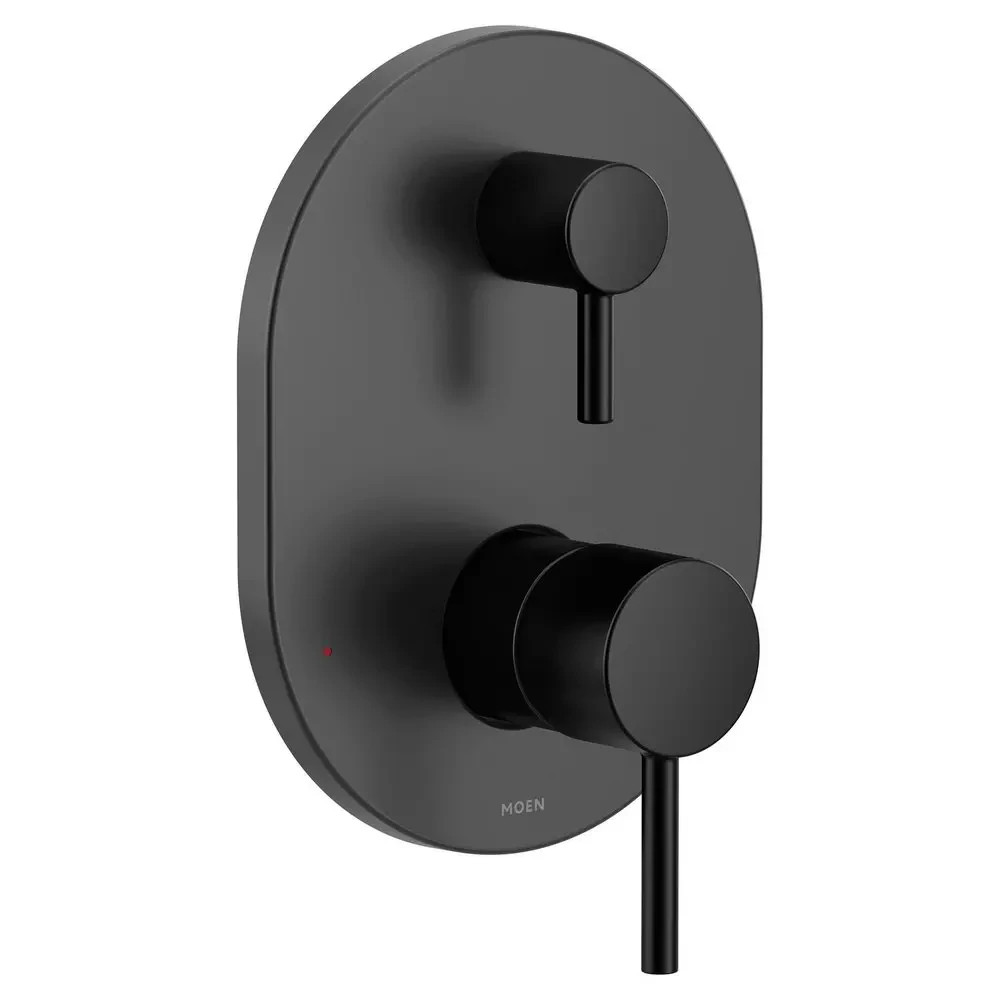

Moen UT3290BL Align M-CORE 3-Series 2-Handle Shower Trim with Integrated Transfer Valve in Matte Black (Valve Sold Separately)

Moen UT3290BL is the Align M-CORE 3-Series 2-Handle Shower Trim with Integrated Transfer Valve in Matte Black.

This Align trim kit is for a shower-only installation with no tub spout. It is the finish side of the shower, installed over a rough-in valve that is already plumbed behind the finished wall. The second handle operates a transfer valve for directing water between outlets.

M-CORE is Moen\'s rough-in valve platform, and this trim is labeled M-CORE 3-Series, so confirm that the valve behind the wall is an M-CORE valve of the matching series before ordering. The rough-in valve is sold separately. When choosing, confirm the valve already installed and match the Matte Black finish to the other fixtures in the room.

Product Description

• Matte Black finish is the perfect complement to modern spaces
• Lever handle makes it easy to adjust the water
• M-CORE with transfer
• Showerhead sold separately
• Built on the Moen M-PACT common valve system, allowing you to update the faucet style in the future without replacing any plumbing
• Complies with Americans with Disabilities Act (ADA) specifications
• This trim kit requires a M-CORE 3-Series Mixing Valve with Integrated Transfer Valve to complete installation
• Integrated M-CORE Transfer Valves can control 2 or 3 showering devices, a simple transfer cartridge modification changes the valve’s flow from two outlets to three outlets
• IMPORTANT: When using 3 Showering Devices, transfer valve cartridge must be modified. Simple Cartridge Modification changes the valves flow from two outlets to three outlets. See Transfer Valve Instructions for additional information.
• IMPORTANT: When using 2 Showering Devices, designated outlet 3 must be CAPPED. Caps are not included with the transfer valves.
• M-CORE valves, with 3-Series trim, have pressure-balancing capabilities designed to control temperature fluctuations in the event of water pressure changes in the home
• Features volume control, allowing you to adjust the flow of water forgreater functionality
• Improved style options, including the perfectly matched mixing and transfer trim, are available
• Offers design flexibility to choose your trim after the valve installation, so you can take your time with your style and finish selections
• M-CORE’S adaptability allows the valves to be roughed in with the option of functionality and style changes that don\'t require removing or changing the valve(s)
• Features an integrated mounting bracket that secures the valve directly to a brace, streamlining the installation process and saving time
• Offers a precise temperature limit adjustment, and the integrated test cap allows installers to easily flush and test the system without having to remove or install the cartridge
• M-CORE mixing and transfer valves are available in several inlet and outlet plumbing options to meet the needs of the installers

Specifications

• Brand:Moen
• Manufacturer Part #:UT3290BL
• Collection:Align
• Finish:Matte Black
• Application:Shower only
• Handles:2
• Valve type:M-CORE 3-Series
• Rough-in valve:Sold separately
• UPC:026508319956
• Category:Pressure Balance Valve Trims

Dimensions & MeasurementsDiameter6-1/2 inEscutcheon Height9-3/8 inEscutcheon Width6-1/2 inFaucet Connection Size1/2 inCharacteristics & FeaturesCartridge TypeCeramic DiscCollectionM-Dura™Color Finish CategoryBlacksColor Finish NameMatte BlackFaucet MountWall MountHandle MaterialMetalHandle TypeLeverNumber of HandlesTwo HandleTrim OnlyYesValve Trim TypeTransfer & DiverterWarranty & Product InformationADA CompliantYesANSIANSI A112.18.1ApplicationResidentialASMEASME A112.18.1ASSE StandardsASSE 1016BAA CompliantYesCARB OTC LEED CompliantNoCSA CertifiedCSA B125.1GSA ApprovedNoIAPMO ListedNoNSF CertifiedNoProduct TypeValve TrimUL ListedNoUPC026508319956
