FCC ID#(s)
Alternate Spellings
Part #(s)
There are several interchangeable part #'s:
10205240 10205241 10239647 15731442 15955702 15725423 15955515 15692636

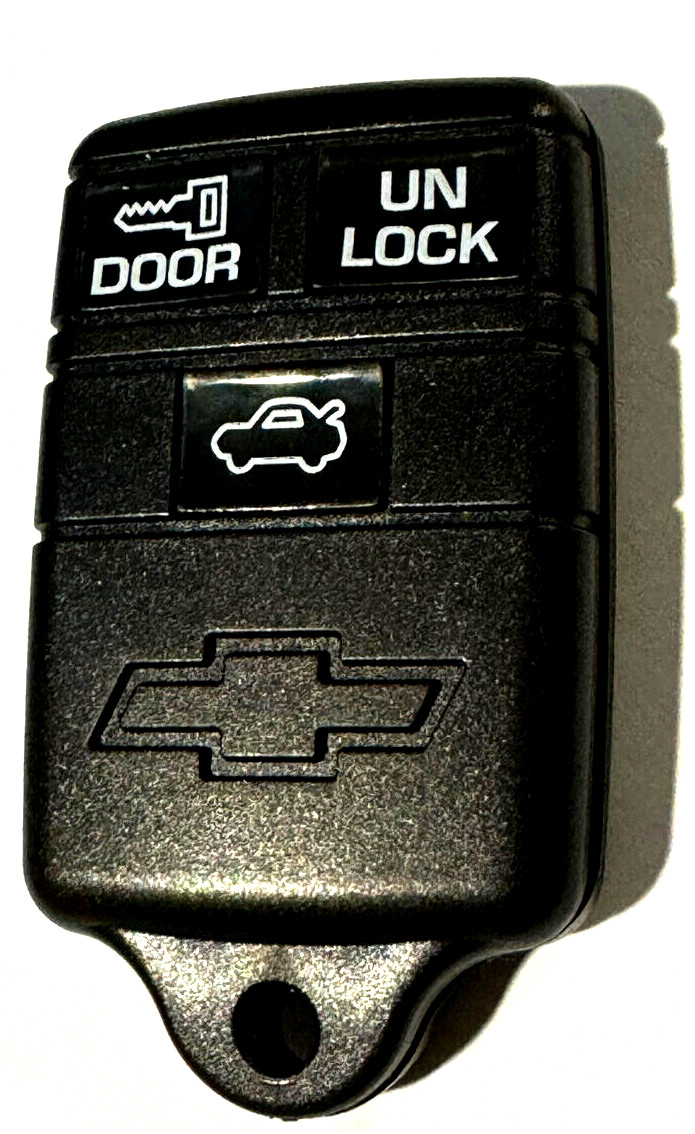

You will receive any one of the remote designs pictured – all have the same exact circuit boards and are interchangeable – case looks – the logos do not matter- the circuit boards are each identical and program the same
Canada: DOC/MDC: 218 K1035
Dealer #(s)
1993 1994 1995 Chevrolet Camaro
1993 1994 1995 1996 Chevrolet Caprice Classic
1994 1995 1996 Chevrolet Cavalier
1994 1995 1996 Chevrolet Impala
1995 1996 Chevrolet Lumina
1995 1996 Chevrolet Monte Carlo
1995 1996 Chevy Astro
1992 1993 1994 1995 1996 Chevy Blazer
1993 1994 1995 1996 Chevy Suburban
1995 1996 Chevy Tahoe
1992 1993 1994 1995 1996 GMC Jimmy
1995 1996 GMC Safari
1993 1994 1995 1996 GMC Suburban
1993 1994 1995 1996 GMC Yukon
1991 1992 1993 1994 1995 1996 Oldsmobile Bravada
Button Count
3: Lock, Unlock, Trunk/Hatch
Battery (installed)
2; CR2016
Frequency
315 MHz (315MHz)
Programming:
Please note not all customers will be able to complete the programming on their own so if you are having trouble or unsure diagnostic programming is available at your local qualified automotive locksmith or car/audio shop.
PROGRAMMING INSTRUCTIONS:
1. Locate the Data Link Port. It is located under dash drivers side. Be sure you know which pins are 8 and 4. (Note port is wider at top) Your OBDII port will not have numbers, use this diagram for reference.
2. Make sure there are metal contact pins in terminals 8 and 4. Connect 8 to 4 with a suitable jumper wire (leave the jumper wire connected throughout the programming procedure). Make sure you know which terminals are 8 and 4. The vehicle will respond by locking and unlocking the doors to signify entering of programming mode.
3.Press and hold both the LOCK and UNLOCK buttons together on the first transmitter to be programmed. After about 15 seconds, the vehicle will respond by locking and unlocking the doors. Release the buttons on the transmitter.
4.Within one minute, repeat the previous step on the remaining transmitters to be programmed.
5.Remove jumper wire applied to the OBDII Port
Condition Notes
ONE (1) NEW OUT OF PACKAGE ready to program TESTED Works 100% Batteryinstalled OEM FACTORY
