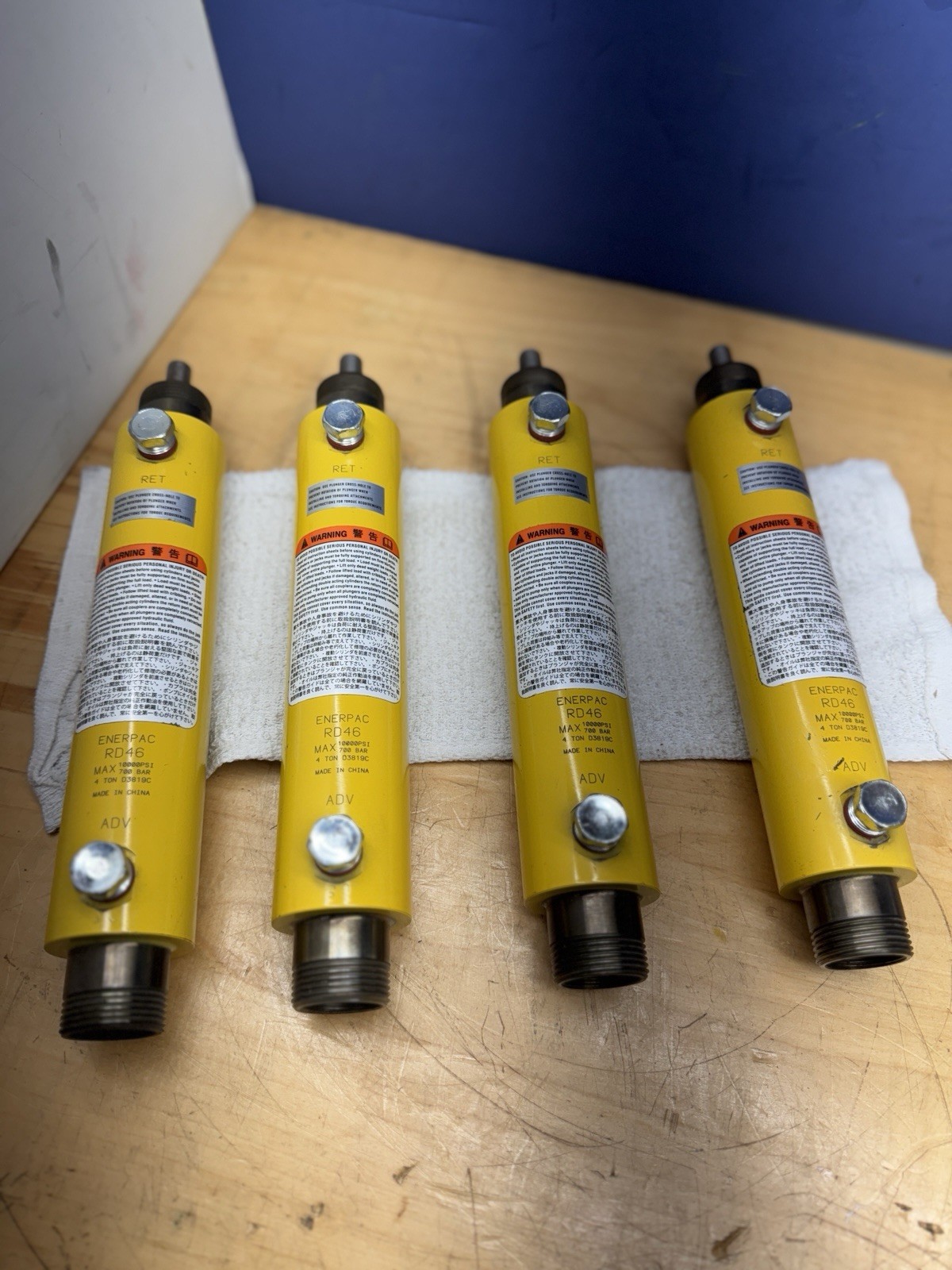

THIS LISTING IS FOR ****ONE**** Enerpac RD46, we have 4 available.
Brand
ENERPAC
MFR #
RD46
Zoro #
G5654747
UPC #
662005305278
Country of Origin
China
Category
Dimensions
Bore Dia. 1 in
Stroke Length 6 1/8 in
Outside Dia. 2 in
Center Hole Dia. 11/16 in
Retracted Height 12.31 in
Plunger Thread Size 1/2"-20
Extended Height 18.44 in
Plunger Dia. 0.75 in
Collar Thread Size 1-3/8"-12
Nominal Stroke Length 6 in
Item Hydraulic Ram
Max. Pressure 10,000 psi
Oil Capacity 4.81 cu. in.
Body Material Steel
Double Acting
Weight Capacity 4 tons
Effective Area 0.79 sq. in.
Cylinder Type High Cycle
Handle No
Effective Push Area 0.79 sq in
Series RD
Nominal Capacity 10 ton
Oil Capacity Push 4.81 cu in
Max. Push Capacity 4 ton
Finish Paint
Type Double-Acting
Description
Hydraulic Ram, Double Acting, High Cycle, Steel, Nominal Capacity 10 ton, Max. Push Capacity 4 ton, Stroke Length 6 1/8 in, Nominal Stroke Length 6 in, Effective Push Area 0.79 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 4.81 cu in, Retracted Height 12.31 in, Extended Height 18.44 in, Outside Dia. 2 in, Plunger Dia. 0.75 in, Plunger Thread Size 1/2 In.-20, Collar Thread Size 1-3/8 In.-12, Center Hole Dia. 11/16 in, Series RD
