( ALL ENGINES ARE NEW, BUT THEY DO NOT COME IN THEIR ORIGINAL BOX. IF YOU HAVE ANY QUESTIONS, PLEASE FEEL FREE TO ASK US. WE ARE HERE TO HELP YOU.)

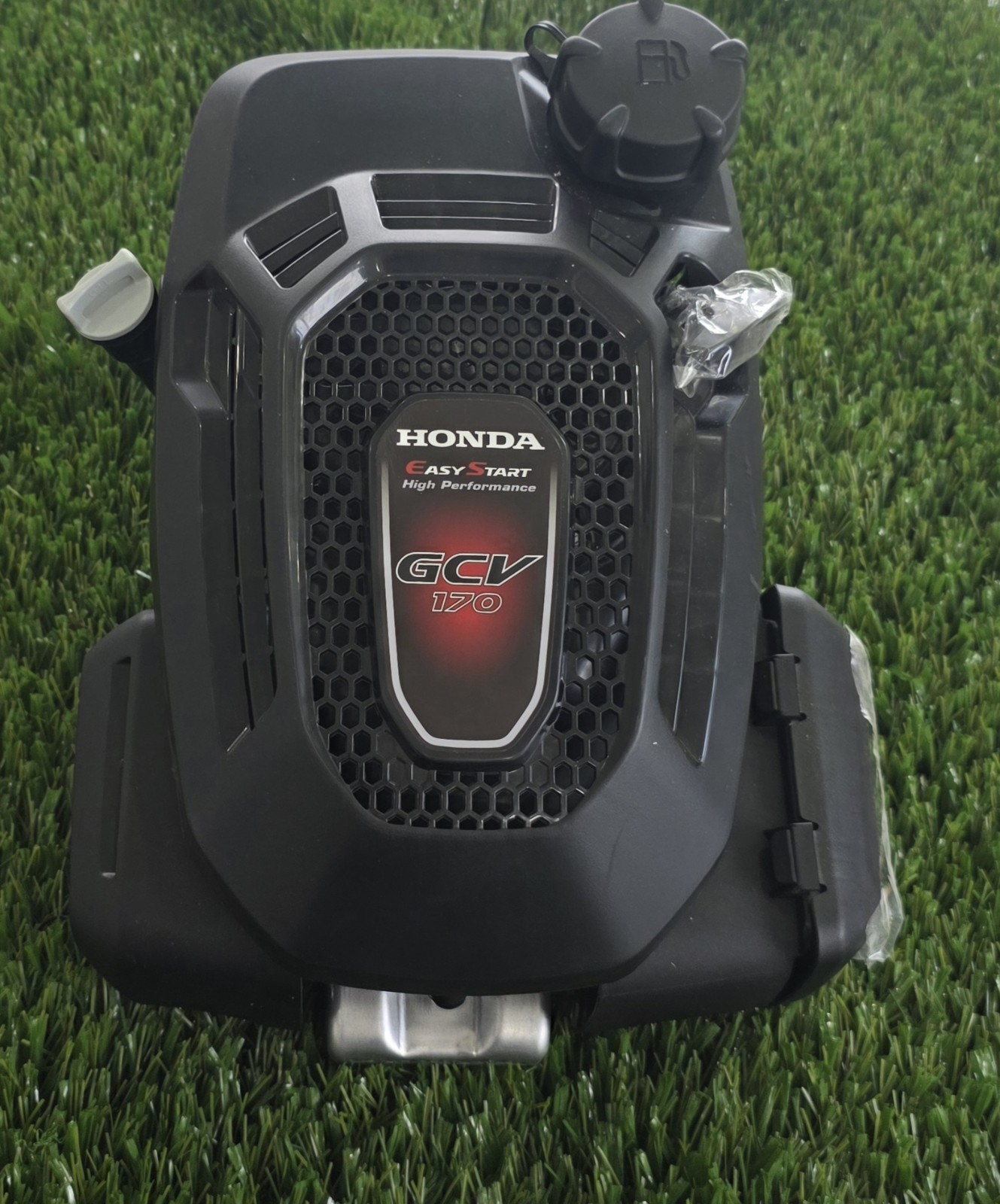

The all-new Honda GCV170 pressure washer engine, a powerful addition to the Honda GC Series, is designed specifically for premium, residential pressure washer applications. The GCV170 delivers more power and more torque as compared to the GCV160 engine it replaces. Innovative Honda design features, including an improved combustion chamber shape, advanced auto choke design, integrated Fuel Off position, and a larger fuel tank opening for easier fueling, make the GCV170 engine convenient to use and operate. The new engine is more streamlined and more compact than other engines in the same class, while the configuration of the Honda GCV170 incorporates the CycloFlow™ design, which strengthens turbulence in the cylinder and provides more stable combustion. The result is greater resistance to lower quality fuel and ease of starting, along with a smoother idle..
Engine Model
GCV170
Engine Type
Air-cooled 4-stroke single cylinder gasoline engine (OHV)
Bore x Stroke (mm)
60 x 59
Total Displacement (cm3)
166
Maximum Power Output* (hp /rpm)
4.8 / 3,600
Maximum Torque (lb ft /rpm)
8.2/ 2,500
Compression Ratio
8.0:1
Carburetor
Horizontal type butterfly valve
Ignition System
Transistorized magneto
Starting System
Recoil
Speed Control System
Mechanical
Choke Type
Automatic
Lubrication System
Forced spray
Spark Plug
NGK : BPR5ES
Governor System
Centrifugal flyweight type
Air Cleaner
Dry (paper filter)
Length x Width x Height** (inches)
16.34 x 12.99 x 13.11
Engine Oil Reserve Capacity (qt)
0.42
Fuel Tank Capacity (gal)
0.24
Fuel
Automotive grade unleaded gasoline
Dry Weight (lbs.)
22.3
