Product Description

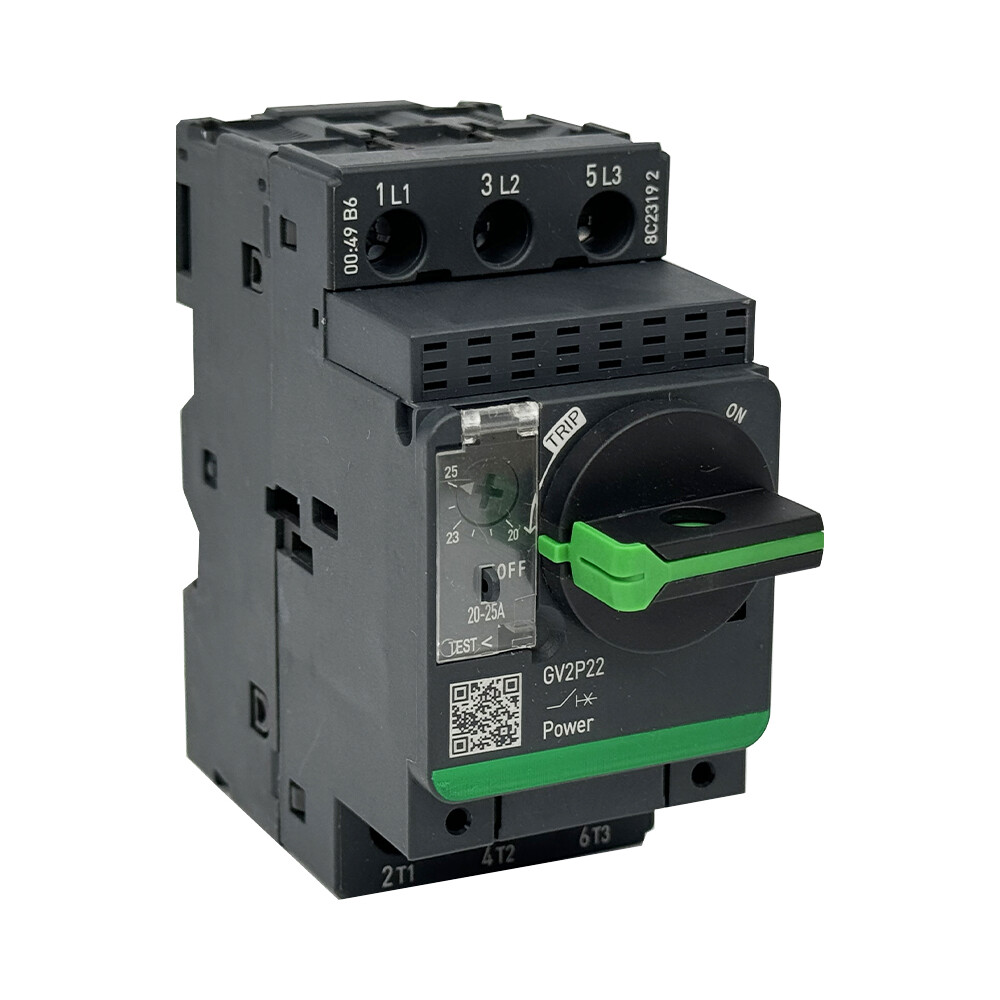

Main Range TeSys Deca Product name TeSys GV2
TeSys Deca Product or component type Motor circuit breaker Device short name GV2P Device application Motor protection Trip unit technology Thermal-magnetic Complementary poles description 3P network type AC Utilisation category Category A conforming to IEC 60947-2
AC-3 conforming to IEC 60947-4-1
AC-3e conforming to IEC 60947-4-1 Network frequency 50/60 Hz conforming to IEC 60947-4-1 Fixing mode 35 mm symmetrical DIN rail: clipped
Panel: screwed (with 2 x M4 screws) Motor power kW 11 kW at 400/415 V AC 50/60 Hz
15 kW at 500 V AC 50/60 Hz Breaking capacity 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
4 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 [Ics] rated service short-circuit breaking capacity 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
50 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
75 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 Control type Rotary handle [In] rated current 25 A Thermal protection adjustment range 20…25 A conforming to IEC 60947-4-1 Magnetic tripping current 327 A [Ith] conventional free air thermal current 25 A conforming to IEC 60947-4-1 [Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2 [Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2 [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2 Phase failure sensitivity Yes conforming to IEC 60947-4-1 Suitability for isolation Yes conforming to IEC 60947-1 § 7-1-6 Power dissipation per pole 2.5 W Mechanical durability 100000 cycles Electrical durability 100000 cycles for AC-3 at 415 V In
100000 cycles for AC-3e at 415 V In Rated duty Continuous conforming to IEC 60947-4-1 Tightening torque 1.7 N.m - on screw clamp terminal Width 45 mm Height 89 mm Depth 97 mm Colour Dark grey
