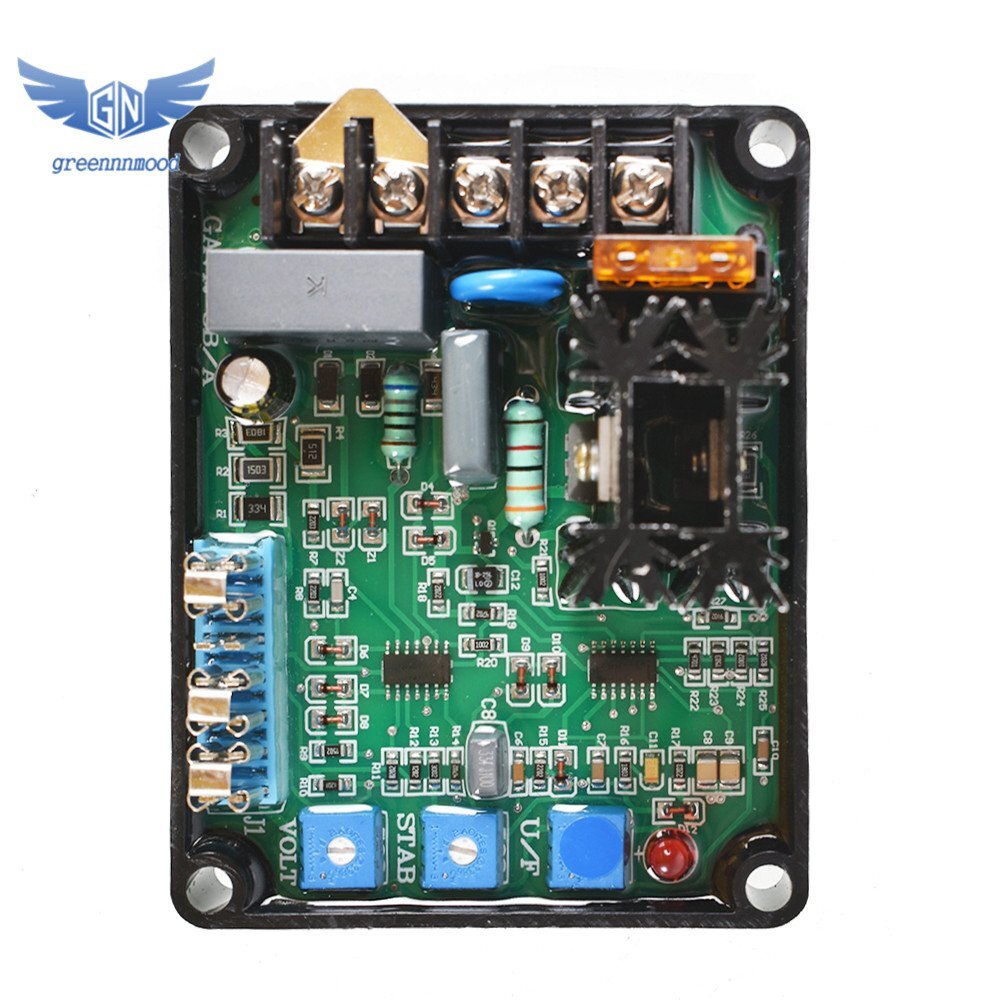

Specification:DESC: Function Description:<+/-1% Reglation2.110/220/400 VAC Programmable InputRugged Compact DesignWith Under Frequency ProtectionSoft Start Voltage RampingEMI SuppressionBuit-in High Capacity 8Amp Fuse This product has undergone rigorous quality testingDurable and easy to install and replaceThe most cost-effective and best after-sales serviceQuality assurance that gives you peace of mindFeatures: NEW Universal GAVR-8A-AVR Generator Automatic Voltage Regulator Module
Specification:
DESC: GAVR-8A
WEIGHT:0.25KG
VOLUME:12×9×6cm
Product Function Description:
<+/-1% Reglation2.110/220/400 VAC Programmable Input
Rugged Compact Design
With Under Frequency Protection
Soft Start Voltage Ramping
EMI Suppression
Buit-in High Capacity 8Amp Fuse
This product has undergone rigorous quality testing
Durable and easy to install and replace
The most cost-effective and best after-sales service
Quality assurance that gives you peace of mind
Features:
Input Voltage: 110/220/400VAC, 1 phase 2 Wire
POWER INPUT
Voltage:100-260V, 1 phase 2 Wire
Output Voltage: Max 90V dc @240V ac input
Current: Continuous 3.7A
Intermittent 5A for 10 secs
Resistance: 15 ohms min 100 ohms Max
Regulation
+/-1.0% RMS with 4% engine governing
Voltage Build-up:Residualvolts at AVR teminal>5VAC
THERMAL DRIFT
0.03% per deg. C change in AVR ambient
SOFT START RAMP TIME
2 seconds
EXTERNAL VOLTAGE ADJUSTMENT
+/-7% with 1 k ohm 1 watt trimmer
UNDER FREQUENCY PROTECTION
Set point: 95% Hz
Slope: 100-300% down to 30 Hz
Max. Dwell:20%volts/S recovery
UNIT POWER DISSIPATION
8 watts maximum
Thermal. Drift:0.03% per °C chage in AVR ambient
Under Frequency:60Hz system presets knee point at 55Hz
50Hz system presets knee point at 45Hz
Operating Temperature:-40°C to + 60°C
Storage Temperature:-40°C to + 85°C
Relative Humidity:<95%
Package Includes:
1 × GAVR-8A Automatic Voltage Regulator
1 × Product Instructions
