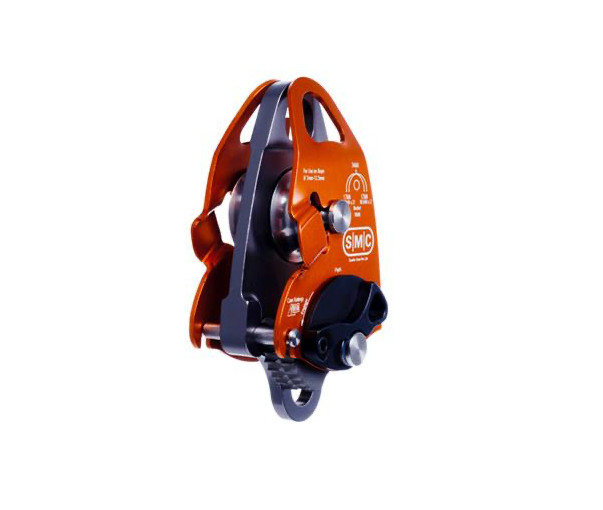

New SMC Advance Tech HX Pulley - P/N SM154900N:
$160.00
TheSMC Advance Tech HX Pulley supports rope diameters from 7 to 12.5 mm. This pulleyis ideal for all rescue applications where a small mechanical advantage system is being used. The HX is a double pulley with an integrated cam that provides immediate progress capture. It is made of high quality aluminum and anodized to help prevent corrosion. The stainless steel pins retain the rope when a rigged system is pre-packed and it weighs 9.5 ounces.
Key Features:
- Made from high quality aluminum
- Anodized to help prevent corrosion
- Supports rope diameters from 7 mm up to 12.5 mm
- Stainless steel pins retain the rope when a rigged system is pre-packed
- Made in the USA
Specifications:
- Color:Orange/Grey
- Type:Double Pulley-Capture
- MBS:34 kN (7644 lbf)
- Weight:9.5 oz (270 g)
- Length:5.08 in. (12.9 cm)
- Width:2.74in. (6.9 cm)
- Height:1.97in. (5.0 cm)
- Becket Strength:18 kN
- Axle:Ball Bearing
- Sheave:1.37in. Aluminum
- Tread:1.00in.
- Max Rope Size:12.5 mm
- Material:Anodized Aluminum
- NFPA 1983 (2012), T compliant
- Berry compliant
