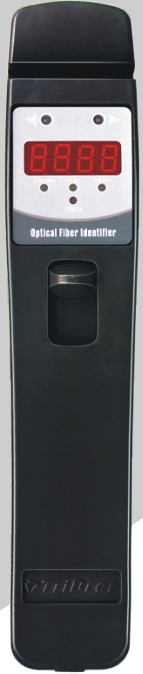

Live Fiber Identifier
AFI400
Fast find fiber in a mass
Indicate signal directions in fiber
Indicate Live or dark fiber
Detect 270Hz, 1kHz, 2kHz from laser source
Build in VFL 1mW or 10mW (Optional)
Suitable for 0.25, 0.9, 2.0, 3.0mm fiber, no need to change adapter
One-year warranty and Three-year recommended calibration interval
SPECIFICATIONS
Model AFI 400
Wavelength Range 800 to 1700nm (SM)
Recognizable signal type* CW, 2kHz, 1kHz, 270Hz 10%
Detector Type InGaAs 2pcs
Fiber Type 0.9, 0.25, 2.0, 3.0 mm fiber
Sensitivity +10 ~ -50dBm
Accuracy * +10dB to -30 dBm (Continuous Wave) /+10dB to -25 dBm (Modulated Signal)
LED Indicator Signal direction; signal frequency (2kHz/1kHz/270Hz); low battery
Visual Fault Locator No 1mW 10mW
VFL Connector 2.5mm universal connector
Power Supply AA * 2
* at 20 3 , indoor, 1550nm wavelength, 0.9mm fiber, with white coat, 270Hz, error < 5%,
* 0.25, 2.0, 3.0mm fiber, the performance at continuous wave will be lower
* 1KHz, 2KHz, the performance at modulated signal will be lower
* at 1310nm wavelength, the performance will be lower
GENERAL SPECIFICATIONS
Size(H*W*D) 230mm * 45mm * 45mm
Weight About 200g
Storage Temperature -20 -- +60 , < 90%RH
Operating Temperature -10 -- +50 , < 90%RH
