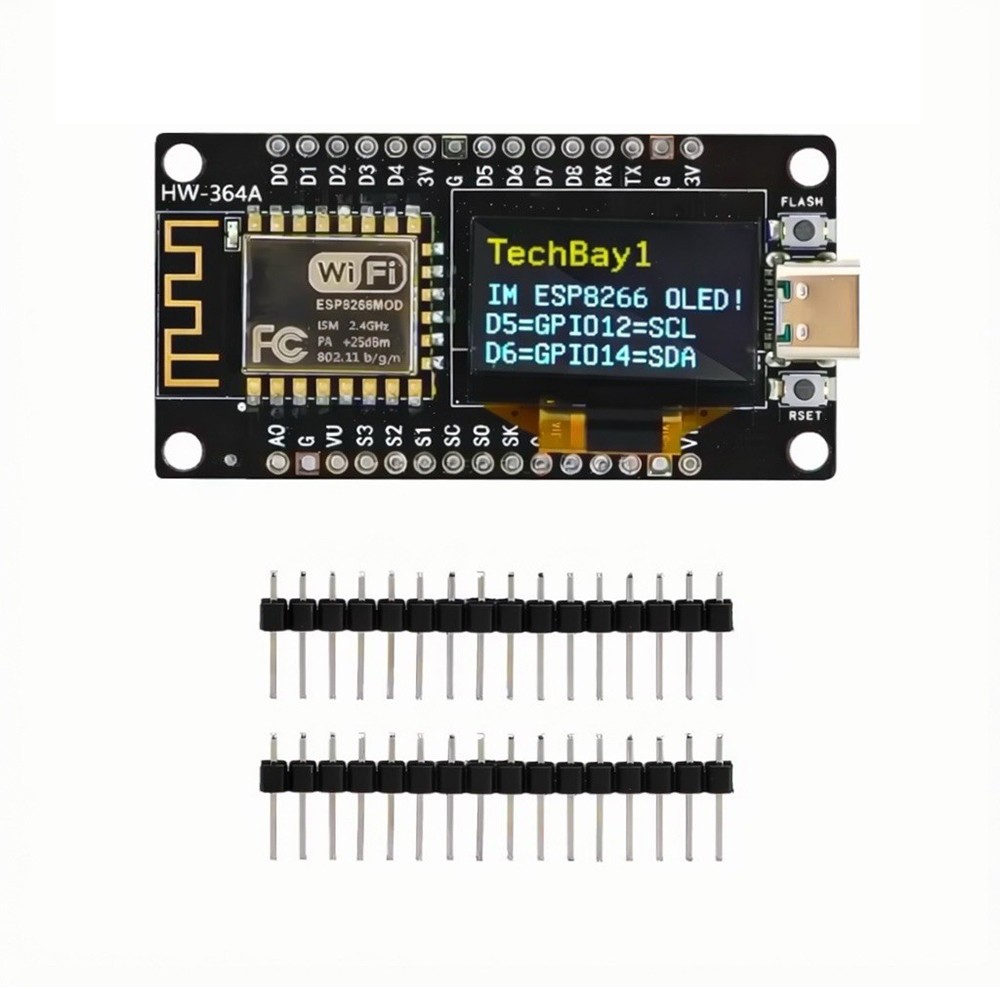

NodeMCU ESP8266 Dev Board 0.96\'\' OLED Display for ESP8266 IDE Lot 1-100 PCS For Sale

• 2026 Men Striped Button Down T Shirts Grandad Summer Short Sleeve Casual Tops

  14.99 USD

  Free shipping

• 1-100 Pack Magnetic Card Holder 35 55 75 100 130 180 pt One-Touch UV Protection

  7.99 USD

  Free shipping

• Metal Hanging Sphere Ball LED Fairy String Lights Christmas Outdoor Xmas Tree

  20.99 USD

  Free shipping

• One Magnetic Trading Card Protector Ultra Metal Touch for PRO 35/130PT Holder

  5.99 USD

  Free shipping

• 2025 Men's Summer Button Pocket Sports Polo Shirt Short Sleeve T-Shirt

  16.99 USD

  Free shipping

• Reflective Service Dog Vest Harness, Woven Nylon with Adjustable Straps XS-XXL

  16.95 USD

  Free shipping

• 2026 New Version Ionic Shaping Vest, Comfortable and Breathable Ice-Silk Fabric

  8.99 USD

  Free shipping

• 10 PCS Reading Glasses for Mens Womens Readers All Powers New Eyeglasses

  15.99 USD

  Free shipping

• 25Pack/100Pack 35 100 130 180Pt Magnetic Card Holders One-Touch For Trading Card

  7.99 USD

  Free shipping

• Mens Polo Shirts Short Sleeve Regular Fit Casual Work Golf Designer T Shirt Tops

  16.99 USD

  Free shipping

• For PSA/CGC/BGS Graded Cards Metal Bumper Magnetic Aluminum Slab Protector Case

  12.99 USD

  Free shipping

• 2026 Men 2 Set Short Sleeve Button Shirt Shorts Suit Tops+Shorts T Shirts Casual

  29.99 USD

  Free shipping

• For PSA,CGC,BGS,Slab Graded Trading Cards Protector Holder Magnetic Case Display

  14.99 USD

  Free shipping

• Rooster Hen Chicken Statue Yard Art Decoration Lifelike Sculpture Garden Decor

  11.88 USD

  Free shipping

• Pro Barefoot Shoes Healthy & Non-Slip Footwear Unisex Suitable Outdoor Shoe

  27.99 USD

  Free shipping

• 2Pcs 6 Star Wenge Wood Carbon Fiber Table Tennis Racket Set Ping Pong Paddle Bat

  26.99 USD

  Free shipping

Product Description

Features:

ESP8266 32-Bit WiFi Microcontroller

Built around the ESP8266 NodeMCU module featuring a Tensilica Xtensa LX106 32-bit RISC CPU, designed for reliable wireless IoT and embedded applications.

80 MHz Clock Speed

Efficient processing for:

• IoT devices

• Network monitoring

• Sensor data collection

• Status and debug displays

• Smart control projects

Integrated 0.96″ OLED Display

Onboard OLED screen eliminates the need for external wiring or breadboards:

• Size: 0.96 inch

• Resolution: 128 × 64

• Driver IC: SSD1306

• Interface: I²C

• Color: Yellow / Blue

• Self-emitting (no backlight, ultra-low power)

Pre-Wired OLED I²C Interface

OLED display is internally connected using I²C:

• SDA: GPIO14 (D5)

• SCL: GPIO12 (D6)

No soldering or jumper wires required.

Built-In 2.4 GHz WiFi

• IEEE 802.11 b/g/n

• Station & SoftAP modes

• Ideal for IoT dashboards, network status, and wireless data display

USB-to-Serial via CH340G

• Onboard USB-TTL converter

• Simple programming and power via USB

• Plug-and-play after CH340 driver installation

USB Type-C Interface

Features a modern USB-C port for:

• Reversible plug orientation

• Better durability

• Compatibility with modern laptops and chargers

• Stable data transfer during programming

Memory Configuration

• Flash memory: 4 MB

• SRAM: 64 KB

Supports web servers, MQTT, OTA updates, and data display applications.

Wide Power Input Support

• Logic voltage: 3.3 V

• Input voltage: 7–12 V

• USB powered or external supply

I/O Capability

• 16 Digital I/O pins

• 1 Analog input (ADC)

• SPI, I²C, UART interfaces

• Suitable for sensors, displays, relays, and control modules

Compact & Breadboard-Friendly Design

• Board size: approx. 2.44”x1.22”

• Clearly labeled pins

• Small form factor for embedded installations

Arduino IDE Compatible

Fully programmable using:

• Arduino IDE (ESP8266 core)

• Large library and example ecosystem

Typical Applications

• Network connection status display

• IoT monitoring dashboards

• Weather stations

• Debugging output screens

• Power and system status indicators

• Clocks, counters, and information panels

Package Includes

• 1 × ESP8266 0.96″ OLED Development Board

• 2 × Male header pin strip
