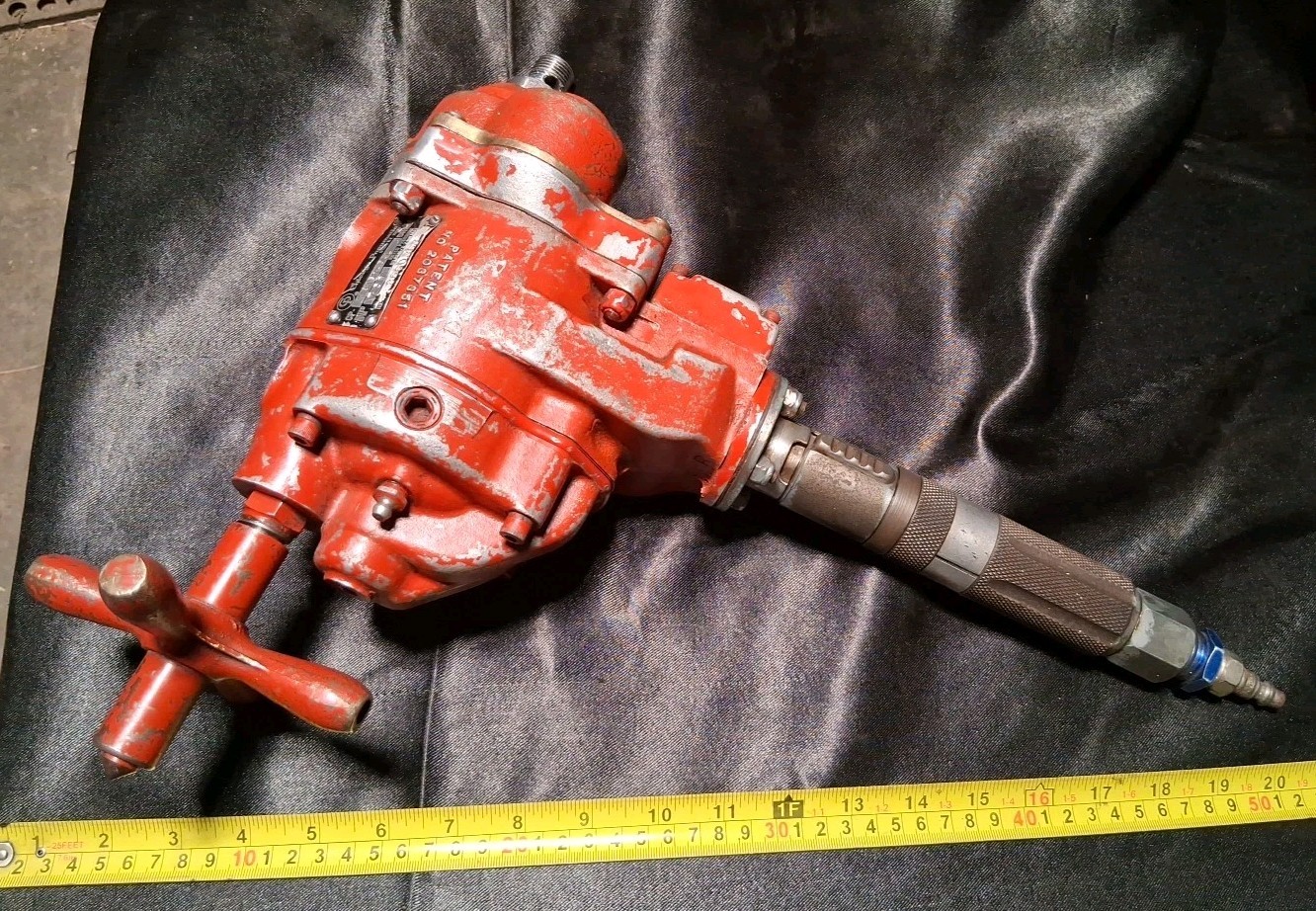

Vintage Chicago Pneumatic CP-315RAFAL 750 RPM Reversible Heavy-Duty Pneumatic Drill
WORKS GREAT, PHOTOS OF ACTUAL ITEM
Up for sale is a classic, mid 60S Chicago Pneumatic CP-315RAFAL reversible air drill – a true industrial workhorse from the era of heavy-duty pneumatic tools. This example dates to 1963 based on the hand-carved marking January 1963, and comes from a former military engineer's estate. Tools like this were staples in aviation maintenance shops for drilling, reaming, tapping, and tube rolling on aircraft structures, hydraulic lines, and components – especially during the post-WWII expansion of fixed-wing and helicopter fleets.
Key Specs & Features :
Model: CP-315RAFAL
Rated Free Speed: 750 RPM (a rare higher-speed variant over common 350 RPM models!)
Rated Pressure: 90 PSIG
Reversible throttle for forward/reverse operation
Governor-controlled vane motor for consistent power and air efficiency under load
Heavy-duty build: ~1.2 HP motor, approx. 31–35 lbs (heavy for stability in tough jobs)
Overall length: ~15–16 inches
Spindle: Threaded (external threads with shoulder/hex nut – ideal for mounting chucks or adapters)
Capacities: Drilling up to 7/8" in steel or 1-1/4" in aluminum, reaming 5/8", tapping 3/4", tube rolling 5/8"
Air inlet: 1/2" NPT
Made in Utica, NY, Patent No. 2067351, Serial No. 8660363
Condition:
Vintage patina shows honest industrial use with scratches and chips consistent with its years of military maintenance work.
Fully Tested and running strong – spins smoothly in both forward and reverse directions with good power No issues with throttle, motor, or spindle.
Complete and mechanically sound although no chuck included.
This isn't a modern lightweight air drill – it's a beefy, no-nonsense tool built for serious work in rail, oilfield, refinery, construction, or aviation maintenance.
Perfect for:
-Vintage tool collectors
-Aviation/militaria enthusiasts
-Industrial shops needing a reliable heavy hitter
Photos are of actual item.
Questions? Feel free to ask – happy to provide more photos or details. Thanks for looking and offer with confidence!
