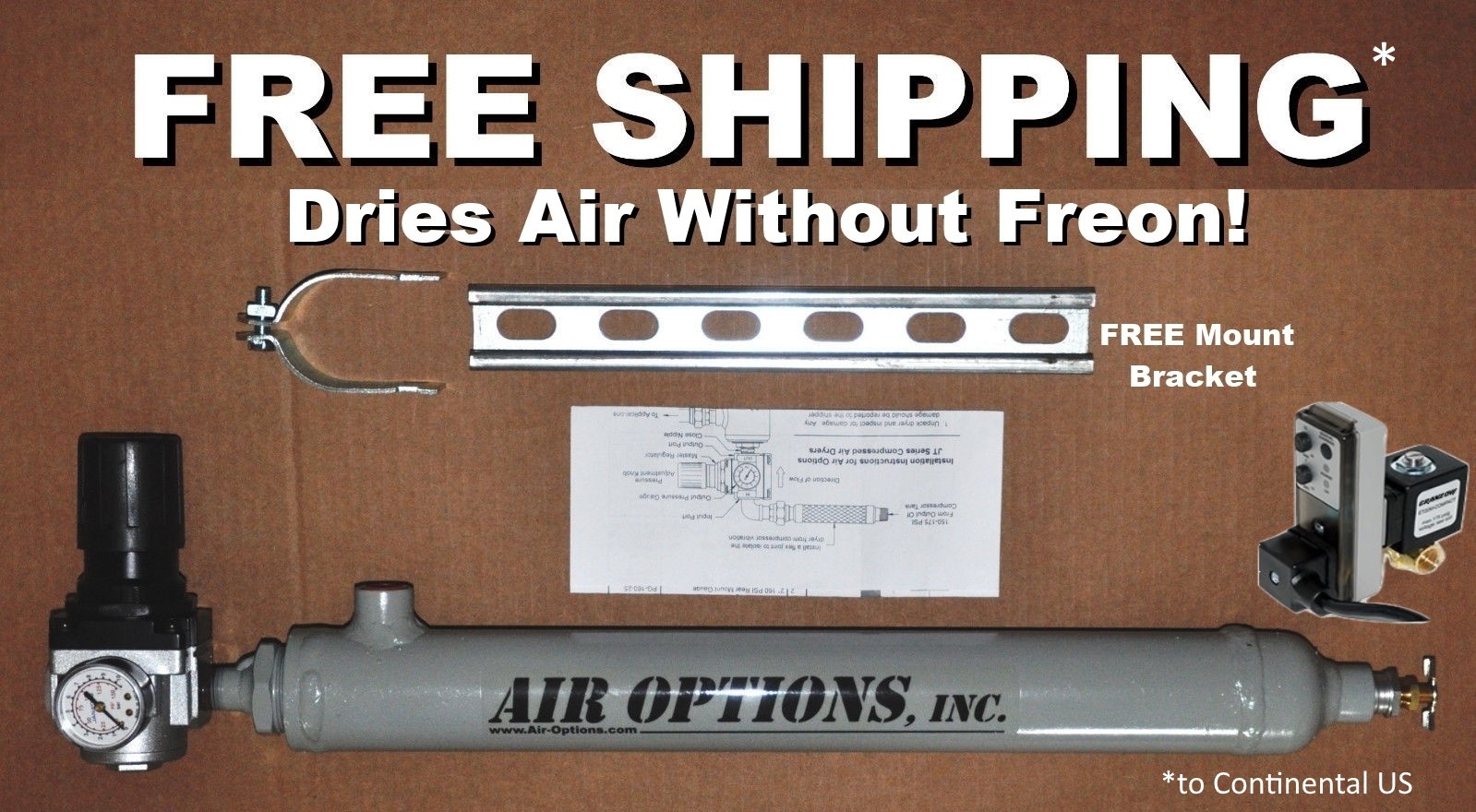

JT Series Refrigerated Air Compressor Dryer with Automatic DRAIN
For 3 to 5 HP 2-Stage Air Compressors
Clean, dry air for 2-Stage air compressors.
No Filters -No Freon -No Maintenance
Check out our response! Here's a sample:
Suitable For:ALL General Purpose Air Applications: Auto Repair - Paint Shops - Sand Blasting - Plasma Cutters -
CNC Equipment - Powder Coating - Machine Shops - Wood Shops - Dry Cleaners - and MORE!SPECIFICATIONS:
- For 3-5 HP 2-Stage Piston Compressors
- Up to 20 SCFM max air flow
- Compressor Must Be capable of 175 psi output pressure
- 200 Max PSI
- 150 deg. F Max Temperature
- Air Inlet Size: 1/2" F NPT
- Dimensions: 25.5" x 3.5" x 2.5"
- Weight: 12 lbs
- For All General Purpose Air Applications
Carries a 5 Yr Limited Warranty with a Life Span of 20 - 30 Years!Note:** Please contact us before requesting a return. **We can assist in correcting issues causing performance problems.Returns of improperly-installed or damaged dryers may incur a 20% to 50% refurbishing fee.QUESTIONS? CONTACT US - We'll be happy to help, before or after purchase!
Do I have a 2-Stage Air Compressor?If your compressor has an output pressure of at least 175 psi, chances are it is a 2-Stage.To be certain, SEE image above, or CONTACT us, we're happy to help!Why only 2-Stage Compressors? Simply put, the more air expansion, the drier the air. 175 psi input reduced to an operating pressure of 90 to 125 psi chills the air enough to condense out up to 98% of water. Lower input pressures remove less water.*** NOTE: Photo is of a similar model. ***
