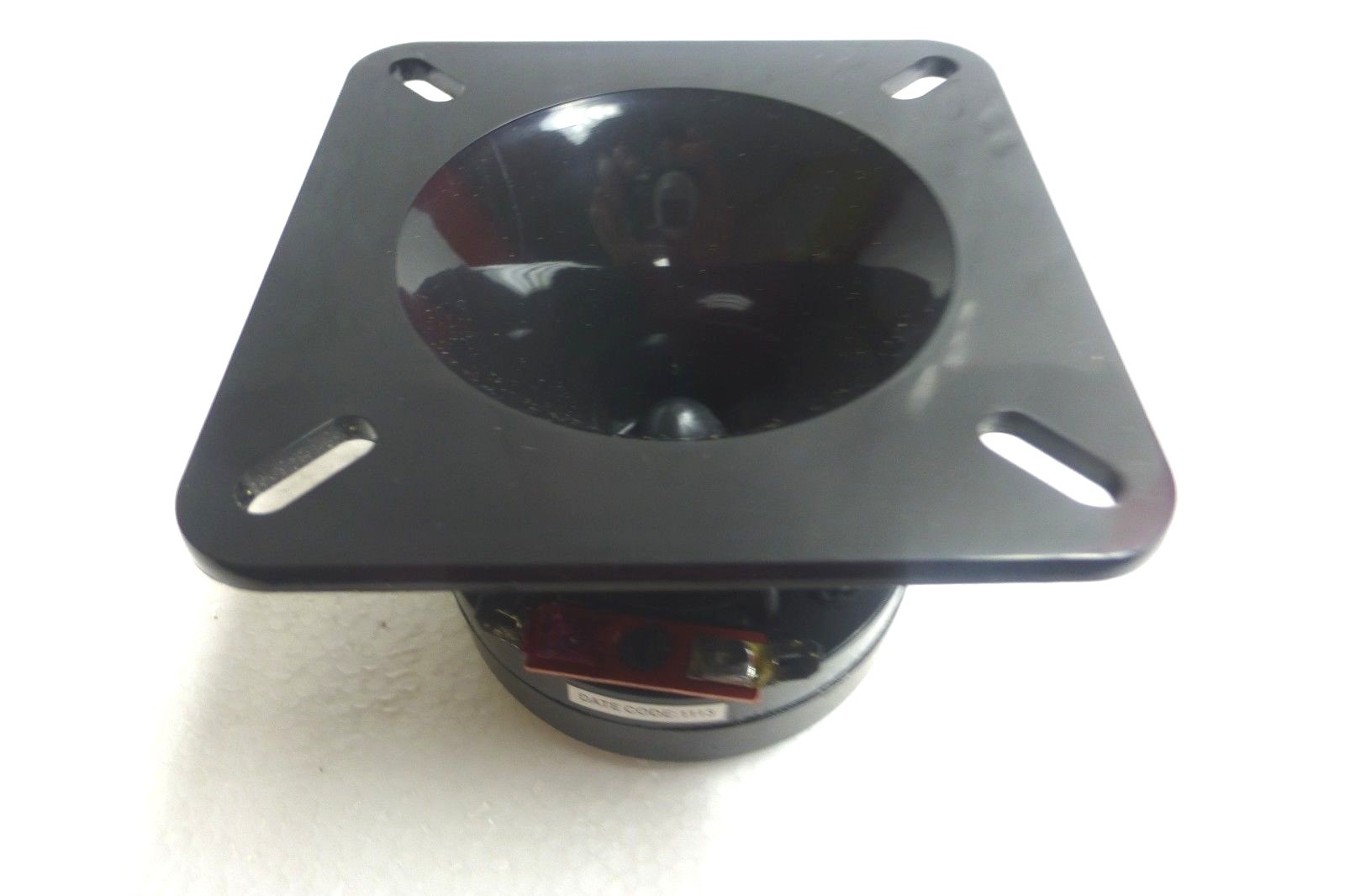

This Is An Aftermarket Hi-Frequency Tweeter Driver Horn
For
Roland KC350 & KC300
This is a high output high frequency integrated horn and driver. The driver is operating in a true compression mode. The horn is a small format square design that allows the Driver Horn Tweeter to be used in very small enclosure designs. This is an excellent choice for two way designs where the low frequency transducer is an 8 inch or 10 inch loudspeaker. This Tweeter features a sensitivity rating of 101dB with a one watt input, measured at one meter. This high sensitivity make the integrated horn/driver a very good device when used in applications where high acoustic output is specified but the overall loudspeaker system must be very small.Applications include retail spaces, pub background systems and restaurant designs. The physical mouth of the horn is a 3.5 inch square design but the acoustic geometry is circular. This allows the Tweeter to radiate a symmetrical pattern in both its horizontal and vertical axis. This is constructed from a very rugged glass reinforced ABS resin that offers both a high degree of structural support but also excellent mechanical damping for the device.
Specifications:
- Diaphragm Diameter: 1.0 inch (25.4mm).
- Nominal Impedance: 8 Ohm
- Ferro Fluid
- Voice Coil DC Resistance: 6.7 Ohm
- Power Handling : 80 Watt Peak
- Sound Pressure Level : (1W at 1M) 105 dB
- Magnet Ferrite
- Diaphragm Material: Phenolic
- Size: 3.5 x 3.5\" x 2.5\" Deep
- Horn Material: A.B.S Black Plastic
- Nominal Coverage Angle -6 dB 80°
- Cutoff frequency: 2 kHz
- Baffle cutout dimension à 90 mm à 3.54\"
- Net Weight : 0.45kg (1.0 lbs).
- Shipping Weight : 0.68kg (1.5 lbs).
