Industrial grade springs for increased spring performance and lifetime
Industrial grade steel alloy construction withstands even the most demanding of applications
Nickel plated piston rod eliminates corrosion and rust
Base mounting holes, collar threads and plunger threads
3/8" NPTF female coupler and dust cap
• Superior Quality Construction: Engineered for exceptional performance and reliability.
• Unmatched Affordability: The most cost-effective option in its class.
• Built to Endure: Designed as a long-term investment, not a disposable product.
• Future-Proof Rebuild Capability: Easily serviceable and upgradable for extended lifespan.

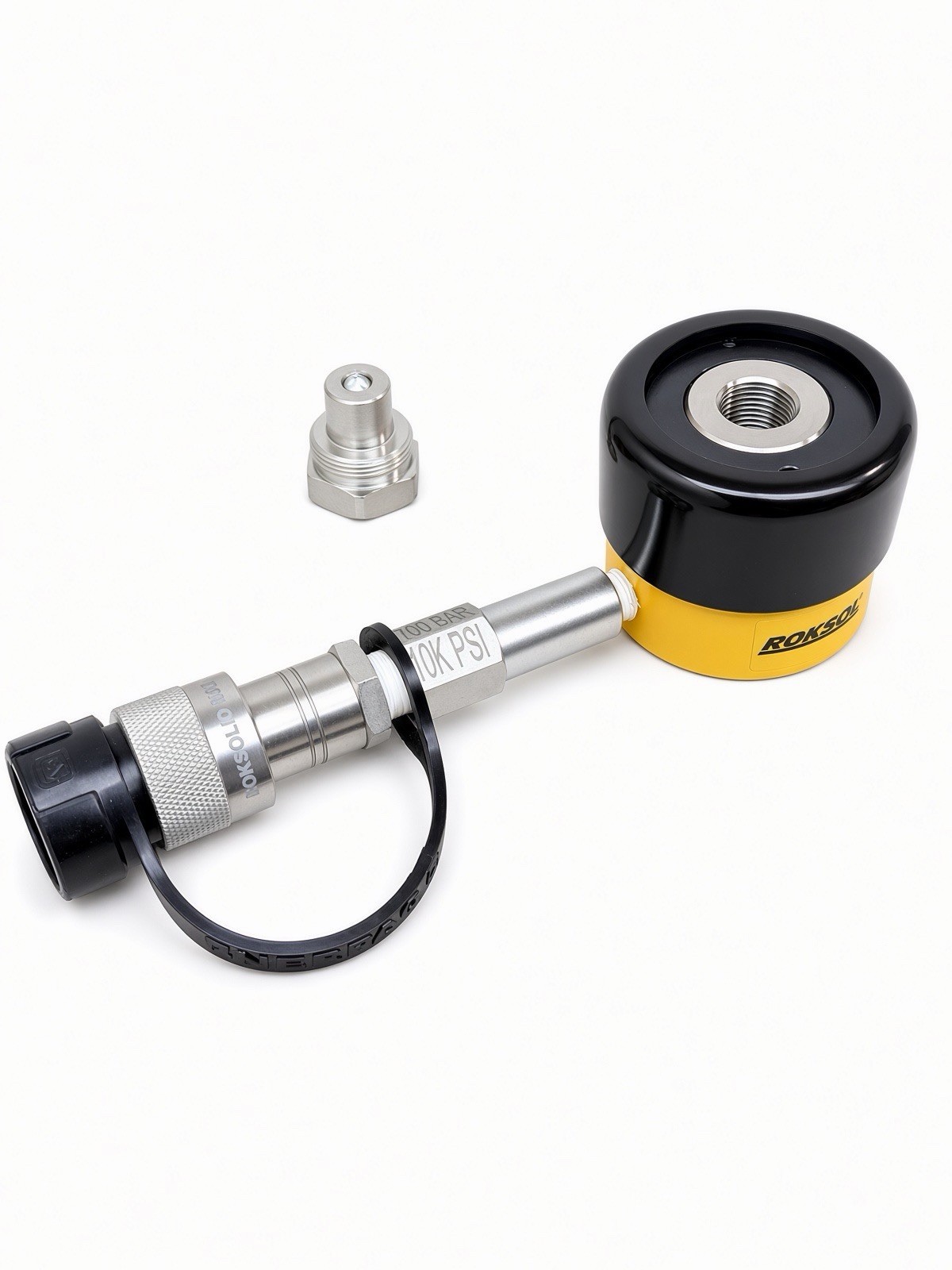

General Purpose Hydraulic Ram,
Single Acting,
Hollow Plunger,
Steel,
Nominal Capacity 12 ton,
Max. Push Capacity 12 ton,
Stroke Length 5/16 in,
Nominal Stroke Length 5/16 in,
Effective Push Area 2.76 sq in,
Max. Pressure 10,000 psi,
Oil Capacity Push 0.86 cu in,
Retracted Height 2.49 in,
Extended Height 2.80 in,
Outside Dia. 2.75 in,
Plunger Dia. 1.38 in,
Plunger Thread Size 3/4 In.-16,
Collar Thread Size 2-3/4 In.-16,
Base Bolt Circle Dia. 2 in,
Base Mounting Thread Size 5/16 In.-18
