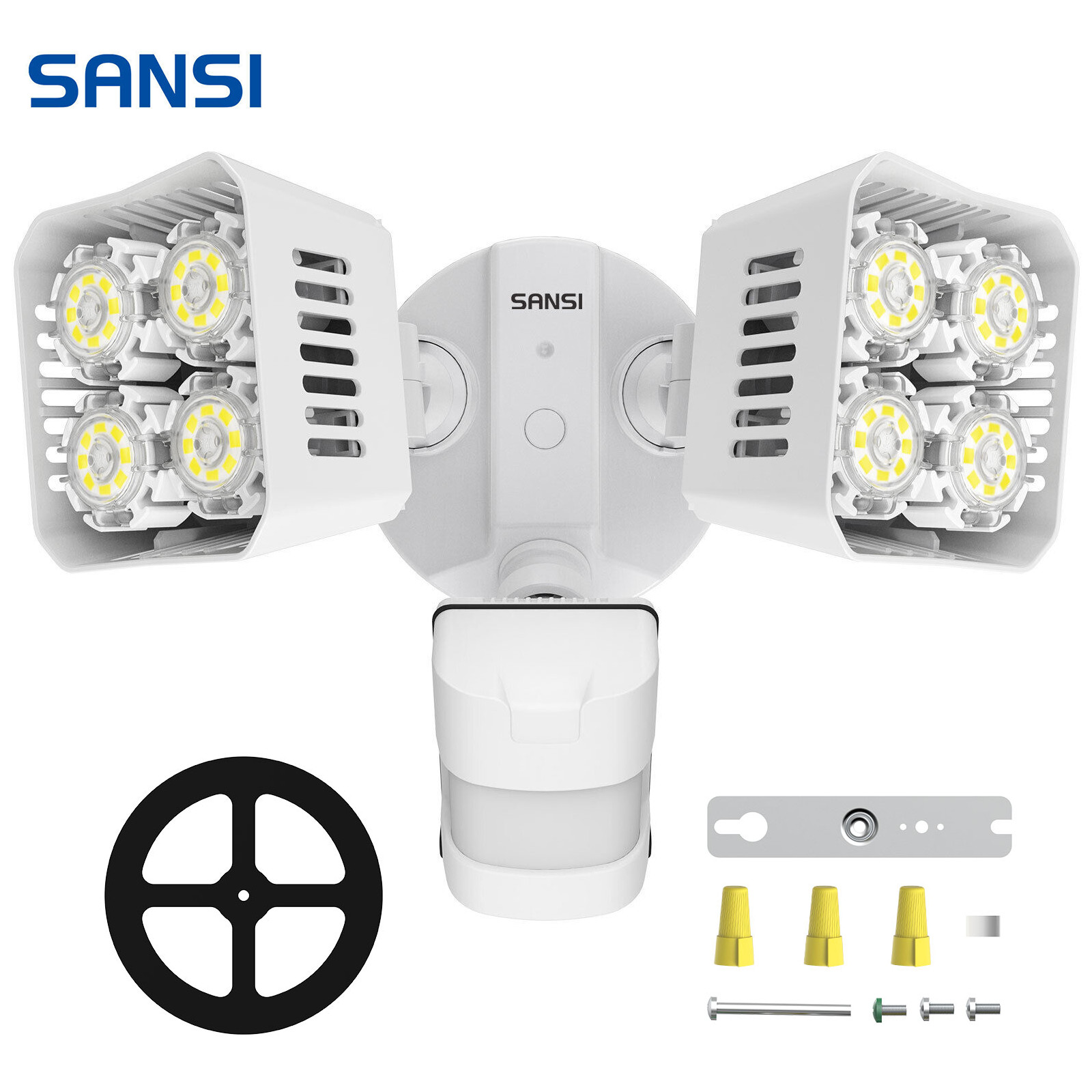

SANSI LED Security Lights Motion Sensor 3400lm 30W Outdoor Garage Floodlight For Sale

30W 3400lumen LED Security Light:

Smart IC

• SANSI Independent design
• Auto power adjustment
• More safety

PC+Ceramics

• High light efficiency
• Super-Long lifespan
• Better heat dissipation

Sensor Sensitivity

• Time:1-10 minutes
• Range:0-72 ft

3 Working Modes for Your Needs

TEST MODE

Set-up:

Put the \"Time\" switch at TEST position.

Function:

• When people or any other living objects pass through the induction zone, the light turns on for 5 seconds automatically. Test Mode helps you to check whether the motion sensor can work properly.
• Test Mode can work at daytime and night.

MOTION SENSOR (AUTO) MODE

Set-up:

Put the \"Time\" switch at 1, 5, or 10 minutes position.

Function:

• When people or any other living objects pass through the induction zone, the light will be on automatically for 1, 5, 10 minutes chosen.
• Motion Sensor Auto Mode only works at night.

MANUAL MODE

Set-up:

Put the \"Time\" switch at 1, 5, or 10 minutes position. Flip the light switch off for one second then back on to toggle between Auto and Manual mode.

Function:

• Under Manual Mode, the light will work at night for 4-6 hours.
• Manual Mode only works at night, because daylight will return the sensor to Auto Mode.

ATTENTEION

• Make sure that there are no infrared or ambient lights pointing towards the motion sensor.
• Make sure that there are no other influence factors affect the performance of light.
• Be sure to disconnect the power before you install the light.
• Be sure to mount it in dry location, humid environment is not good for light\'s lifespan.

SANSI LED Security Motion Sensor Outdoor Lights, 30W (250W Incandescent Equivalent) 3400lm, 5000K Daylight, Waterproof Flood LightAUTO(Motion Sensor Mode), Detect ambient motion to turn on the light. The max. detection range is 72 FT and the detection angle is 120°.On-Time Mode, Manual control lights keep ON by switch

• Bring Safety to Your Home: SANSI LED Security Lights were built in high quality infrared motion sensor and can turn on automatically when motion is detected.. The sensing angle and coverage can up to 180° and max 50ft.
• Super Bright: The outdoor motion sensor flood lights produce up to 3400lm high brightness with only 30W, provide efficient lighting for your home. It\'s brighter than most motion sensor outdoor lights in the market.
• ETL Listed & Waterproof: Unique hollow housing and imported premium led lens technology ensures excellent heat dissipation.This waterproof motion lights are perfect for outdoor use and ETL listed for quality assurance.
• Easy to install: All light and installation kits are included in the package. It\'s easy and fast to install by yourself. The recommended mounting height is in 3.2-13.1ft. SANSI LED security motion outdoor lights provide 50,000 hrs servicetime (with 3 hours/day).

Installation Guide

1. It isAC poweredand required tobe hardwiredto the junction box.(NO Battery, No Solar)
2. DO NOT install the cameraon the opposite side of this security light because infrared rays will cause the security light to not work properly. If you still want it to be installed, please avoid infrared directly irradiated or reflection on the sensor.
3. Recommendwall mounted, but also can behorizontally mountedunder eave or soffit. Recommended installation height is3.2~13.1 ft.
4. If you mount this lightover 8 ft, pleaseadjust the angle of the sensorto enlarge the sensing range, otherwise, the performance of light will be affected.
5. If you want toinstall two security lights in the same location, thedistance between the two lightsshould be kept at least16.4ft.
6. Before installation,please read the user manualcarefully and check if the light is in good condition or if some parts of the installation kit are missing. Please ask for help from us if you meet problems in installation.
