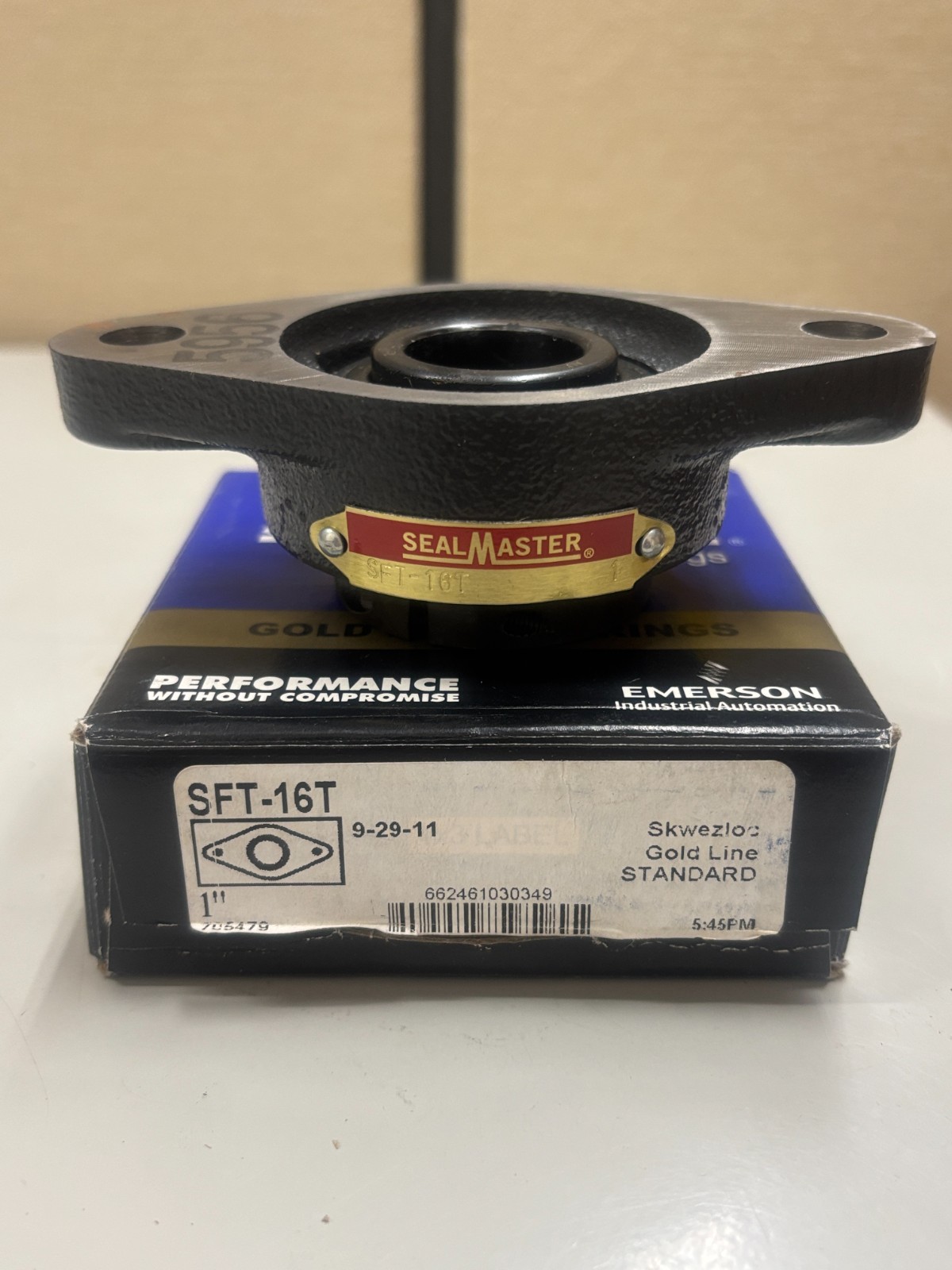

SealMaster SFT-16T1" Mounted Ball Bearing, Cast Iron Two Bolt Flange, 52100 Bearing Steel, Black Oxide Coated, Concentric Lock, Felt Labyrinth Seal
bility to Relubricate
Yes
Bearing Insert Finish
Black Oxide
Bearing Insert Material
52100 Bearing Steel
Bearing Type
Standard Duty
Bolt Size (in)
7/16
Bolt Spacing (in)
3.889
Bore Diameter (in)
1
Bore Shape
Straight
Cage Material
PPS - Polyphenylene Sulfide
Cage Type
Land Riding Retainer
Dynamic Load Rating (lb)
2801
End Cap
No
Fixed vs. Expansion
Fixed
Foot Height (in)
0.53
Grease Fitting Thread Size
1/4-28
Height
3.94
Housing
Flange, Two Bolt
Housing Coating
Powder Coated
Housing Color
Black
Housing Construction
One Piece
Housing Material
Cast Iron
Housing Style
Flange Block
Inner Race Heat Treat Method
Zone-Hardened
Inner Ring OD (in)
1.375
Insert
2-1T
Length
4
Length Through Bore (in)
1.48
Locking Collar Outside Diameter (in)
1.98
Lubricant
Lithium Complex NLGI 2 Grease
Max Operating Temperature (F)
220
Maximum Speed (RPM)
9000
Misalignment Capability
±2.0° Misalignment - Static Only
Misalignment Type
Static Only
Outer Ring Land Profile
Standard
Overall Height (in)
1.498
Overall Length (in)
4.88
Overall Width (in)
2.75
Pilot Configuration
No Pilot
Radial Clearance
Standard
Rolling element
Ball Bearing
Seal
Felt Labyrinth Seal
Setscrew Torque (in-lbs)
70
Shaft Locking Type
Concentric
Size Code
2-015
Static Load Rating (lb)
1651
Vibration Frequency Fundamental Train
0.007
Vibration Frequency Inner Ring Defect
0.099
Vibration Frequency Outer Ring Defect
0.068
Vibration Frequency Roller Spin
0.044
Width
1.5
