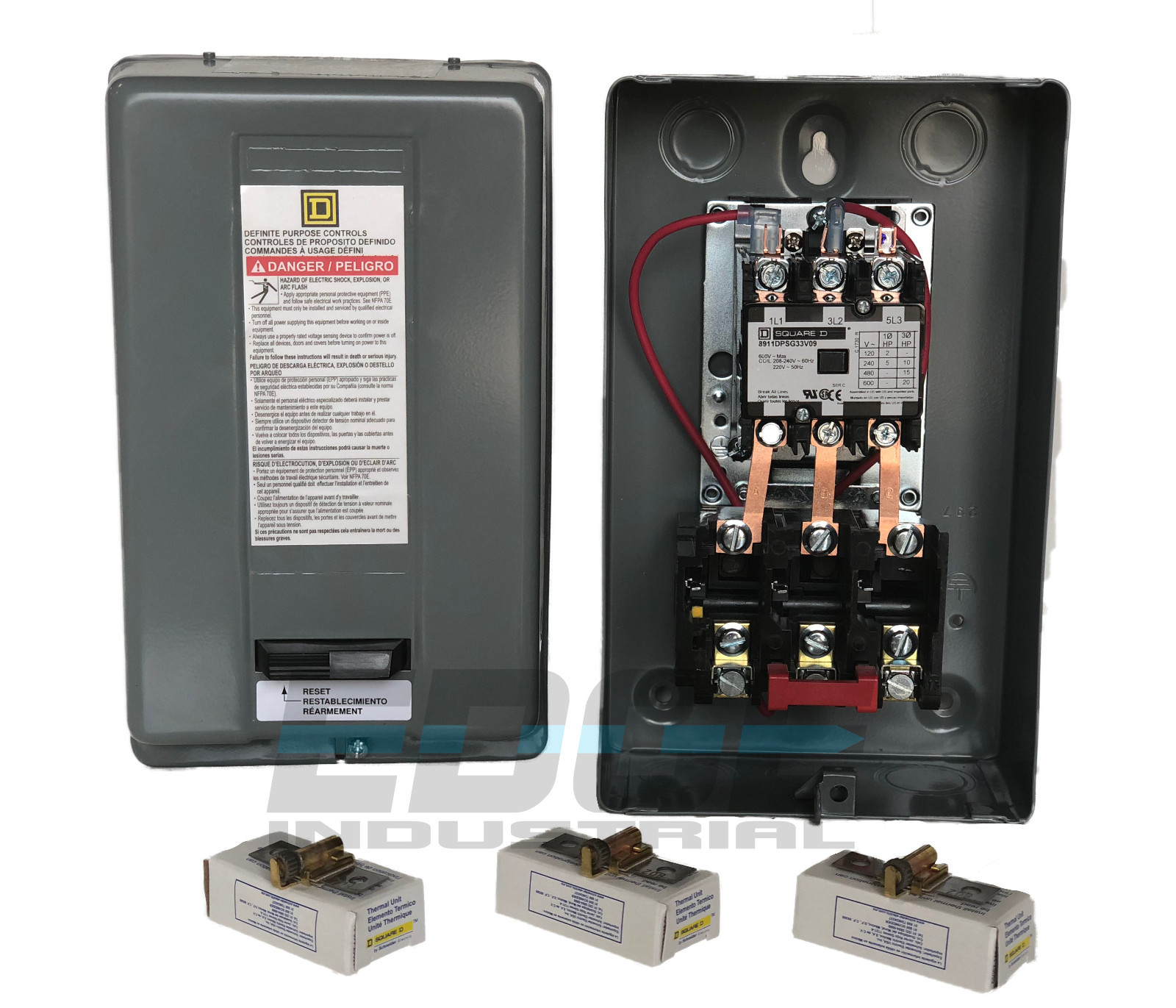

THIS IS A BRAND NEW IN THE BOX SQUARE D DEFINITE PURPOSEMAGNETIC MOTOR STARTER W/ 3 THERMALOVERLOADS/HEATERS.
THIS MAGNETIC STARTER IS A10 HP 3 PHASE 230 VOLT W/ A30 AMP CONTACTOR. THE MAG COMES IN A NEMA 1 SIZE ENCLOSURE AND INCLUDES 3 B-56 HEATER ELEMENTS/OVERLOADS.
THIS STARTER IS SPECIFICALLY DESIGNED TO BE USED ON 10HP 3PH MOTORS THAT DRAW 27FLA AT 230V OR LESS. IF YOUR MOTOR DRAW 28FLA OR IS RUNNING OFF OF 208V, YOU WOULD REQUIRE A 40AMP CONTACTOR, PART NUMBER 8911DPSG43V09.
HP: 10
VOLTAGE: 230 VAC (NOT SUITED FOR 208V)
AMPS: 30 AMP CONTACTOR
PHASE: THREE ( 3 pole)
ENCLOSURE: NEMA SIZE 1
HEATER: B-56 (MESSAGE ME IF YOU REQUIRE A DIFFERENT SIZE)
THE MODEL # IS 8911DPSG33V09 / 8911DPSO33V09
