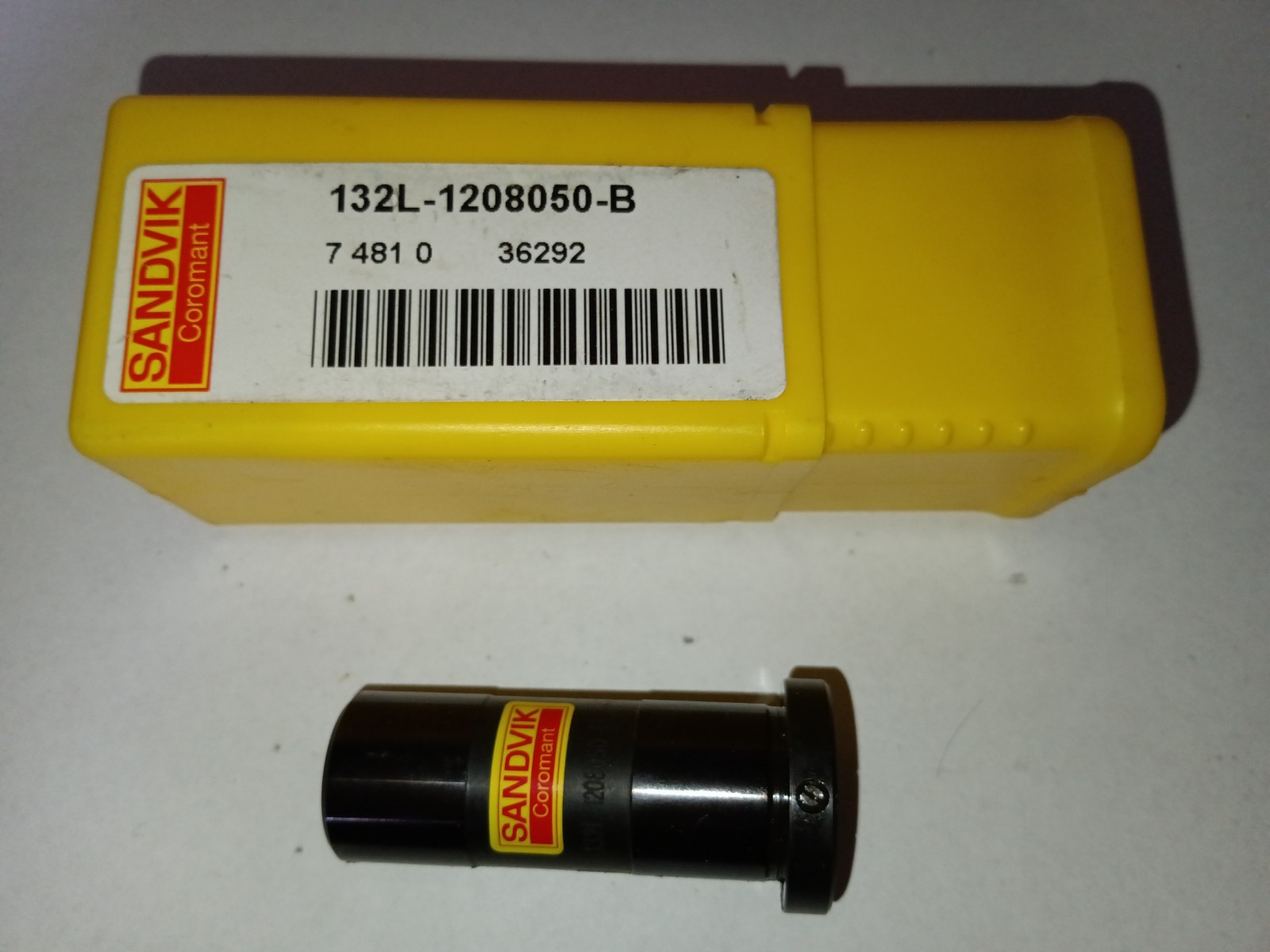

Sandvik Coromant 132L-1208050-B
Cylindrical sleeve with Easy-Fix™ positioning
Description
This is a precision cylindrical sleeve (adapter/bushing) from Sandvik Coromant’s EasyFix system. It is designed to mount cylindrical boring bars into CNC lathe tool holders or machine tool adapters that accept cylindrical shanks.
Key features:
EasyFix™ positioning system — A spring-loaded plunger automatically locks into a groove on the boring bar, ensuring the cutting edge is correctly positioned at center height every time. This greatly reduces setup time and improves accuracy.
Supports internal coolant (axial concentric entry/exit).
Coolant pressure rating: typically 20 bar (higher with metallic sealing on some variants).
Non-rotating application (for stationary tool holders on lathes).
Main technical data:
Parameter
Value
Ordering code
132L-1208050-B
Connection diameter (bar)
8 mm
Body diameter
25 mm
Overall length (OAL)
55 mm
Functional length
5 mm
Clamping length
~50 mm
Weight
0.114 kg
Material ID / SKU
5757267
It is commonly used with Sandvik Coromant cylindrical boring bars (CoroTurn 107, Silent Tools, CoroCut MB, etc.) in the 8 mm diameter range
