Serial RS232 GPS Receiver DB9 with USB power NMEA 0183 GPS Antenna Receiver MariAbout this item

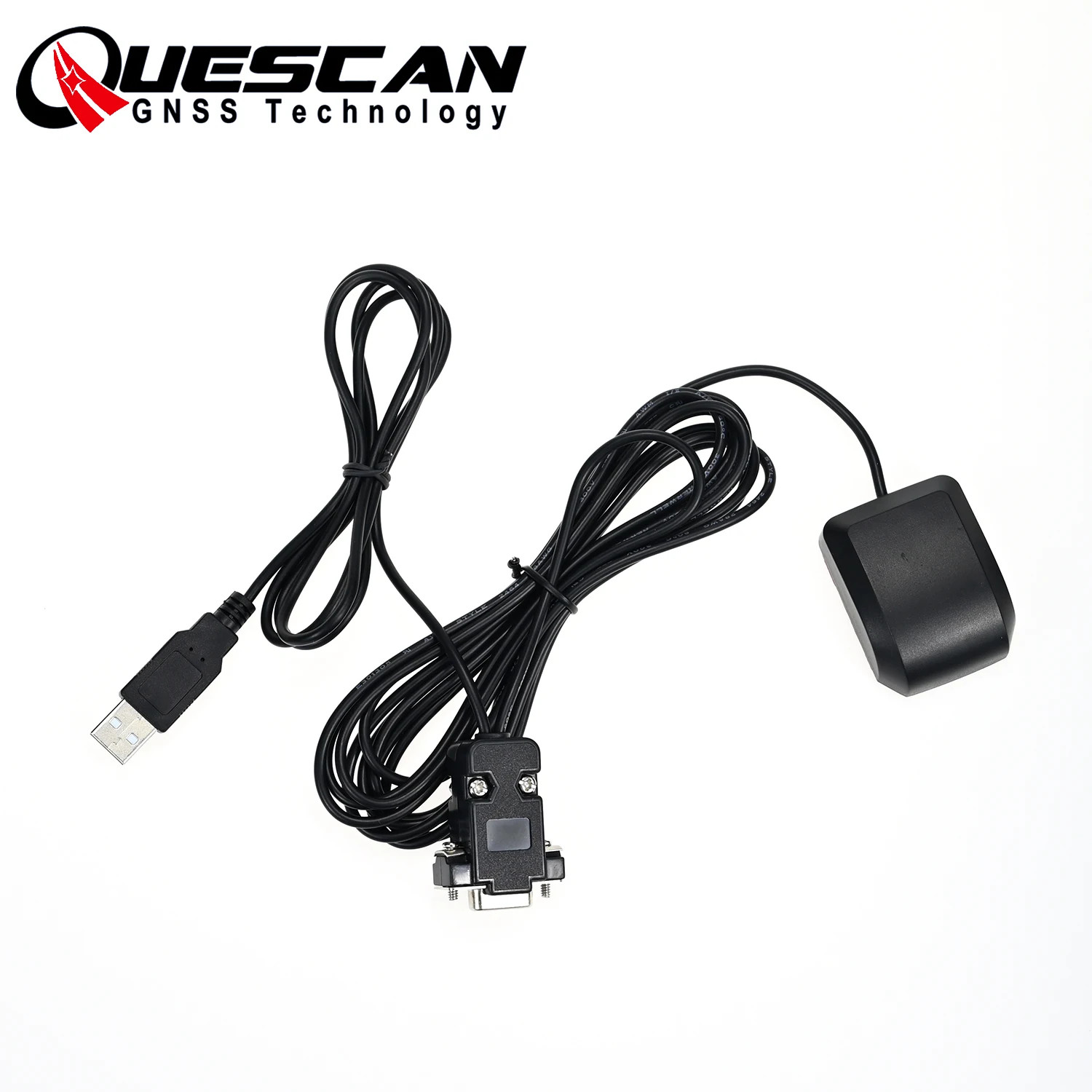

Overview This item is a serial (RS-232) GPS receiver.The end connector is a DB9 female connector, powered by the USB port.The protocol for this receiver is standard NMEA 0183, and the baud rate is set to 9600 bps. The NMEA messages output by the receiver include NMEA-RMC, GGA, GSA GSV, GLL, VTG. The receiver supports 66 channels to receive GPS/QZSS and WAAS. With the help of WAAS, the positioning accuracy is 2 meters for outdoor open areas,and max navigation update rate is 10Hz. It is a low-cost NMEA 0183 solution that can be widely used in marine electronics, transportation management, public transportation systems, etc. Note: If you need to change the receiver configuration, such as baud rate and NMEA message output, please let us know before the order is shipped, as it does not support user-side configuration. Specification GNSS platform：GPS/WAAS+QZSS Horizontal Accuracy：2.5m CEP 2D R
Specifications
- Model Name: QGM51RU
- GPS type: Receiver & Antenna
- Chipset: MTK MT3339
- GNSS: GPS QZSS SBAS WAAS
- Number of Channels: 22 tracking,66 acquisition
- Position Accuracy: 2 m CEP
- Data Level: RS232
- Supply Voltage: 3.0V-5V
- Interface: DB9+USB power supply
- Protocol: NMEA0183
- NMEA sentence: RMC GGA GSA GSV GLL VTG
- Cable: 2.5 meters
- Installation: 3M Paste
Brand new. 30-day returns. Tracking provided on every order.
