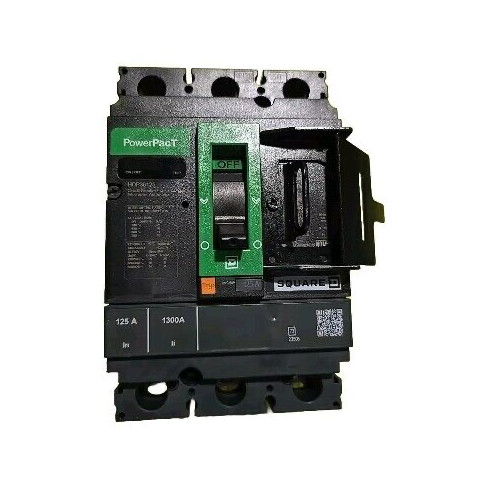

Square D PowerPact HDL36125 3-Pole, 125A, 600V Thermal Magnetic Circuit Breaker For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Square D PowerPact HDL36125 3-Pole, 125A, 600V Thermal Magnetic Circuit Breaker:
$399.98
- [In] rated current125ANumber of Poles3PProtected poles description3tControl typeToggleBreaking capacity codeDBreaking capacity25kA at 240 V AC 50/60 Hz conforming to UL 489
- 18kA at 480 V AC 50/60 Hz
- 14kA at 600 V AC 50/60 Hz
- 20kA at 250 V DC[Ue] rated operational voltage690 V AC 50/60 Hz conforming to IEC 60947-3Network frequency50/60 Hz[Ics] rated service breaking capacity25kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
- 18kA at 380/440/415 V AC 50/60 Hz conforming to IEC 60947-2
- 14kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2
- 20kA at 250 V DC conforming to IEC 60947-2
- 20kA at 500 V DC conforming to IEC 60947-2[Uimp] rated impulse withstand voltage8kV conforming to IEC 60947-2Trip unit technologyThermal-magneticMagnetic tripping current1700AMagnetic hold current900AContinuous current rating80%[Ui] rated insulation voltage750V conforming to IEC 60947-2Suitability for isolationYes conforming to IEC 60947-2Utilisation categoryCategory AAWG gaugeAWG 14...AWG 3/0 aluminium/copper terminalLocal signallingSwitched off (OFF): 1 trip indicator (green)Mounting modeUnit mount (lug)Mounting supportLugElectrical connectionTerminal nut, line
- Lugs, loadTerminal identifierAL150HDTightening torque5N.m for 2.5…6mm² (AWG 14...AWG 10)
- 14N.m for 10…95mm² (AWG 8...AWG 3/0)Number of slots2 slot(s) for auxiliary switch OF (plug-in)
- 1 slot(s) for alarm switch SD (plug-in)
- 1 slot(s) for overcurrent trip switch SDE (plug-in)
- 1 slot(s) for voltage release MN or MX (plug-in)Power wire stripping weight2.2kgQuantity per set1Communication interfaceModbus
|
|
