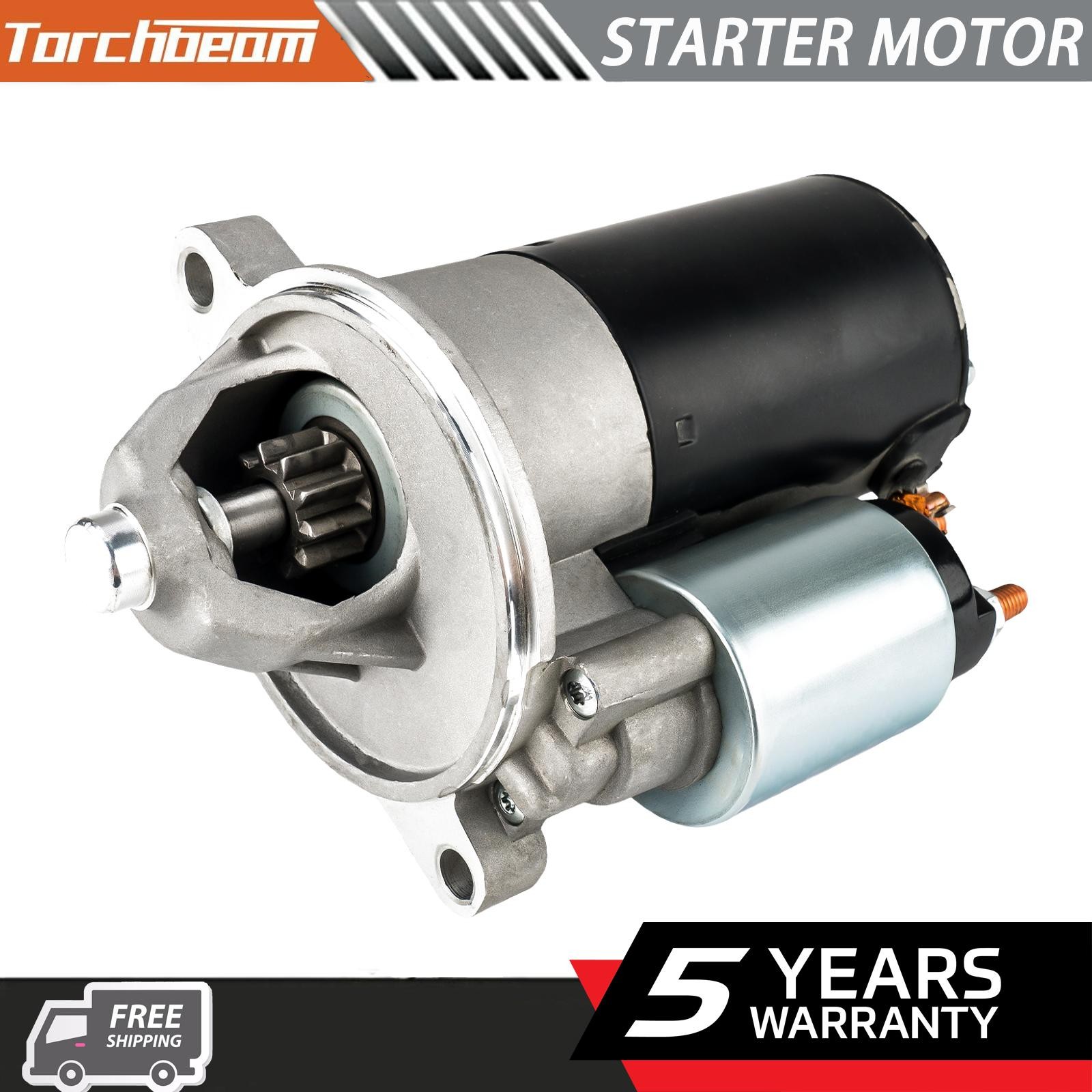

Starter Motor fits Ford Ranger 4-cyl 2.3 & 2.5 Engine 1992-2001 3238N F87U-A1A For Sale

Payment

Shipping

Return Policy

Contact Us

About Warranty

SHOP CATEGORY Acura Audi Bmw Buick Cadillac Chevrolet Chrysler Dodge Ford Honda Hyundai Infiniti Jeep Kia Lexus Mazda Mercedes-Benz Mitsubishi Nissan Other Pontiac Ram Subaru Suzuki Toyota Volkswagen HOT LISTING USD 42.74 Starter High Torque 2.7HP For Mazda RX8 2004-2008 1.3L W/MT 17993 N3H1-18-400 USD 45.59 Starter Motor fits Ford Ranger 4-cyl 2.3 & 2.5 Engine 1992-2001 3238N F87U-A1A USD 99.74 Alternator For 2.3L Ford Ranger Mazda B2300 Pickup 2001-2006 2007 2008 2009 8265 USD 67.99 For 1997-2003 Mazda Protege Protege5 Alternator Replacement High Quality 112067 USD 99.74 110AMP Alternator For 2.3L L4 Ford Ranger Mazda B2300 Pickup 2001-2009 8265 8518 USD 90.99 Alternator For Mazda 6 2006-2013 2.3/2.5L; MX-5 Miata 2006-2008 2.0L 100A 11168N USD 21.99 Engine Air Filter For Mazda 3 04-13 Mazda 3 Sport 2009-2013 Mazda 5 06-17 USD 42.74 Starter High Torque 2.7HP for Mazda RX8 1.3L R2 GAS Naturall 17993N 2004-2008 USD 49.99 17908N Starter For 2009-2010 Mazda 6 2.5L 2003-2008 Mazda 6 2.3L Auto USD 70.49 Pair(2) For MAZDA 6 2014-2021 CX-5 2013-2021 Front Wheel Bearing & Hubs Assembly NEW LISTING Starter Motor For 2017-2025 Cadillac XT5 V6 3.6L 2018-2024 Buick Enclave V6 3.6L 99.99 USD Starter Fits 2007 2008 2009 2010 - 2011 Dodge Nitro 4.0L/241CI V6 43.69 USD Starter Fits 1998-2001 Subaru Impreza 2.2L 1998-2003 Subaru Impreza 2.5L 17723N 46.99 USD High Output Starter for Subaru Impreza 1998-2001 H4 2.2L & 1998-2003 H4 2.5L 46.99 USD High Output Starter for Subaru Impreza 1997 H4 2.2L (SubModel:Brighton) 46.99 USD High Output Starter for Subaru Subaru Forester 1998-2002 H4 2.5L Automatic trans 46.99 USD High Output NEW Starter for Chrysler PT Cruiser 2010 All engine 46.99 USD High Output NEW Starter for Dodge Neon 2003 L4 2.0L 46.99 USD Payment Methods

Specification：

• SPECIFICATIONS:1.4kW/12 Volt, CW, 10-Tooth Pinion
• UNIT TYPE:PMGR
• DESIGN:PMGR
• VOLTAGE:12
• KW:1.4
• ROTATION:CW
• NUMBER OF TEETH:10
• FEATURE 1:100% Top-rated
• FEATURE 2:OE performance torque & output

Replaces Part Numbers：

JLG Industries:7012679 For MAZDA:ZZM0-18-400, ZZP1-18-400, ZZP1-18-400A, ZZP1-18-400R0A For Ford:F17U-11000-AB, F1TZ-11002-A, F1TZ-11002-ARM, F87Z-11002-AARM, F87U-11000-A1A, F87U-11000-A1B, F87U-11000-AA, F87Z-11002-AA For Ford Engineering:F17U-AB, RM4U2J11A230LA, F87U-A1A, F87U-A1B, F87U-AA Lester:3231, 3238 Arrowhead:SFD0003 Arrowhead Old:SFD0048 Motorcraft:NSA3238N, SA-785, SA-785-RM, SA785RM, SA-857, SA857RM Motorcraft Value Series:SAV-785-RM AC-Delco:323-511, 336-1166A Advance Auto Parts:15020009 BBB Ind:3231, 3238 BBB New:N3231 Bosch New:SR7522N, SR7544N Bosch Remanufactured:SR7522X, SR7544X Cardone Select:39-3238SN Carquest:3231S Carquest New:3231SN Carquest Value:3231SV TYC:1-03231, 1-03238 Remy Remanufactured:25511, 97117, P3231S, 27007 J & N Automotive:410-14031, 410-14031R, 410-14041 Delco Remanufactured:10465341 Delphi:SX1334, SX1363 Denso First Time Fit:280-5108 MPA:12369, 3238S MPA New:3238SN NAPA:244-9251 NAPA Pro Series:76087, 70684 Pep Boys New:N5238 Protorque:PH140-0005 Rayloc:44-9251, 449251, 449285, 44-9285 Rayloc New:4N9251 Remy New:97117 Wilson:91-02-5863 Wilson New:91-02-5863N Dixie Electric:202-09106, S-2061, 202-09125 Excel:2412 Andre Niermann:010785

Fitment：

• For Ford Mustang 92-93 L4 2.3L 140cid
• For Ford Ranger 1997 L4 2.3L 140cid 1st Prod
• For Ford Ranger 1997 L4 2.3L 140cid 2nd Prod
• For Ford Ranger 91-96 L4 2.3L 140cid
• For Ford Ranger 98-01 L4 2.5L 153cid
• For MAZDA B2300 94-97 L4 2.3L 140cid
• For MAZDA B2500 98-01 L4 2.5L 2492cc

Package Includes:

1 x Starter

Fault check:

The starter often has failures and phenomena that cannot rotate or rotate slowly. In this case, check the following aspects:

1. The battery has no electricity or the electricity is weak, so the starter cannot rotate or rotate slowly.

2. The starter thread is loose or off, and the switch or adsorption switch fails.

3. The brush is worn out or the brush surface is not correct, and the spring is weak, resulting in poor contact of the rectifier.

4. Excitation coil or armature coil is short-circuited or disconnected.

5. The rectifier is fouled and the mica sheet is protruding, causing poor contact between the brush and the rectifier.Organization maintenance

In the process of starting the engine, the starter must draw in 344~400Ah from the battery. Therefore, in order to prevent the battery from over-current or damage, the starting time should not exceed

5s. In winter, it is easy to start difficult to start. Multiple starting times should not be too long, and appropriate intervals should be left in each starting.

How to Install a Car Starter:

There’s never a convenient time for your vehicle’s starter to fail. A car starter\'s job is to kick over the engine in your car so your vehicle starts.When you find yourself with a vehicle that won’t start, there are a number of a number of issues that may be the culprit,but once you’ve narrowed it down to a faulty starter, you can replace it using just common hand tools.

Part 1: Removing a Bad Starter

(1).Disconnect the battery.
You will not need to remove the positive cable on the battery.
Always disconnect the battery before servicing the electrical system in your vehicle.

(2).Jack up the vehicle if need be.
Ensure you jack the vehicle up on firm, level ground.

(3).Locate the starter.
The smaller cylinder attached to the starter is the starter solenoid.
A wire should run directly from the positive terminal on the battery or from the fuse box under the hood to the top terminal on the starter solenoid.

(4).Disconnect the wiring to the solenoid.
In some cases, it may just be clips you need to disconnect for the wiring.
On some starters, you will need to loosen bolts or screws that hold the wires in place.

(5).Remove the starter retaining bolts then the starter.
Be sure to use the correct size socket, otherwise you risk damaging the bolts.

(6).Compare the new starter to the old one.Slide the starter into place.
If the two starters don’t look mostly identical, it may not be the correct starter for your vehicle.
New starter solenoids often come with four terminals, but can be used with only two.

Part 2: Installing a New Starter

(7).Insert the starter retainer bolts.
If the bolt does not thread properly, unscrew it and try again.
Make sure the bolts are tight so they can’t vibrate loose while the engine is running.

(8).Connect the wiring to the starter solenoid.
With the starter secured in place, reconnect the wiring you disconnected from the old starter onto the terminals on the new one. If your new solenoid has four terminals but your old one had two, only utilize the top and bottom terminal on the new solenoid. If your old one had four and the new one does as well, connect them to the same terminals they were connected to on the old one.

(9).Reconnect the battery.
With the starter installed and wired, reconnect the black cable to the negative terminal on the battery and tighten it in place. Insert the key into the ignition and attempt to start the vehicle.
If the vehicle fails to start with the new starter in place, ensure the battery is fully charged.

(10).Listen to the vehicle as you attempt to start it.
As you turn the key in the ignition, listen for the sounds the engine makes to help determine if you have an issue with your starter. If the engine makes no sound whatsoever, or you hear only a faint clicking, it may be because there isn’t enough power reaching the electric starter motor.

(11).Ensure the battery terminals are clean and secure.Charge your vehicle’s battery.
A weak connection from the battery can prevent the engine from starting.
Wear gloves when cleaning battery terminals to avoid getting battery acid on your skin.

If you suspect the battery may simply be low on power, try charging it using either a trickle charger or another vehicle to jump start it. Be sure to connect the red cable to the positive terminal on each vehicle and the black to the negative.

(12).Check to see the starter solenoid is bad.
If the test light does not light up, it means power is not reaching the starter motor due to a faulty solenoid or a dead battery.
If the test light does light up, it means the solenoid is good, but the starter itself may have failed.

Frequently Asked Questions:

(1).Why is my car starter burning out?
You likely cranked the starter for too long.

(2).I have to change the starter fairly often in my car. What could be causing this?
A leak of some sort could be fouling the starter if fluid is dripping on it. If that\'s the case,

replacing the starter doesn\'t fix the leak so it\'s only a matter of time before the new starter fails.

(3).What is the black wire connected to?
He black wire can be commonly associated with the wire that connects the battery to the ignition.

If this is not the wire that you are referring to then it could be a random wire that has been detached from your fuse box?

How big is this wire? If it is rather stout then that would be your battery cables. If it is a small wire then it could be several different things.

Follow it and find the origin of the wire, it could be a simple fix just take a look at it.

(4).What does a bad starter sound like?
In my case, there was very little noise when the ignition was turned, and all that was heard was a distinctive click.

One really common sign is if you see any smoke coming from the starter.

(5).If my car is grinding when I turn the key, does that mean I have a bad starter?
No. It\'s your flywheel. When you start your car the grinding noise would be your flywheel that\'s connected to the starter.

response:We will leave positive response to buyer as soon as buyer pays for the item. Leaving Negative response or Netural response is never a good way to resolve problem .We hightly appreciate that you can refer to us before you leaving Negative response or Neutral response .We will offer help to resolve your problems as fast as possible.

⚠️ FITMENT — PLEASE VERIFY BEFORE PURCHASE

Q: Will this starter fit my car?

A: This starter fits ONLY the specific vehicles in the compatibility chart. Match by OE part number — not by year/make/model alone.
⚠️ Same vehicle can use different starters depending on transmission (auto vs manual), engine option, or production date.

Q: How do I confirm the right starter for my car?

A: Three ways to check:
① Match OE number — find the part number stamped on your original starter
② Count the teeth — starter drive gear tooth count must match your flywheel/flexplate
③ Check bolt pattern — some engines have both straight-across and staggered bolt patterns

Q: The mounting holes don\'t line up?

A: Some vehicles (especially GM 3.1L/3.4L/3.8L) use two different bolt patterns. If the holes don\'t align, you likely have the wrong bolt-pattern variant. Count the bolt holes and measure the spacing before ordering.

Q: My car is manual transmission — will this fit?

A: Manual and automatic transmissions often use different starters (different nose cone depth or tooth count). Check the compatibility table care

🔧 BEFORE YOU REPLACE — DIAGNOSE FIRST

Q: Car won\'t crank — is it definitely the starter?

A: Not always. A \"no-crank\" condition can also be caused by:
① Dead battery — check voltage: should be ≥ 12.4V. Try jump-starting first
② Bad battery cables/terminals — corroded or loose connections
③ Blown fuse or bad relay — check starter fuse and swap relay with a known good one
④ Faulty ignition switch — try starting in Neutral (automatic) or with clutch fully depressed (manual)
⑤ Security system / immobilizer — flashing security light on dash?
→ Simple test: Turn headlights on and try to crank. If headlights stay bright but engine doesn\'t crank → starter issue. If headlights dim significantly → battery issue.

Q: I hear a single \"click\" but engine won\'t turn over?

A: A single loud click usually means the starter solenoid is engaging but the motor isn\'t spinning. Possible causes:
① Low battery voltage — charge battery fully and retest
② Poor ground connection — check engine-to-chassis ground strap
③ Starter solenoid contacts worn — if battery and cables test good, starter is faulty

Q: I hear rapid clicking when turning the key?

A: Rapid clicking (machine-gun sound) is almost always a dead or weak battery — NOT a bad starter. The starter solenoid is chattering because there isn\'t enough power to hold it engaged. Jump-start or charge the battery first.

Q: Starter spins but engine doesn\'t crank (whirring sound)?

A: This means the starter drive gear is not engaging the flywheel. Possible causes:
① Wrong tooth count on starter drive
② Starter not shimmed correctly (common on GM small-block V8)
③ Damaged flywheel/flexplate teeth
