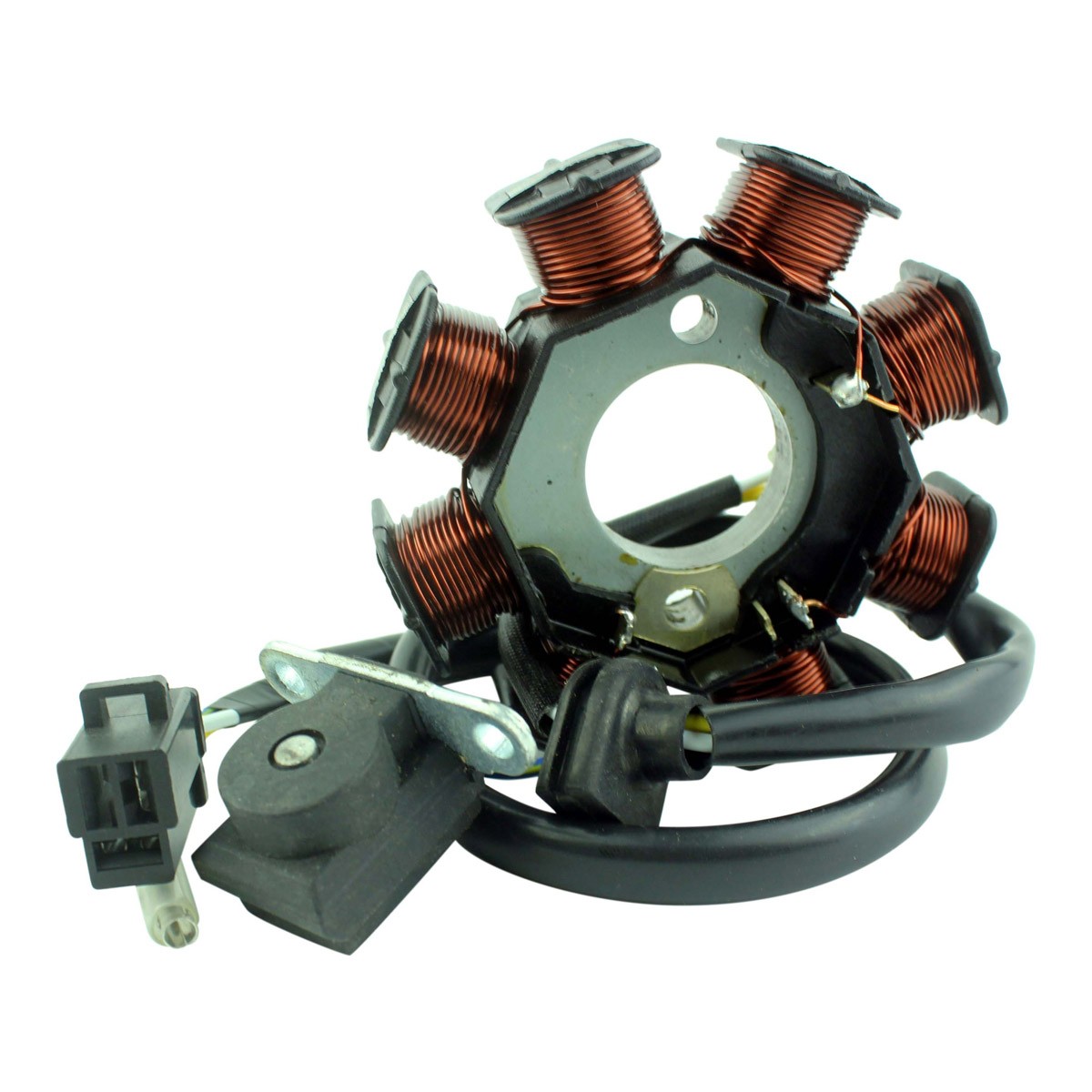

Stator for Kawasaki KFX 50 2007-2024 | # 21003-Y003 21003-Y001 KFX50 KEY FEATURES
Brand new stator direct replacement
Highest grade lamination materials
Highest grade copper windings resistant to 200 degrees celsius
All products shipped are condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Vehicle models fitment
Kawasaki KFX 50 -- 2007-2009, 2013-2017, 2019-2024
OEM part diameter: 28mm
Exterior diameter: 88mm
Thickness: 8mm
Length of wires stator to grommet: 75mm
Length of wires grommet to plug: 400mm
Length of pickup coil\'s wire to grommet: 5mm
Other specifications:
Number of wires: 3
Number of plugs: 2
Number of pins: 3
Wire to wire resistance:
Alternator: = 0.4 ohms +/-20%
Pickup: = 120 ohms installing your new stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original. `
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010??.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
