Straval Strainer PRS07i-02T-N6947 range 0-25psig 1/4\" npt rtd press:300psig NEW For Sale

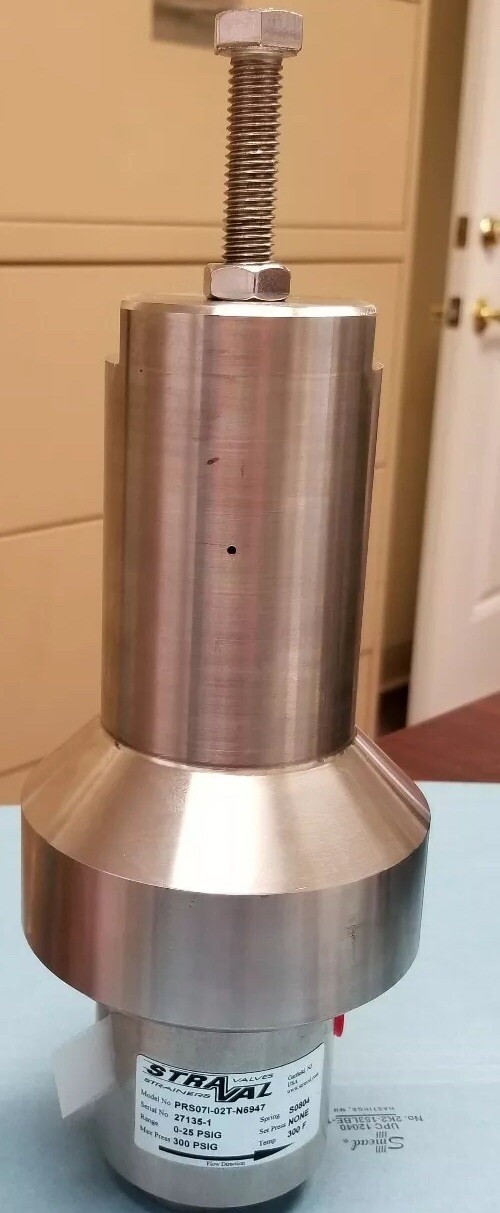

• 1/4 x 1/4 Npt Pressure Regulator
• Spec: N6947 Model: PRS07I-02T-N6947
• Mat Wetted: 316SS
• Mat Non-Wetted: 303SS
• Mat Diaphragm: PTFE(PE/BN)
• Mat Elastomer: Viton
• Mat Seat: Viton
• Rtd Press: 300 psig Rtd Temp: 300 F
• Spring: S0804 Range: 0 psig - 25 psig
• CV Factor: 0.67
• Set Press: None
• Shipping Weight: 15 lbs
• Serial No: 27135-1
• WO No: 5470

Condition is brand new and never been used. The item was too large for my needs.
l Spring operated diaphragm pressure reducing valvel 1/4\"-1\" NPT THDl Normal Inlet pressures to 150 PSI (10 Bar), Body rated max 300 psil Outlet pressures from 0-50 PSIFeaturesl Water pressure regulator and air pressure regulator parts made from solid bar stock materials — unlike castings whichhave wall thickness variations.l Body: Standard valve materials are stainless steel (all sizes)(1/4\"-1\" sizes only).l Trim: Stainless steel on valve poppet and seat is standard. Teflon sealing option is also available for air or gas service.l Teflon-Viton composite reinforced diaphragm is designed for much greater poppet travel. Teflon film on the wetted sideprovides superior protection when used as a corrosion-resistant valve for a wide range of fluids and gases, chemicals,petroleum products, and steam. Viton is used on the non-wetted side of the diaphragm. Max temperature rating is 350 °Ffor most applications. Buna backing is available for lower temperature applicationsl In-line valve ports: Simplifies installation for new or existing piping. This water pressure regulator and air pressureregulator valve can also be used as a steam pressure regulator. Our pressure-reduction valve is also available as asanitary valve with sanitary flanges in all-stainless steel construction.l Spring chamber: Standard material is carbon steel as it is non-wetted, but can be upgraded to a stainless steel valvewhen the external environment is corrosive or sanitary.
ApplicationsThis is a direct-acting diaphragm pressure-reducing valve (most often referred to as a pressure regulator) with an adjustablespring operating against a flexible elastomeric diaphragm subjected to the reduced outlet pressure of the valve which iscontrolled through an internal sensing port. This makes the valve an accurate pressure-sensing valve, or pressure-control valveused to control outlet pressures with a wide range of inlet pressures.Unlike unbalanced diaphragm pressure-reducing valves, this pressure valve is a balanced inlet design and will work quite wellon applications where the inlet pressure will fluctuate widely and will have little effect on outlet pressure. The valve will operatein a vertical orientation as illustrated, horizontal, or any other orientation.This valve can be used for non-corrosive or mildly corrosive fluids including steam, depending on the materials selected. Seematerial display notes in pricing section to help select materials. Use only clean, strained or filtered fluids to keep thepressure-regulating valve operating at maximum efficiency without clogging. Use our Stra-Val in-line strainer fitting modelSTF-05 or basket strainers SBS-10 or SBV-05 to keep the fluids clean. Use a #20-#40 mesh range as a minimum to keep solidsfrom entering the valve.
Applications are for use as a water pressure-reducing valve, water pressure regulator, steam pressure regulator, air pressureregulator, oil pressure regulator. Most applications are sold where a corrosion-resistant valve is preferred, where wemanufacture these mostly as a stainless steel valve for the wetted components, using type 303 stainless steel or type 316stainless steel for chemicals or when a sanitary valve is required with sanitary flanges. For seawater applications the Monelvalve, titanium valve, or Hastelloy valve is used. Although Inlet pressures of up to 3000 psi are possible, we do not recommendit unless the largest spring range is selected and there is a relief valve that is set not to exceed 100 psig (6.9 barg) on the outletside of the valve. This relief valve will assure that the downstream pressure will never reach full inlet pressure in case theregulator fails to shut off properly for any reason. In fact we always recommend a relief valve be installed on the outlet sideof the valve which should be set slightly higher than the highest pressure that the regulator will be adjusted to to protectequipment downstream from the regulator in case of excessive pressure buildup which may be from seat wear, corrosion, orexternal sources other than the valve.The standard construction for this pressure-reducing valve is with a metal seat, but a soft seat option can be ordered, which willimprove seat leakage particularly for air or gases.Therefore, do not attempt to use this as a shutoff valve even when the valve isfurnished with a soft seat option. For prolonged or even momentary periods of shutoff, install separate shutoff orisolation valves to keep the relief valve from tripping.This in-line pressure regulator has fairly adequate Cv values for most applications. See below. For higher flow rates and largerCv values, a custom pressure valve model PRS-09 with the porting arrangement parallel and slightly offset which requiresadditional elbows to restore in-line piping.
Select the valve size, spring range, material options in the customized pricing and ordering section indicated by the red arrows.You have the ability to customize your valve choices by selecting the wetted and nonwetted materials, and choice of seatmaterials to suit your shutoff requirements, using the softer seats for improved shutoff, particularly for air or gas applications.Once these selections are made a price quote can be generated and printed directly to your computer or immediately e-mailedto you.
Principle of OperationThe valve operates on the principle of balancing the spring force that is set by the user against the outlet pressure acting underthe diaphragm. There is an internal pressure balancing port that subjects the outlet pressure directly to the underside of thediaphragm. When the outlet pressure falls below the set pressure required by the system on the outlet side of the valve, thespring force overcomes the force balance under the diaphragm causing the poppet and diaphragm assembly to drop downcausing the valve to open and allow higher pressure at the valve inlet to pass through the valve. When the pressure rises to asufficient level to restore the force balance against the spring, the valve will move toward the closed position. The valve iscompletely self regulating and the poppet is constantly moving to respond to pressure changes on the outlet side of the valve,not the inlet. The only time the poppet closes completely is when the outlet pressure has been reached to its set point. As longas the valve is able to shut off properly without solids or other material build up in the seat or because of seat wear, the valveshould be able to maintain and hold the outlet pressure and keep it from rising for brief periods of time. If the valve is set with noflow passing through the system, there will be some droop (drop in outlet pressure) caused by relaxation of the spring when thevalve first has to open. This occurs with all direct spring operated valves and can be compensated by making a slightreadjustment to the set pressure once the desired capacity has been achieved.
