Manufacturer: TEIN
Part Number: DSH00-81LS1
Condition: New
Product Description: Developed from actual competition, TEIN was able to create a fully adjustable damper that can be easily tuned for any track and weather conditions. Super Racing Dampers utilize a full-length adjustment system to allow shock length and spring pre-load to be adjusted independently. Separate 16 - way adjustments for compression and rebound damping enable the user to fine tune for any situation. TEIN has incorporated both camber and caster adjustment into the front pillow ball upper mounts for strut type vehicles. External reservoirs on SA type dampers allow for added oil capacity. Spring rates and shock valving were derived from many years of motorsports support, to provide the ultimate damper for competition. Designed and tested for circuit use by advanced and professional drivers who are seeking complete damper tuning capability.
Steel Construction
Mono Tube internal construction
Inverted design for strut type front and rear
Ride Height adjustable via threaded body and spring seats
16 � 16 way adjustable dampers, compression and rebound separately adjustable
Pillow ball upper mounts for increased steering feel
Upper and lower camber adjustment on front for strut type vehicles
Caster adjustment on front for strut type vehicles
Dual EDFC (Electronic Damping Force Controller) compatible

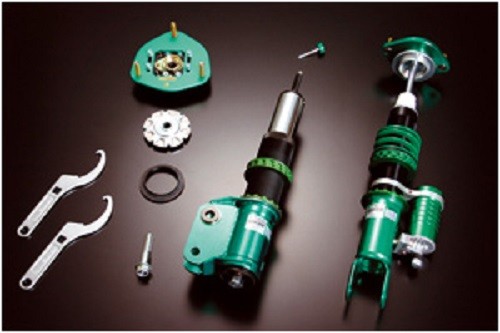

Powder coated brackets with Teflon coated shock body for heavy duty rust prevention Additional Information: Image is only a representation of coilovers. TEIN doesn\'t have vehicle specific images. Your coilovers will be specific to your vehicle.
PRODUCT: SUPER RACING
SPRING: Not Includes
FRONT DAMPING FORCE ADJUSTMENT: Y
FRONT FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: Y
FRONT UPPER MOUNT: P/U
FRONT RECOMMENDED RIDE HEIGHT (mm): -60
FRONT RECOMMENDED RIDE HEIGHT (inch): -2.4
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -100
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -3.9
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): -15
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): -0.6
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -70
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -2.8
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -50
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -2
FRONT SPRING RATE (kgf/mm): 24
FRONT SPRING RATE (lbs/in): 1344
FRONT SPRING SP PART#: RS240-A1125
FRONT SPRING FREE LENGTH (mm): 125
FRONT SPRING I.D. (mm): ID58
REAR DAMPING FORCE ADJUSTMENT: Y
REAR FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: Y
REAR UPPER MOUNT: P/U
REAR RECOMMENDED RIDE HEIGHT (mm): -65
REAR RECOMMENDED RIDE HEIGHT (inch): -2.6
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -105
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -4.1
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): -15
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): -0.6
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -75
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -3
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -55
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -2.2
REAR SPRING RATE (kgf/mm): 16
REAR SPRING RATE (lbs/in): 896
REAR SPRING SP PART#: RS160-A1125
REAR SPRING FREE LENGTH (mm): 125
REAR SPRING I.D. (mm): ID58
EDFC COMPATIBILITY: COMPATIBLE
EDFC FITTING DETAIL:
EDFC MOTOR KIT 1: EDK05-12120
EDFC MOTOR KIT 2: EDK05-12120
EDFC FRONT STRUT KIT, EXTENSION KIT:
EDFC REAR STRUT KIT, EXTENSION KIT:
NOTE: 3DR, 4DR/4CYL/SPRINGS SOLD SEPARATELY Guaranteed Fitments: MAKE: HONDA
MODEL: CIVIC
YEAR: 1996-2000
CHASSIS: EJ6
TRIM:
MOTOR SIZE: 1600
DRIVETRAIN: FF SPARKTEC MOTORSPORTS store POLICIES
