Cylinder Specs – Quick Facts
Capacity:
2.5L / 2500cc/153Ci
Neck thread:
M18x1.5-6H
4500Psi valve
– Working pressure: 4,500 psi
– Burst disc: 6,000 psi
Working pressure:
4500 psi / 300 bar / 30 MPa
Hydrostatic test pressure:
45 MPa
Min burst pressure:
102 MPa
Certification:
CE certified (not DOT – self-fill only)
Re-test:
every 3 years
Service life:
15 years
Typical uses:
Air supply, emergency escape, fire breathing, underwater diving & snorkeling, shipboard life-saving, clean energy, PCP rifle & paintball refills, medical, mine rescue. Product Capacity: 2.5L/2500cc/153Cicapacity, Product Neck Thread: M18x1.5-6H thread
Product Pressure: 30mpa / 300bar / 4500psi working pressure, 50Mpa hydrostatic test pressure, 102Mpa minimum burst pressure, Product Certification: CE / EN approved (Not DOT), Inspection cycle: 3Yr, Service life: 15Yr

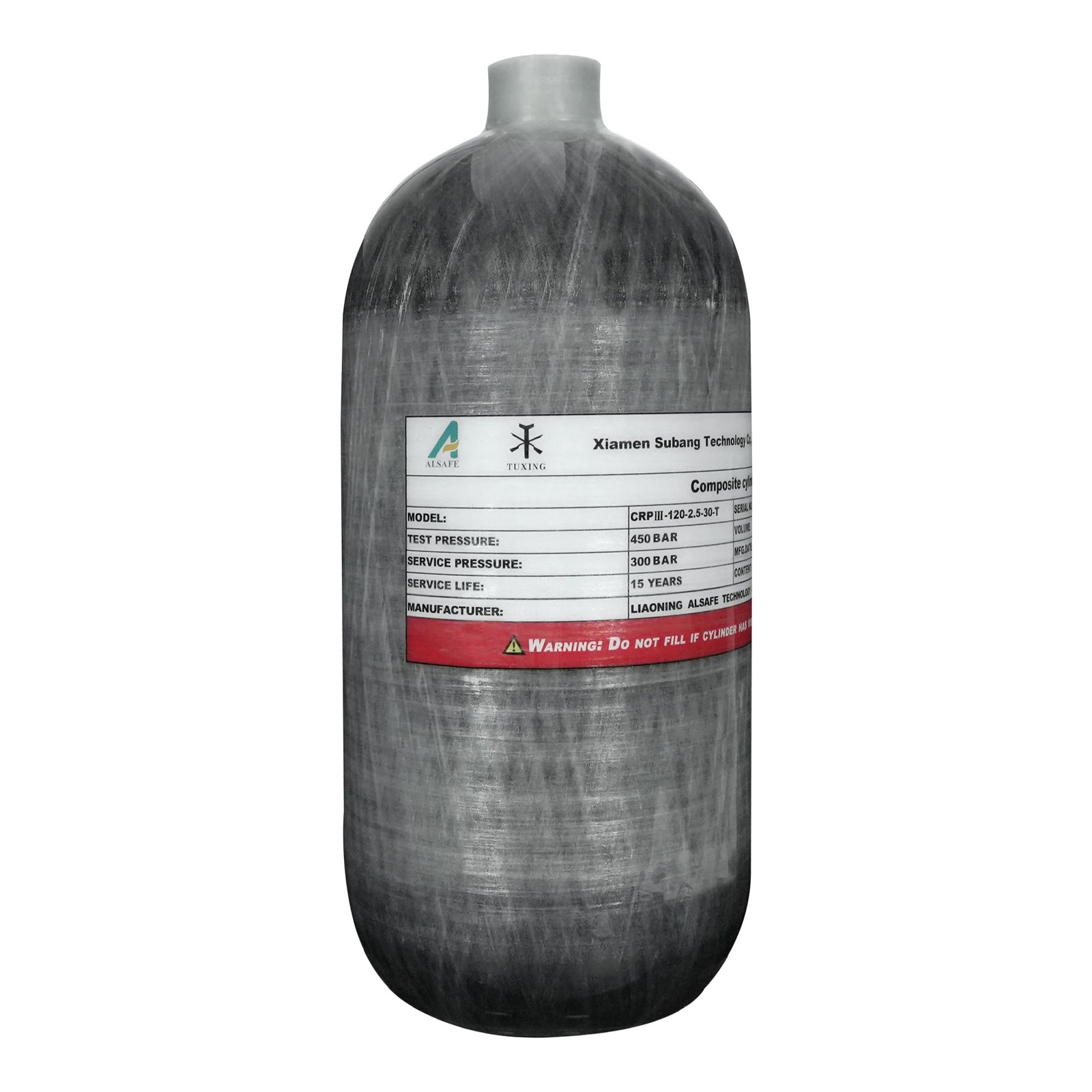

Product Structure: Using high-quality raw material AL6061 aluminum alloy liner with full-wrapped carbon fiber and glass fiber winding, external surface treatment is epoxy coated, high strength features creep resistance, shock resistance and corrosion resistance
Product Testing Performance: One of the safety tests is the hydrostatic test pressure, for carbon fiber cylinders, it can reach 50Mpa. The other is the minimum burst pressure, which can reach 102Mpa for carbon fiber cylinders, can hold more gas under the same volume conditions
Product Advantage: Carbon fiber composite air cylinder is a new material cylinder developed in recent years. Compared with the traditional steel cylinders, the weight is reduced by 70%, the corrosion resistance is strong, there is no magnetic property, the performance is stable, and the inner surface is specially treated to ensure that the holding gas is clean and has no odor, long service life (The service life is 15 years)
