Tele Solderless SH Wiring Upgrade +Coil Tap [B] +Coil Split [N] +Ser/Par For Sale

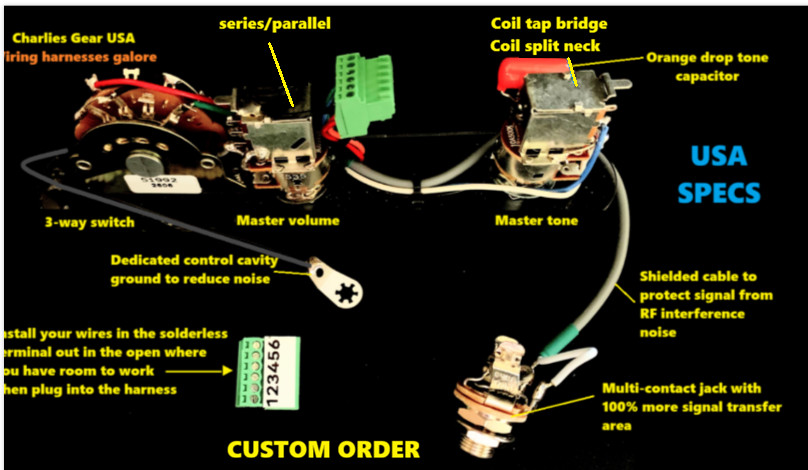

CUSTOM ORDERCustom wiring harness for SH TelecasterNo soldering requiredCompletely wired (Not a kit) - Ready to installCharlies Gear USAFeatures:Solderless installation & solderless future pickup swapsBourns pro audio series 17mm push/pull potentiometersBalance resistor added to bridge for single coil & humbucker shared componentsMulti-contact jack with 100% more signal transfer areaShielded cable to jack to protect your signal from RF interference noiseFor models with single coil bridge & humbucker neck pickups (SH) (single coil must have tap wiring)3 or 4 conductor pickup wires required for humbuckerDedicated control cavity ground to reduce noise2 grounding options included for stringsOrange drop tone capacitorPremium quality solderless terminal for your wire connectionsInstallation wiring guidePush/ pull potentiometers - pull up knob for single coil/push down for humbuckerVolume coil splits neck pickup / Tone coil splits bridge pickupSwitching:1- bridge - or pull tone knob up for bridge coil tap2- bridge with neck - or pull up volume for series - and/or tone for single coil neck & coil tap bridge3- neck - or pull up tone for neck single coilPush/pull effects:Volume: Master series/parallel - places both pickups in series or parallelTone: Coil taps bridge pickup and coil splits neck pickupComplete component specs below
Installation:This system is designed to make upgrading your electronics with premium components easy, quick and frustration free.1- Install your stripped wires into the solderless terminal ports and secure with the included 2mm screwdriver.2- mount your new harness in the control cavity3- plug the solderless terminal into the harness.BING - BANG - BOOM - DONE!Plus, no burned fingers!***Makes future pickup upgrades a snap***Specifications:Bourns 500k 17mm push/pull volume and tone (pull up to split coils)Mounting bushings: 3/8\" Diameter x 3/8\" long (threaded section)Solid shaft 6mm (for knobs)Orange drop .022µf tone capacitor470k resistor on bridge circuitOak Grigsby 3-way blade switch with tipPure tone multi-contact jack with shielded cableDedicated control cavity ground2 grounding options for strings & hardwarePremium quality solderless terminal for your wire connections2mm screwdriver for terminalInstallation wiring guideCheck out Charlies Gear for wiring harnesses galore!Nearly 500 unique wiring harness models in this storeNeed something different?- Just ask! -Have yours custom made & ready in a few days >>>click the \"contact seller\" link for friendly help.Store: www..com/str/lightninmagicNote: sales outside USA may incur import duties depending on the policies of your country
