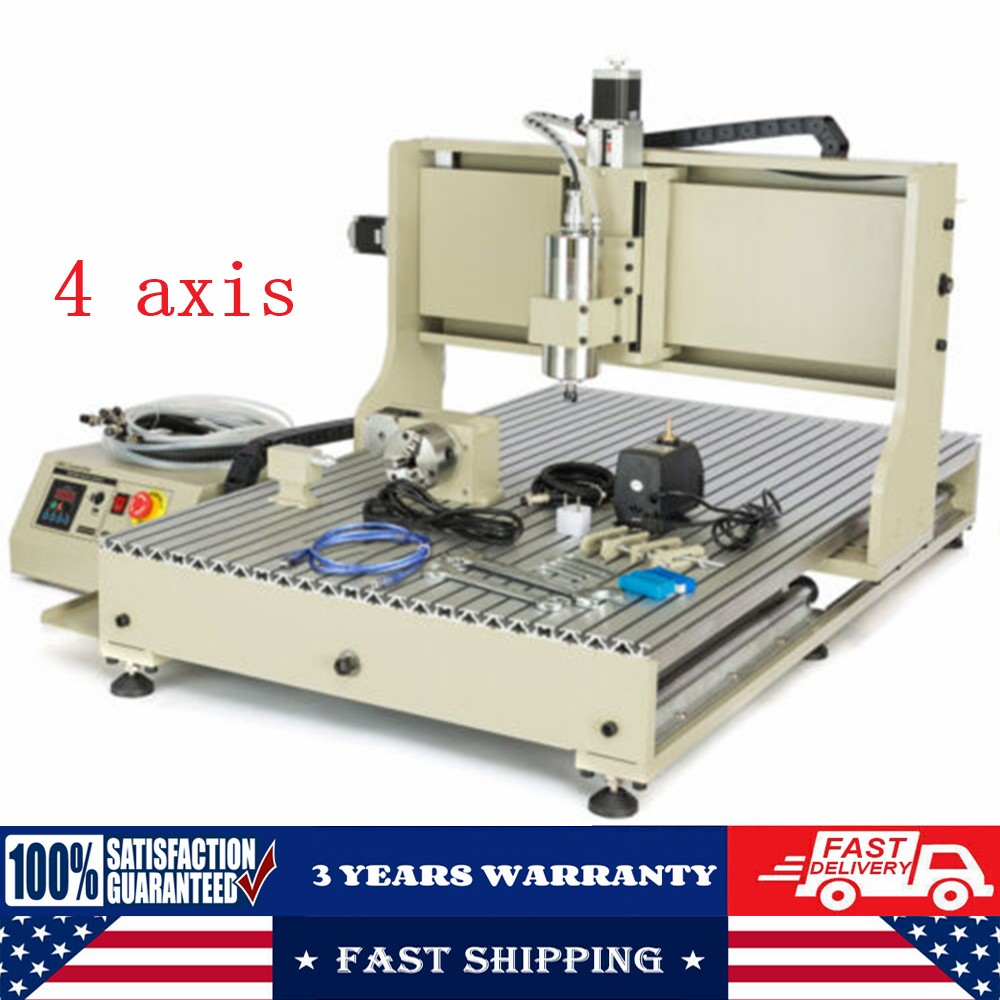

USB CNC 6090 4 axis 2.2KW CNC Router Small Wood Metal Engraving Milling Machine For Sale

Package list:1X main unit (Frame)1X main unit (working base)2X Fence baffle1X control box1X A axis1X Sinal cable for A axis1X pump1X USB cable2X cutter 2*6mm2X cutter 3*6mm10X 4*7mm round head6X 4*10mm black Inner six angle screw with nut8X 5*20mm black Inner six angle screw4X 5*8mm Flat Philip\'s head screw with nut and gasket8X 6*24mm BALCK FLAT Inner six angle screw12X Aluminium fastener1X 13-15# Wrench1X 14-17# Wrench2X six angle Wrench(3mm)2X six angle Wrench(4mm)1X Teflon tape2X Fuse (5A)1X Power cable1X Manual1x Tools Setting Auto-Check Instrument

USB CNC 6090 4 axis 2.2KW CNC Router Small Wood Metal Engraving Milling Machine6090 router 4Axis+2.2kw Spindle motor +VFD +USB Port Metal Wood Engraver with tool sensorRouter engraving machine parameters:
Model:6090GZ
Outside platform size:1045x720mm(LxW)
Package list:
1X main unit (Frame)
1X main unit (working base)
2X Fence baffle
1X control box
1X A axis
1X Sinal cable for A axis
1X pump
1X USB cable
2X cutter 2*6mm
2X cutter 3*6mm
10X 4*7mm round head
6X 4*10mm black Inner six angle screw with nut
8X 5*20mm black Inner six angle screw
4X 5*8mm Flat Philip\'s head screw with nut and gasket
8X 6*24mm BALCK FLAT Inner six angle screw
12X Aluminium fastener
1X 13-15# Wrench
1X 14-17# Wrench
2X six angle Wrench(3mm)
2X six angle Wrench(4mm)
1X Teflon tape
2X Fuse (5A)
1X Power cable
1X Manual
1x Tools Setting Auto-Check InstrumentHow to use:
1.Assembling and locating the machine on steady desk well.
2.Make sure that your computer has a USB port output.
3. Place the control box in a ventilated dry place where there is no dust,no moisture
4.Connecting the control box with the machine and you computer and make sure the plug will not come off.
5.Correctly connect the machine with the controller. Don\'t suspended the cable which connect the Spindle motor with axis(X,Y,Z,A).Otherwise, It will
damage the driver of the controller.
6.Correctly install the Spindle motor and the heat pump. The heat pump should be covered completely in the water, then turned on the electric current tocheck whether the water-cooling system working well.
9. Before turn on the machine, please check all the cable and water- cooling system to make sure they are working fine.
10.You can enjoy making you dream with using our machine now.Frame Material:The whole machine used 6061 aluminum profiles
Max. Feeding height:≤140mm(From base of Z axis to platform)
X,Y,Z Working Area:600x900x150mmSliding unit:
X axis:SFU1605 Ball Screws;
Y axis:SFU1605 Ball Screws;
Z axis:SFU1204 Ball ScrewsDrive unit:
X axis:ø20 High intensity round rail,
Y axis: SBRø20 high-strength aluminum base rails;
Z axis: ø12 high-strength round rail
Stepping motor:two-phase 3A (with handwheels)
Driving Power for Stepping motor:AC110,240W, Output DC24V10A
Maximum Idle speed:1500mm/m
Working Speed:50-1500mm/min (different material with different speed settings)
Spindle motor:2200Whigh-speed variable frequency spindle motor, ER11 chuck , matching 6mm bur
Variable-frequency Drive(VFD):AC110V, 2200W, 0-400Hz(built-in Control box )
（tips：1,The spindle motor must connect with the VFD.2,It cannot directly connect with the supply voltage (AC110V/220V).3,Please don’t change the data setting of the VFD if you are not professional technicians, or it might damage the spindle motor.)
Drive of Stepping motor 0-3.5A adjustable four-axis drive(TB6560AHQchip, 24V power supply, 2,4,8,16Subdivisionsettings, method:Water cooling,Matching heat dissipation water pump
Spindle precision:Radial runout≤0.03mm
Carving command:G code/TAB file/nc/TAB /NCC/file
Protection:Emergency stop button
Communication interface:through USB PORT connect with computer
Input Volts: AC110V
Gross weight of machine :About 145kg/320lb
Update function: with limit switch
Application industry:
Woodworking industry: sculpture, round carving, wooden handicraft processing
Advertising signs: logo making, cutting acrylic , plastic molding, suit for making a variety of materials advertising decorative products
Other industries: The engraver could do shadow-carved, sculpture which widely used in the gift industry; can be used in aluminum cutting industry,such as aluminum, aluminum-plastic plate, aluminum honeycomb panels, aluminum, 3D engraving process, Artificial plate, cutting LED and neon letter , making plastic light box model; also can engrave on acrylic, copper, PVC board, artificial stone, MDF board, and other metal sheet.Feature:
1,The NEW 2.2KW water-cooled VFD is available operating for long time,which can reinforced the processing ability of the machine and can be used to engrave on aluminum alloy and hard wood.
2,water cooling spindle works more stable and durable.
3, High quality accurate ball Screws drive make the engraving more precision.Anti-blackflash,high precision,long life circle.PaymentDelivery detailsTerms of salesAbout usContact usPaymentWe accept payment 。Fees such as import duties, taxes are not included in the item price or shipping costs. These charges are the buyer\'s responsibility.Delivery detailsShipping:2-9 working days to: USATerms of sales
