Product Details
Upgraded Billet Wheel Turbo GT30 GT3037 GT3076 A/R 0.82 T3 Turbine Up to 500BHP
Item Description
All modifications must be installed by licensed mechanics and in compliance with your local modification for all 4/ 6 cyl 2.5L-3.0L engines
Horse Power: Boost Horse Power up to 500BHP
Notice:This model is a universal turbo. Please confirm whether there is enough space in your car to install this turbo before Inlet (Turbo Manifold) Flange:Standard T3 Flange
Exhaust Outlet Flange:V-Band
Turbine Outlet Inner Diameter: 74.14mm
Turbine Outlet Outer Diameter: 82.05mm
Turbine Trim: 74.2
Turbine Inducer Diameter: 64.8mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R:0.82
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7mm
Compressor Exducer Diameter:76mm
Compressor A/R:0.6
Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25
Water: M18*1.5
Wastegate: w/o Wastegate
Thrust Bearing: 270 Degrees
Turbo Type: Individual
Bearing:Journal Bearing
Cooling Type: Water + Oil

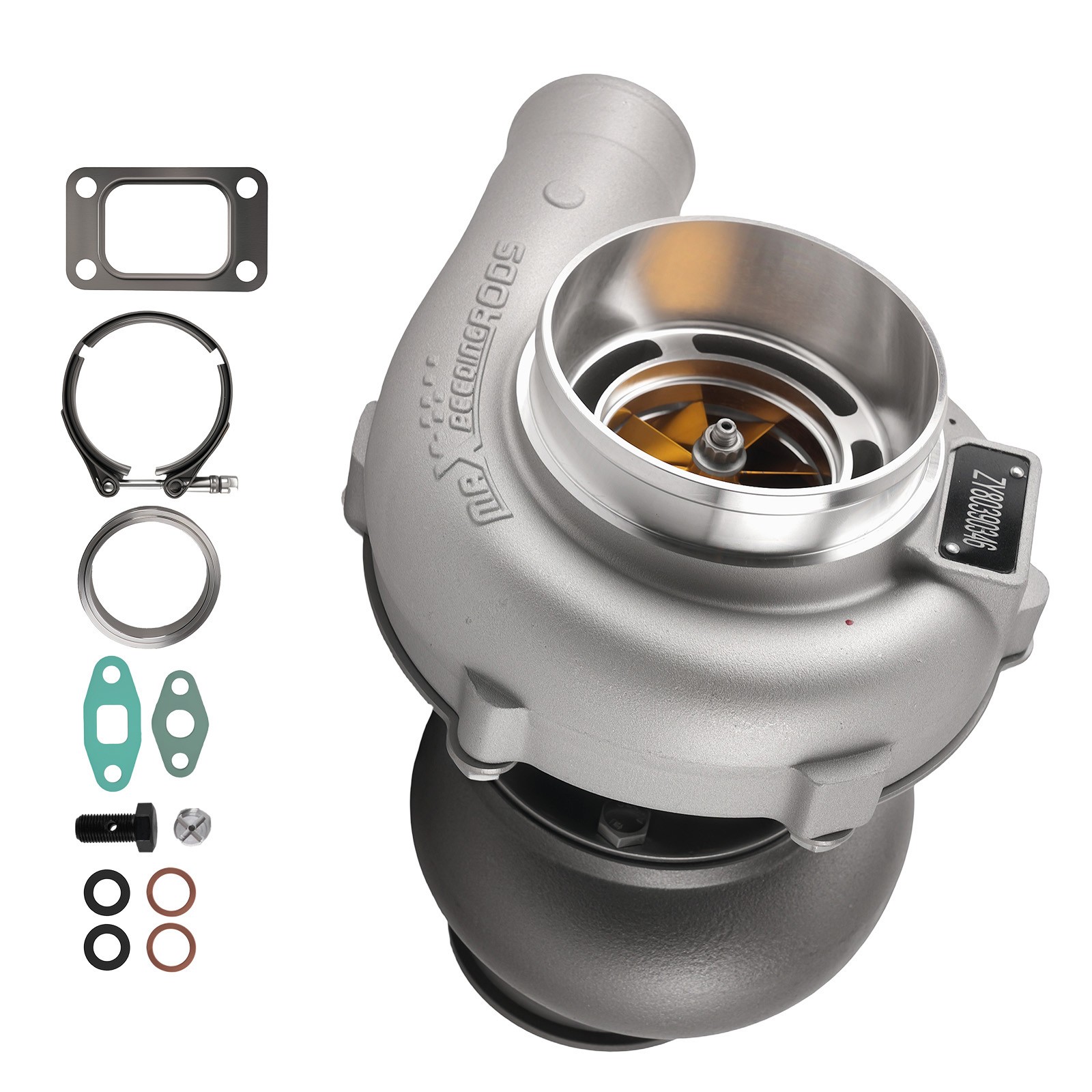

Accessories: You will get exactly as shown in the picture above
Package Size:30 x 28 x 24cm
Package Weight: 8750g
Features:
1. Turbine housing: Silicon-Molybdenum - High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases Thermal Stability and reliability.
2. Turbine Whee: K419 alloy - H temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown for smooth reliable operation.
3. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.
4. Oil Seal: High-speed steel oil seal ring - Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.
5. Appearance upgrade
(1) Turbine outlet V-BAND: Easy installation
(2) New compressor wheel design
Notice:
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
