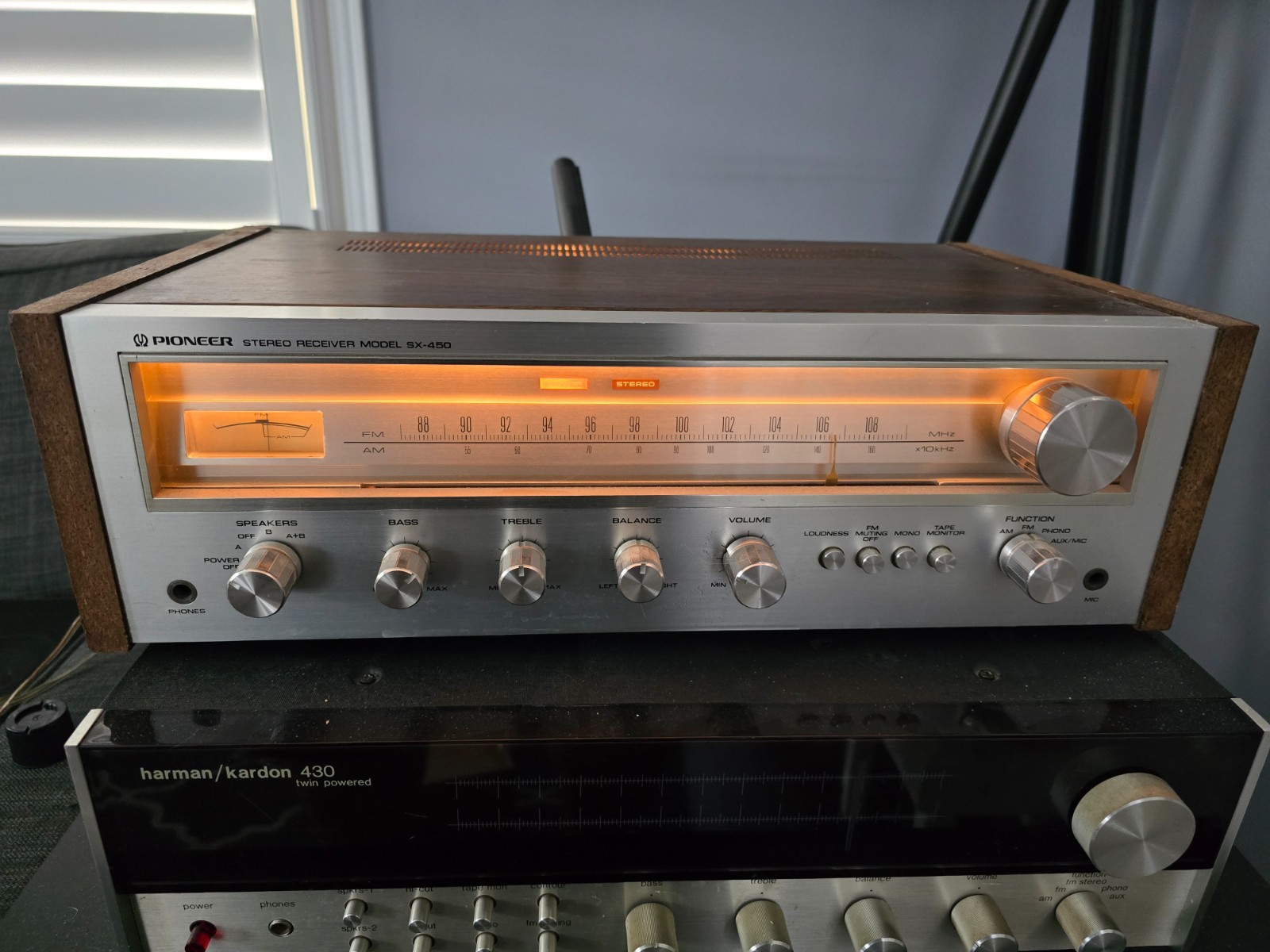

VINTAGE 1976 1977 PIONEER SX-450 AM/FM STEREO RECEIVER TESTED - Good condition
Sounds good with a little bit of noise. Needs a little bit of work to clean the pots to bring it back to its glory days (DEOX) will do. Otherwise, it has some cosmetic wear and tear on it but is in very good condition.
The Pioneer SX-450 is a 15 watt FM/MW stereo receiver featuring FM muting, tape monitor switch and provision for 2 pairs of speakers.
The unit employs a direct-coupled OCL circuit in the power amplifier with a first-stage differential amplifier.
High FM sensitivity is ensured by a low noise FET in the front end with a frequency linear 3-gang variable capacitor.
Specifications
Tuning range: FM, MW
Power output: 15 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 60kHz
Total harmonic distortion: 0.5%
Damping factor: 25
Input sensitivity: 7.5mV (mic), 2.5mV (MM), 150mV (line)
Signal to noise ratio: 70dB (MM), 90dB (line)
Output: 150mV (line), 30mV (DIN)
Speaker load impedance: 4Ω (minimum)
Semiconductors: 1 x FET, 3 x IC, 28 x transistors, 15 x diodes
Dimensions: 448 x 141 x 307mm
Weight: 8.6kg
Accessories: FM T-type antenna
Year: 1976
