Vintage Kenwood KR-5340 Two-Four Quadraphonic AM/FM Receiver - Read For Sale

Offered here is a vintage Kenwood KR-5340 \"Two-Four\" AM/FM stereo and quadraphonic receiver from the early 1970s. This is one of Kenwood\'s period four-channel receivers, combining conventional 2-channel stereo operation with SQ, RM and discrete 4-channel capability.

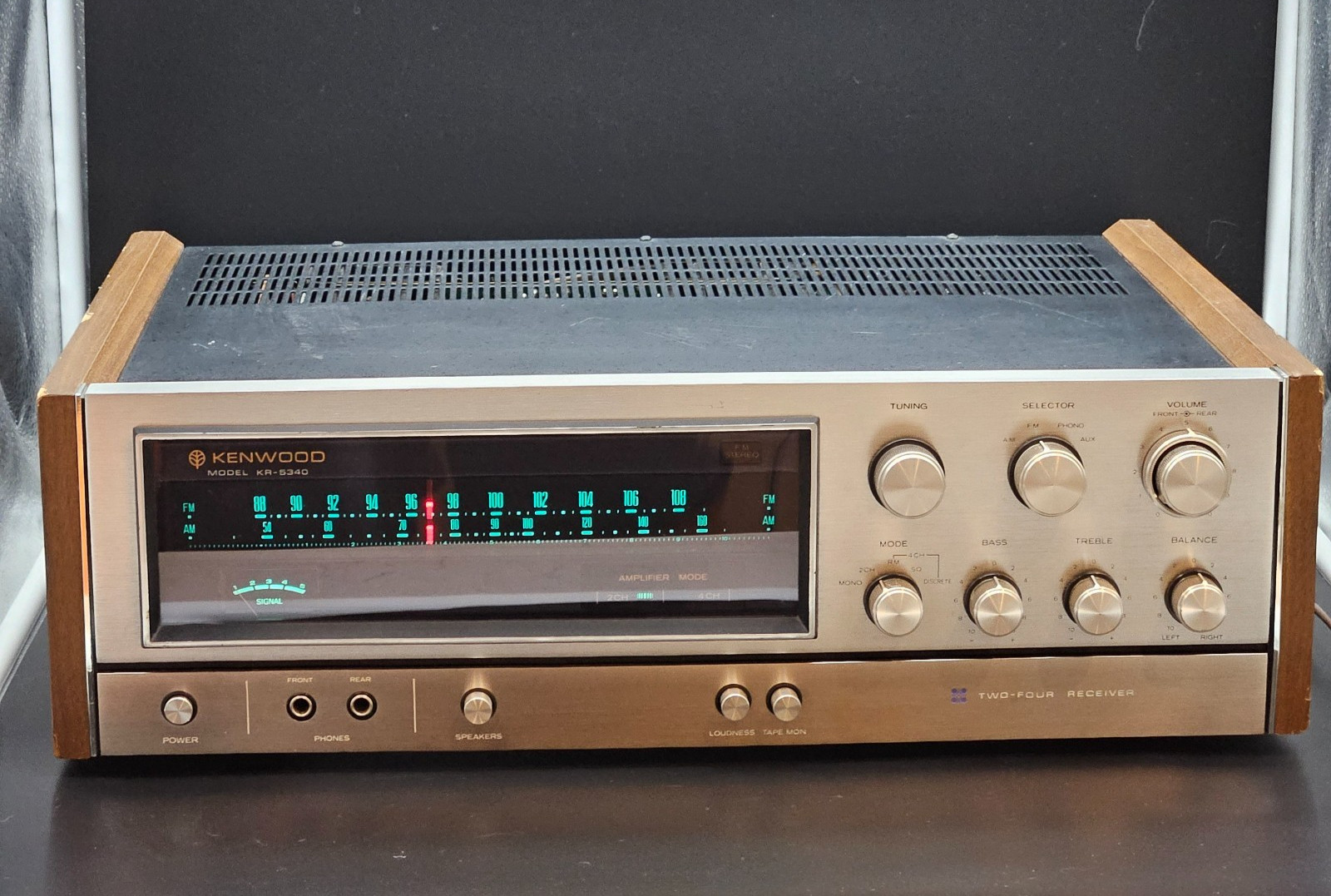

The receiver is in very good overall cosmetic condition for its age. The brushed-metal faceplate, illuminated tuning dial, controls and wood side panels present especially well.

Please read this section carefully before purchasing.

The internal tuning flywheel has distorted/bulged with age. As the flywheel rotates, the enlarged area contacts the surrounding mechanism once during each revolution.

Tuning still functions and the dial can be moved through its range, but the tuning control becomes noticeably harder to turn at the point where the flywheel makes contact and requires some additional force to move past that position.

The affected flywheel is shown in the listing photographs. This is a known mechanical defect and the tuning mechanism should be considered in need of future service or repair. No claim is being made that this is a simple adjustment.

Introduced during the early-1970s quadraphonic audio era, the KR-5340 was part of Kenwood\'s \"Two-Four\" receiver series. Four internal power amplifier channels allow operation as a true 4-channel receiver, while the amplifier sections are combined in conventional 2-channel mode for greater stereo output.

The receiver was designed for several competing quadraphonic formats of the period. Built-in SQ and RM matrix decoding allows compatible matrix-encoded records and program material to be reproduced through four speakers, while a discrete 4-channel source can also be connected. An external CD-4 demodulator can be used through the receiver\'s four-channel inputs.

• Vintage Kenwood Two-Four receiver
• AM/FM stereo tuner
• 2-channel stereo and 4-channel quadraphonic operation
• Four internal amplifier channels
• Built-in SQ matrix quadraphonic decoder
• Built-in RM matrix quadraphonic decoder
• Discrete 4-channel source capability
• External CD-4 demodulator compatibility
• Phono input for turntable use
• Front and rear AUX channel inputs
• Front and rear tape-monitor connections
• DIN tape connections
• Front and rear headphone outputs
• Front and rear speaker outputs
• FM detector output
• Signal-strength meter
• Bass and treble controls
• Balance control
• Loudness control
• Wood side panels
• Made in Japan

• Rated stereo output: approximately 25 watts per channel into 8 ohms
• Rated 4-channel output: approximately 10 watts per channel into 8 ohms
• Rated total harmonic distortion: less than 0.8%
• Frequency response: approximately 20 Hz to 20 kHz
• Speaker impedance: 4 to 16 ohms

Contemporary independent testing found that the KR-5340 substantially exceeded its conservative rated power before clipping, making it an interesting receiver both as a conventional stereo component and as a surviving example of early quadraphonic audio technology.

Cosmetic condition is very good for its age. The faceplate is particularly attractive, with clean controls, a well-presenting tuning display and intact wood side panels. Normal light signs of age and prior use may be present.

The primary issue is the distorted tuning flywheel described above. Tuning remains operational, but the control binds once during each flywheel revolution and requires additional effort to move past that point.

Please inspect all listing photographs carefully, including the photographs showing the affected tuning mechanism, for the best representation of the exact condition.

• Kenwood KR-5340 Two-Four AM/FM Receiver
• Attached AC power cord

• Speakers
• Audio cables
• External CD-4 demodulator
• Other accessories unless specifically shown in the photographs

The KR-5340 is a distinctive survivor from the early-1970s quadraphonic era, when manufacturers were developing equipment capable of supporting both traditional stereo and emerging four-channel formats. Its built-in SQ and RM decoding, discrete four-channel capability and Kenwood \"Two-Four\" amplifier architecture make it especially interesting for collectors of vintage Kenwood equipment and period quadraphonic audio.

The buyer will receive the exact Kenwood KR-5340 shown in the listing photographs.
