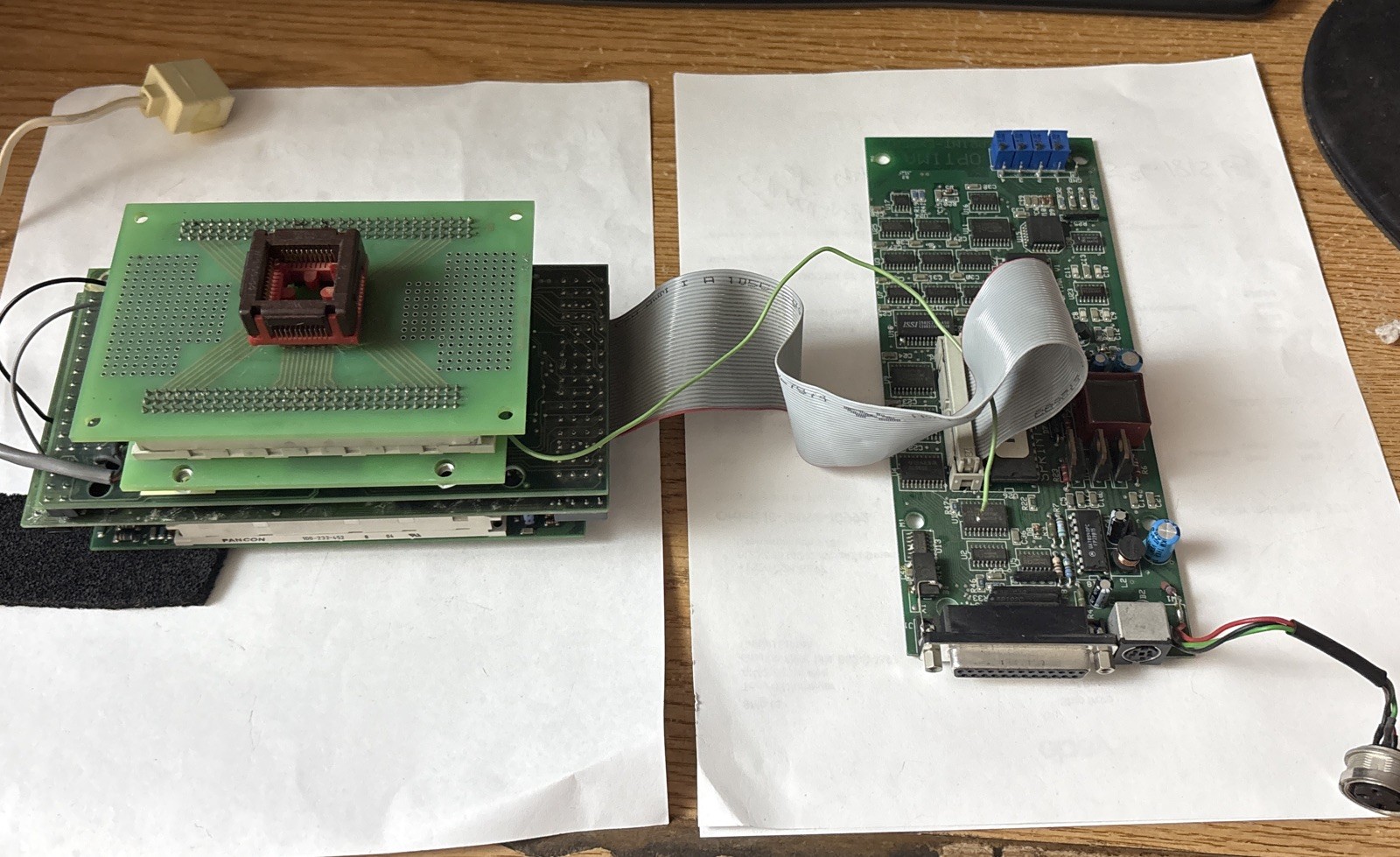

SMS Sprint Programmer Multi-Board Adapter Assy Model 207 BV7DEC1 TOP 1B B817021 with BGA Socket. System Context: These modular adapters are designed to interface with legacy SMS (Schmid Engineering / Data I/O) Sprint series chip programmers (such as the Sprint Expert or Sprint Plus48). They allow a master programmer to send data concurrently across multiple target chips or socket modules.Architecture: The set consists of primary logic host boards connected via flat grey ribbon cables to secondary green "TOP" adapter boards (marked with text designations like TOP 1B B817021). The smaller sub-boards feature central test sockets/ZIF placements intended for mounting or expanding IC packages.Description:Up for sale is a rare, vintage industrial SMS Sprint Programmer Multi-Board Adapter Assembly (Model 207 / Part Number: BV7DEC1). This modular gang-programming array features four primary logic driver boards interconnected via heavy-duty flat ribbon cables to four matching green top interface modules designated as "TOP 1B B817021".Crucially, each of the four top boards features an integrated, high-performance open-top BGA (Ball Grid Array) Zero Insertion Force (ZIF) test/burn-in socket. This system was originally engineered to interface with vintage high-end SMS (Schmid Engineering / Data I/O) Sprint series chip programming stations (such as the Sprint Expert or Sprint Plus48 platforms), enabling concurrent engineering workflows and concurrent data transfer across multiple BGA IC layouts.Design & Construction:- Triple-Layer Stacked Modular Design: Features a top-tier green ZIF BGA adapter card that stacks directly onto an intermediary logic motherboard via high-density pin headers.- Interconnect Infrastructure: The stacked logic modules connect down to a dedicated base interface/communication board via a multi-pin
flat grey ribbon cable assembly. -Build Quality: Clean, uncorroded gold-plated pin headers and tight physical stacking alignments across all components.Condition:- Used vintage industrial hardware.
- Unit has been partially disassembled for inspection and clarity; it will ship exactly as shown in the listing photographs.
-Due to the highly specialized nature of this vintage equipment and a lack of a parent host system to interface with on our end, this item is being sold AS-IS, - Cosmetic condition is very good overall with clean board traces, intact pins, and spring-loaded open-top socket frames that actuate smoothly.What’s Included:- (4) SMS Sprint Logic Motherboards
- (4) TOP 1B B817021 Interface Sub-Boards with Integrated Open-Top BGA Test Sockets
- Interconnecting Flat Ribbon Cables & Wire bundles (as pictured in full assembly layout).Shipping & Handling:The entire assembly will be carefully packed inside static-shielded packaging with robust bubble padding to ensure safe transit. Shipped promptly with tracking. Please reach out with any questions prior to purchase!
