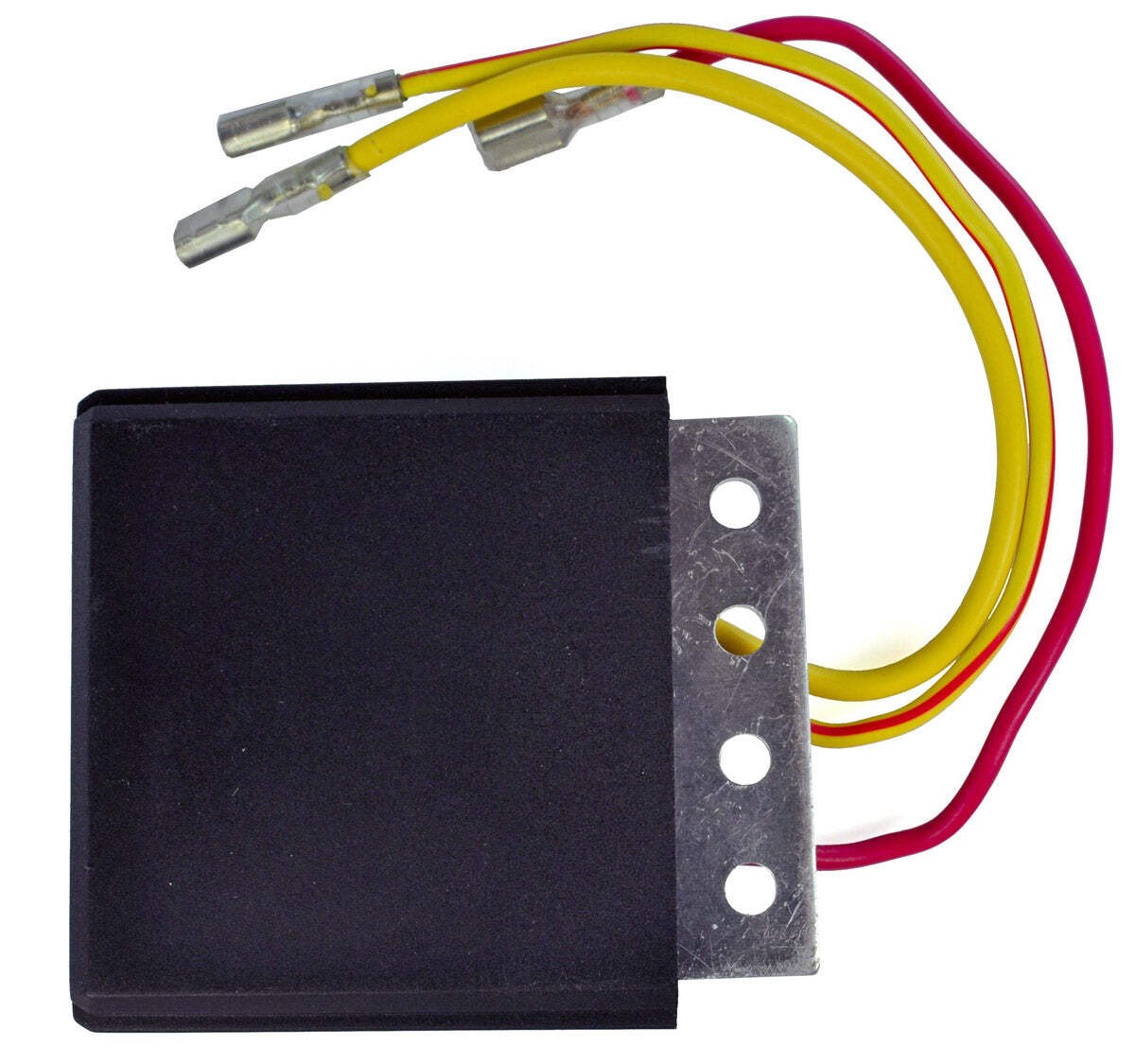

Voltage Regulator Rectifier for Polaris Trail Boss, Scrambler & Xplorer 1989-1999 Voltage Regulator Rectifier for Polaris Trail Boss, Scrambler and Xplorer Polaris Trail Boss, Blazer, Xplorer, Scrambler and Sportsman L 250 300 350 400 - 1989 to 1999 - RMSTATOR RM30T06 This is a brand new voltage regulator rectifier for the Polaris Trail Boss, Blazer, Xplorer, Scrambler and Sportsman L in 250, 300, 350 and 400 form, built between 1989 and 1999. It carries RMSTATOR part number RM30T06 and is a direct replacement to your original unit, using the same compact three pin plug so it drops straight onto the standard harness with no assembly and no wiring changes. The regulator rectifier is the part that turns the alternating current coming off the stator into usable direct current and then holds that output steady, protecting the battery from both undercharging and overcharging. This replacement uses a higher grade of electrical components than the factory unit, with an improved heat sink and improved charging capability, and the quality exceeds the OEM equipment it replaces. Every unit is tested before it leaves the warehouse, and it is dispatched from the UK. Key Features Brand new voltage regulator rectifier, not a refurbished part Direct replacement to your original unit Plug and play, direct fit, easy installation No assembly needed before fitting Higher grade of electrical components Improved heat sink Improved charging capability Quality exceeds the OEM equipment Compact three wire, three pin design as fitted at the factory Rated to 25 A / 300 W Tested before shipping RMSTATOR part number RM30T06 Technical Specs Specification Detail Part Number RM30T06 Width 62 mm Length 73 mm Height 19 mm Wires Length 115 mm Number of Plugs 3 Number of Wires 3 Number of Pins 3 Minimum Charging Voltage 14.5 V +/- 0.5 V Maximum Charging Current 25 A / 300 W Open Circuit Voltage < 15 V Operation Temperature -20°C to 85°C Vehicle Fitment Guide Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering. Make & Model Years Polaris Trail Boss 1989-1999 Polaris Blazer 1989-1999 Polaris Xplorer 1989-1999 Polaris Scrambler 1989-1999 Polaris Sportsman L 1989-1999 Engine sizes covered 250, 300, 350 and 400 OEM Part Number Cross Reference Aftermarket replacement. OEM part numbers are listed for reference only. Part Number Manufacturer / Brand 4060193 Polaris 4060087 Polaris RM30T06 RMSTATOR Frequently Asked Questions Does it fit without modification? Yes. It is a direct replacement to your original unit with the same three pin, three wire arrangement, so it plugs into the standard harness. No assembly is needed and nothing has to be cut or spliced. Polaris used several regulators across this eleven year span, so check the number on the unit you are removing against the cross reference table above. What is included? The voltage regulator rectifier itself, with three wires of 115 mm and its three pin plug, ready to connect. No additional hardware is listed for this item, so retain the original mounting bolts. How do I tell whether the old unit has failed? Measure the voltage at the battery terminals with the engine running. A healthy system on this machine should be charging at around 14.5 V +/- 0.5 V. A reading that stays down at battery voltage means the unit is not charging, while a reading climbing well above 15 V means it is no longer regulating and the battery is being cooked. Flat batteries after short runs, dim or flickering lights and bulbs that keep blowing are all typical symptoms. Where does this unit mount and does it need airflow? It is a compact unit at 62 mm wide, 73 mm long and 19 mm high, and it fits in the original location. It is rated to a maximum of 25 A / 300 W and to operate from -20°C to 85°C. As with any regulator rectifier, keep the improved heat sink clear of mud and debris so it can shed heat, since heat is what kills these units. Dispatched from the UK · 12-month warranty · Fitment support from our technical team Voltage Regulator Rectifier for Polaris Trail Boss, Scrambler & Xplorer 1989-1999 Voltage Regulator Rectifier for Polaris Trail Boss, Scrambler and Xplorer
Polaris Trail Boss, Blazer, Xplorer, Scrambler and Sportsman L 250 300 350 400 - 1989 to 1999 - RMSTATOR RM30T06
This is a brand new voltage regulator rectifier for the Polaris Trail Boss, Blazer, Xplorer, Scrambler and Sportsman L in 250, 300, 350 and 400 form, built between 1989 and 1999. It carries RMSTATOR part number RM30T06 and is a direct replacement to your original unit, using the same compact three pin plug so it drops straight onto the standard harness with no assembly and no wiring changes.
The regulator rectifier is the part that turns the alternating current coming off the stator into usable direct current and then holds that output steady, protecting the battery from both undercharging and overcharging. This replacement uses a higher grade of electrical components than the factory unit, with an improved heat sink and improved charging capability, and the quality exceeds the OEM equipment it replaces. Every unit is tested before it leaves the warehouse, and it is dispatched from the UK.
Key Features
- Brand new voltage regulator rectifier, not a refurbished part
- Direct replacement to your original unit
- Plug and play, direct fit, easy installation
- No assembly needed before fitting
- Higher grade of electrical components
- Improved heat sink
- Improved charging capability
- Quality exceeds the OEM equipment
- Compact three wire, three pin design as fitted at the factory
- Rated to 25 A / 300 W
- Tested before shipping
- RMSTATOR part number RM30T06
Technical SpecsSpecificationDetailPart NumberRM30T06Width62 mmLength73 mmHeight19 mmWires Length115 mmNumber of Plugs3Number of Wires3Number of Pins3Minimum Charging Voltage14.5 V +/- 0.5 VMaximum Charging Current25 A / 300 WOpen Circuit Voltage< 15 VOperation Temperature-20°C to 85°CVehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
Make & ModelYearsPolaris Trail Boss1989-1999Polaris Blazer1989-1999Polaris Xplorer1989-1999Polaris Scrambler1989-1999Polaris Sportsman L1989-1999Engine sizes covered250, 300, 350 and 400OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
Part NumberManufacturer / Asked QuestionsDoes it fit without modification?
Yes. It is a direct replacement to your original unit with the same three pin, three wire arrangement, so it plugs into the standard harness. No assembly is needed and nothing has to be cut or spliced. Polaris uséd several regulators across this eleven year span, so check the number on the unit you are removing against the cross reference table above.
What is included?
The voltage regulator rectifier itself, with three wires of 115 mm and its three pin plug, ready to connect. No additional hardware is listed for this item, so retain the original mounting bolts.
How do I tell whether the old unit has failed?
Measure the voltage at the battery terminals with the engine running. A healthy system on this machine should be charging at around 14.5 V +/- 0.5 V. A reading that stays down at battery voltage means the unit is not charging, while a reading climbing well above 15 V means it is no longer regulating and the battery is being cooked. Flat batteries after short runs, dim or flickering lights and bulbs that keep blowing are all typical symptoms.
Where does this unit mount and does it need airflow?
It is a compact unit at 62 mm wide, 73 mm long and 19 mm high, and it fits in the original location. It is rated to a maximum of 25 A / 300 W and to operate from -20°C to 85°C. As with any regulator rectifier, keep the improved heat sink clear of mud and debris so it can shed heat, since heat is what kills these units.
