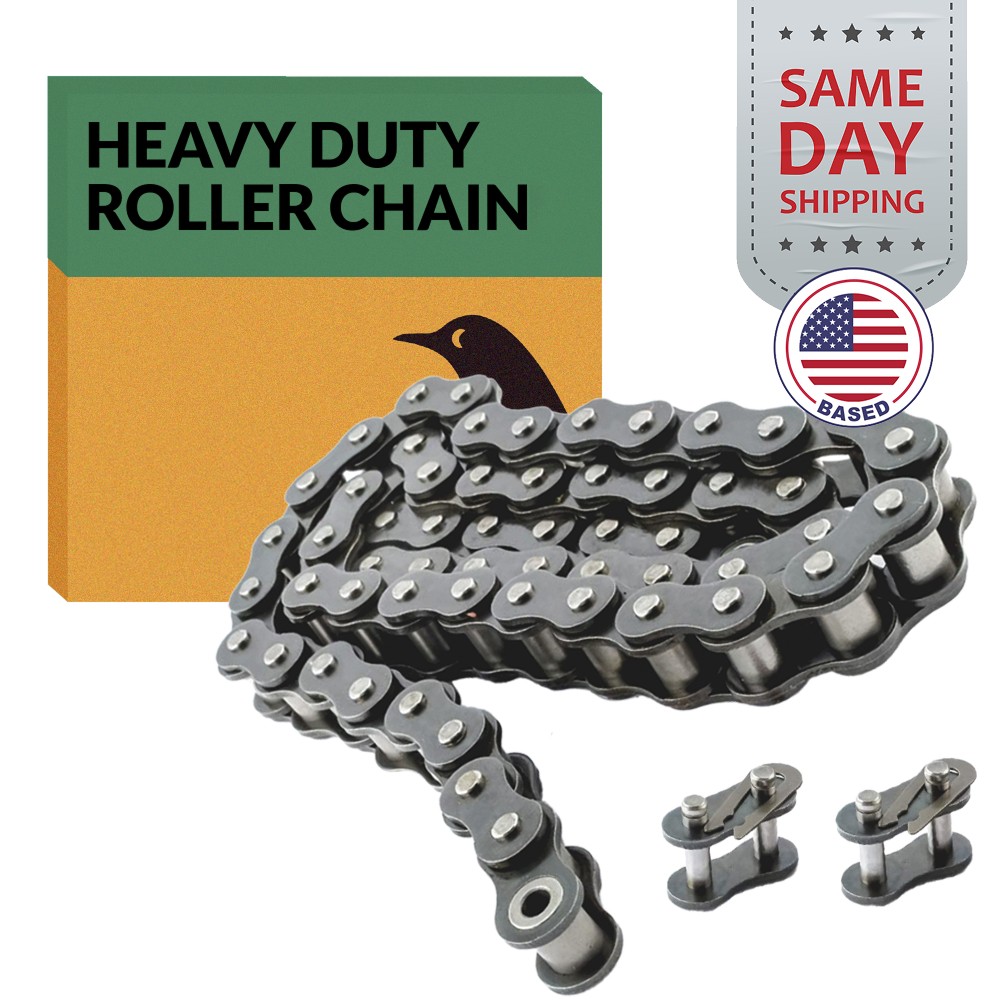

#120H Roller Chain x 10 feet
ANSI Chain No.: #120H
Lenght: 10 feet
Pitch (P): 1.5 inch (38.1 mm)
Roller Diameter (d1 max): 0.875 inch (22.23 mm)
Width Between Inner Plates (b1 min): 0.992 inch (25.22 mm)
Pin Diameter (d2 max): 0.437 inch (11.1 mm)
Pin Lenght (L max): 2.106 inch (53.5 mm)
Pin Lenght (Lc max): 2.264 inch (57.5 mm)
Inner Plate Depth (h2 max): 1.405 inch (35.7 mm)
Plate Thickness (T max): 0.220 inch (5.60 mm)
Ultimate Tensile Strenght (Q min): 127/28864 kN/LB
Average Tensile Strenght (Qo): 160.9 kN
Weight (q): 4.435 lb/ft (6.6 kg/m)
