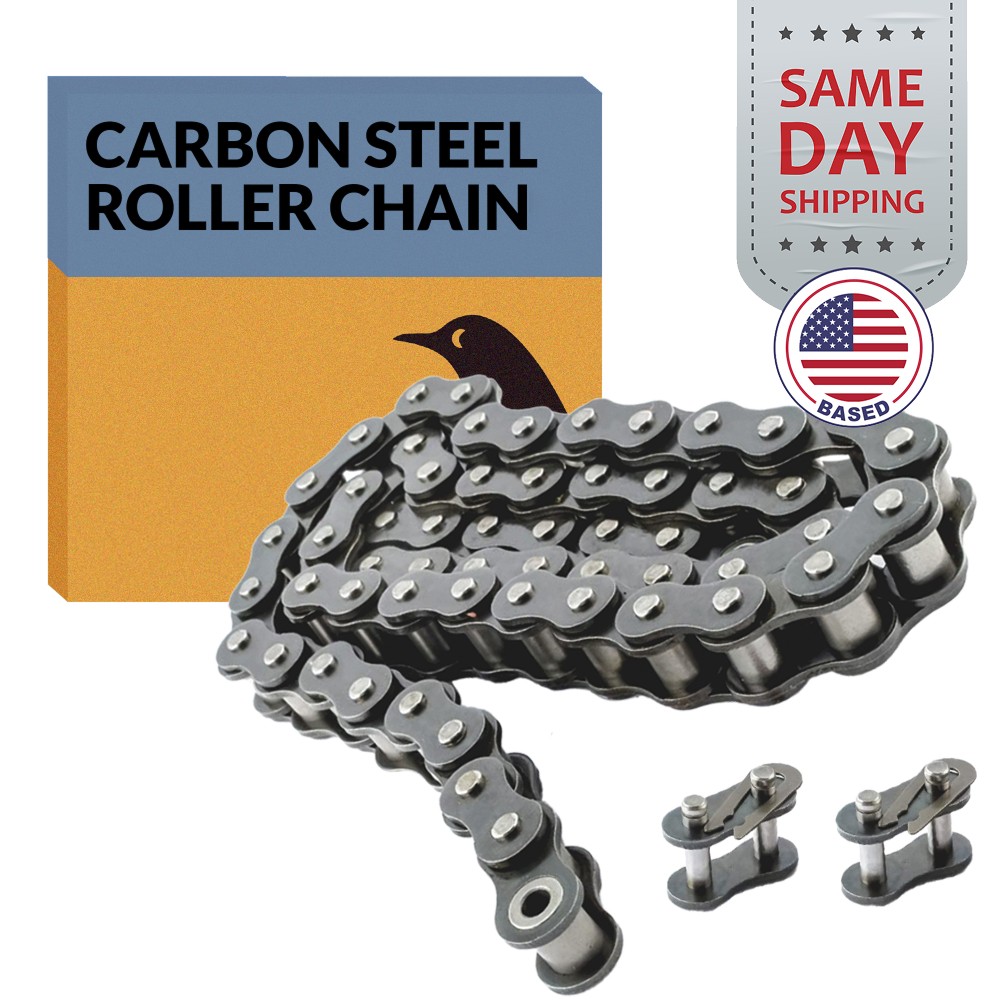

ANSI Chain No.: #160
Lenght: 10 feet
Pitch (P): 2 inch (50.80 mm)
Roller Diameter (d1 max): 1.12 inch (28.58 mm)
Width Between Inner Plates (b1 min): 1.24 inch (31.55 mm)
Pin Diameter (d2 max): 0.56 inch (14.27 mm)
Pin Lenght (L max): 2.55 inch (64.8 mm)
Pin Lenght (Lc max): 2.74 inch (69.60 mm)
Inner Plate Depth (h2 max): 1.88 inch (47.80 mm)
Plate Thickness (T max): 0.25 inch (6.40 mm)
Ultimate Tensile Strenght (Q min): 226.80/51545 kN/LB
Average Tensile Strenght (Qo): 278.9 kN
Weight (q): 10.10 lb/ft (4.5 kg/m)
