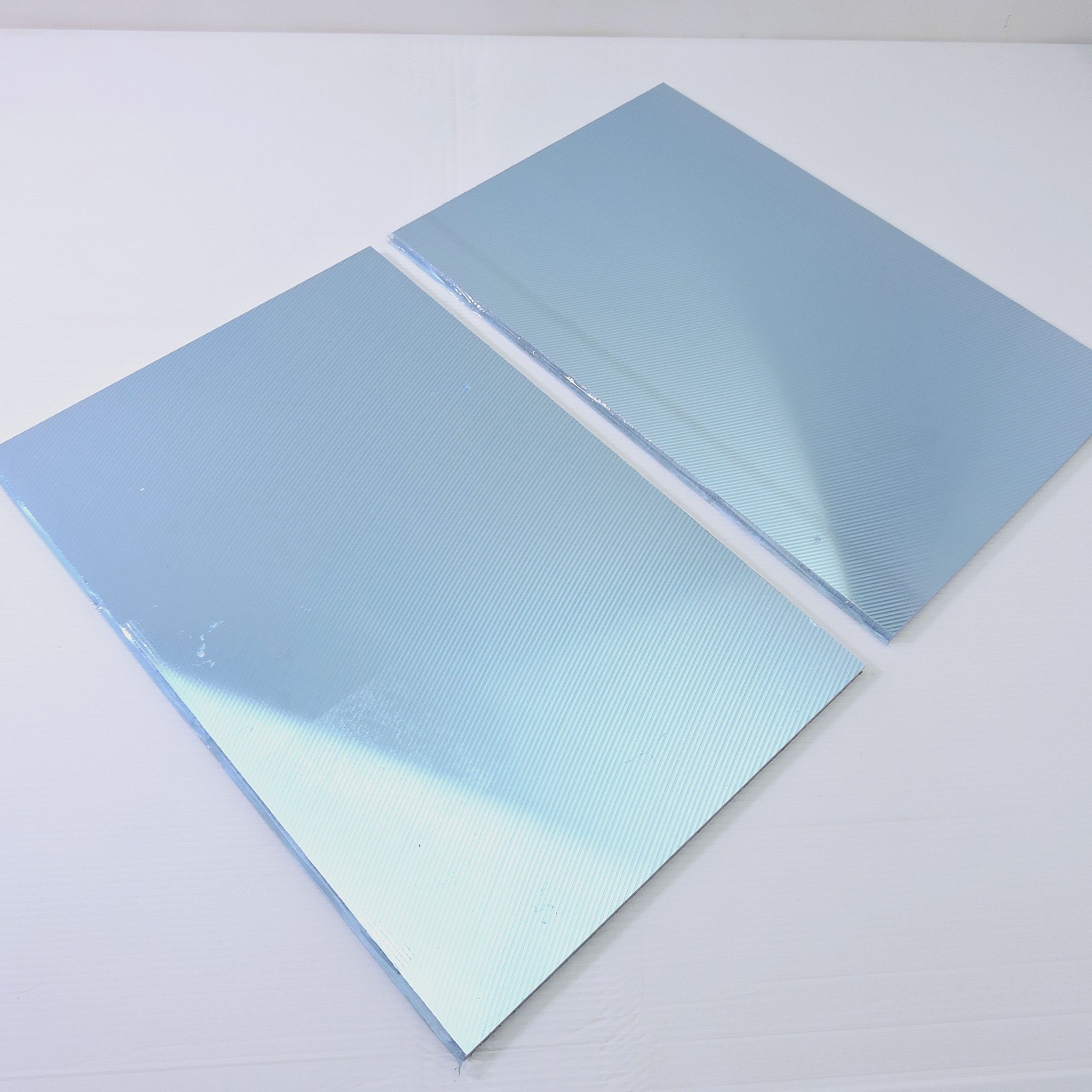

- CAST PLATE Aluminum
Precision Cast Tool and Jig Plate
Produced in Germany
Number of pieces included in listing: 2
Dimensions
Thickness 0.25
inches Width 10 inches Length 15.375 inches
Item measurements are at or on the plus side of the dimensions provided.
This plate is new and meets all mill tolerances and specifications, minor surface scratches, edgeand corner nicks may be present.Unless otherwise noted the plate contains the manufactures protective film which covers the face of the plate.
This Cast Plate ismanufacturedin Germany by Gleich Aluminium. Gleich is the Europeanmarket leader in the production of high qualityprecisionCast Aluminum Plate.
See Technical specifications below.
Please visit our store to see all ALUMINUM productsand sizes available.
Click on the blue door BELOW to be redirected to our store where you canfilter by product and thickness.
We strive to provide an outstanding product and exceptional customer service. We will earn your positive response. If for some reason the product or service does not meet your expectations, we would appreciate the ability to make it right, please contact us.
Thanks you for shopping at USA Metal Online
Technical Data Sheet
G.AL® C250 - precision milled plate Plate's Characteristics
Alloy
EN /AA 5083
Type of Alloy
non heat treatable
Temper
homogenised and stress relieved
Surface
precision milled, roughness Ra 0,4 µm, foiled on both sides
Mechanical Properties 1)
Typical values
Yield strength Rp0,2
[ksi]
16 - 19
Ultimate tensile strength Rm
[ksi]
33 - 42
Elongation A 5
[%]
10 - 15
Hardness HBW
[2.5/62.5]
68 - 75
Physical Properties 1)
Typical values
Density
[lbs/cu in.]
0.096
Module of elasticity
[ksi·103]
10.2
Electrical conductivity
[% IACS]
29 - 32
Coefficient of thermal expansion
[10-6 /°F]
13.1
Thermal conductivity
[BTU in/ft2hr°F]
760 - 900
Specific heat capacity
[BTU/lb°F]
0.214
Processing Characteristics 2)
Dimensional stability
1
Machinability
2
Erodability
1
Weldability (Gas / TIG / MIG / Resistance / EB)
4 / 2 / 2 / 2 / 1
Corrosion resistance (seawater / weather/ stress cracking)
1 / 1 / 3
Use at temperatures (max°F / long / short / terms) 3)
356 / 536
Anodising (technical / decorative / hard-) 4)
2 / 4 / 2
Polishability
2 - 3
Etching
4 - 5
Contact with food (according to EN 602)
yes
Tolerances
Thickness in [in]
Flatness [in] 5)
Thickness [in]
Width & Length [in]
0.250
0.030
+/- 0.004
-0 / + 0.79
< 0.500
0.015
+/- 0.004
-0 / + 0.79
> 0.500
0.005
+/- 0.004
-0 / + 0.79
cuts
DIN ISO 2768-1(m)
Date: 15.07.2015
-
Typical values at room temperature.
-
Ratings evaluation rating from 1 (very good) to 6 (inapplicable).
-
Without loss of strength after cooling down.
-
Technical anodising only - no warranty towards optical demands.
-
Surface flatness for whole plates is measured with a special, 1 meter long, digital flatness ruler.
G.AL® is a registered trademark of GLEICH-Group
