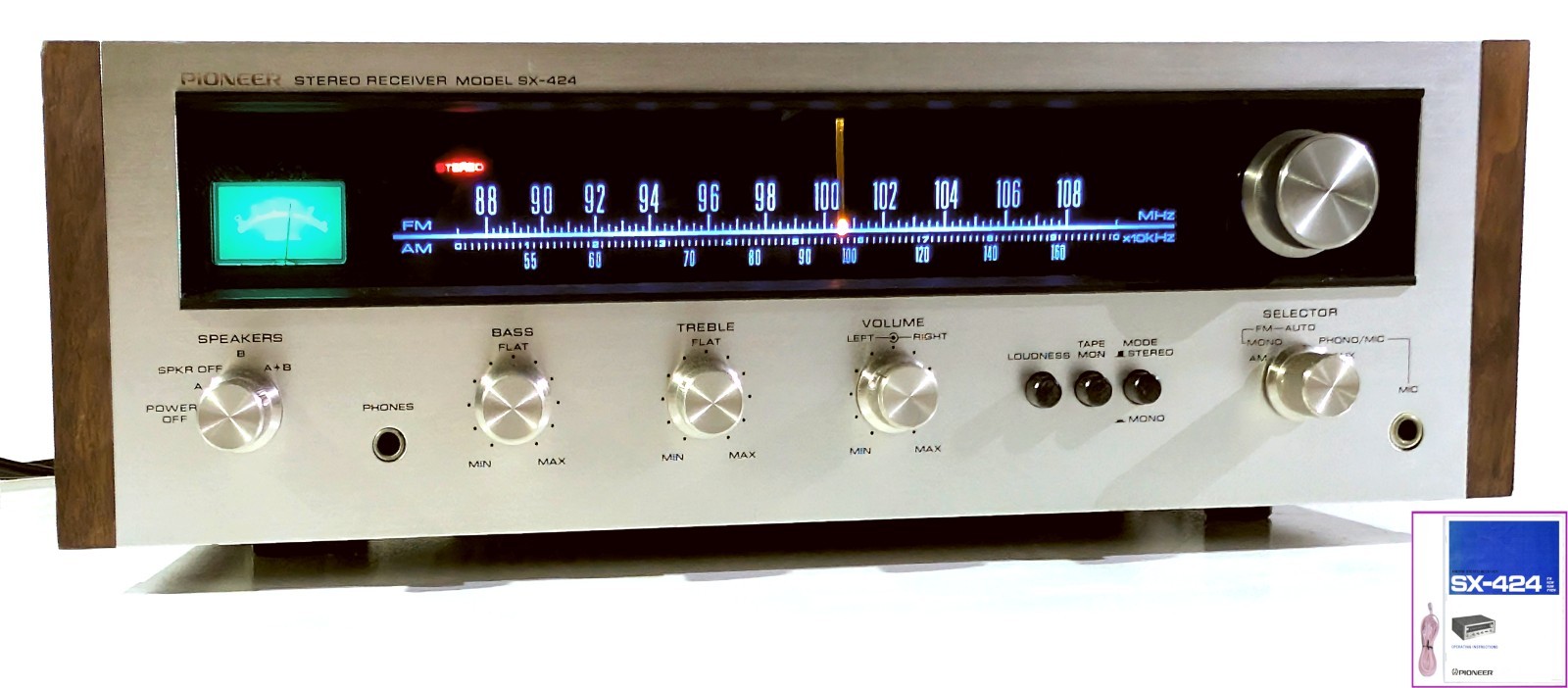

🔥【PRO SERVICED】Pioneer SX-424 Stereo 24W Receiver ~XSTR/CAP/LED MODS💥GUARANTY For Sale

Since 1999 Thanks for viewing our listing, please read all the information given!
We do our best to honestly and accurately describe all items, but we are only human and it is possible that we may make oversights or errors. If there is any doubt, or contradicting information, please ask first before buying or making an offer.We ask that all our buyers give us the chance to discuss any issues.~~~ By buying this item, or making a Best Offer, you agree to contact us before leaving less than positive response, any rating less than 5, or starting a return. ~~~See what our previous refurb customers had to say!
NICE MACHINE!!!!! A+++++ 5 gold star e-bayer all the way Thanks Great seller! Brilliant refurbishing job on an old relic from the 1990s! Fantastic - Went above & beyond to make sure everything was right - yay! Arrived in time and well packed. Great condition and great sound, as described. Awesome amp, shipped very quickly! Also, EPIC packing! Great seller! WOW great company! Highly recommended. Great communication and service. well packed, arrived safely, works great, looks awesome. Thank you.
With their high build quality and impressive performance, Pioneer is recognized as one of the premium makers of high-end equipment for the audiophile since the late '30's! Released in 1972, with attention to outstanding performance and versatility, the SX-424 is perfect for those who prefer quality over volume. It retailed for $200, that's just over $1,600 today!With its extraordinary engineering, advanced design concept and extreme flexibility, Pioneer's SX-424 AM-FM stereo receiver offers a level of performance that can only be described as awesome. Its exceptional FM reception is achieved through the use of a low-noise FET RF amplifier and FM Muting circuit. So it cleanly and clearly picks up stations that were once just numbers on the dial - without interference. There's also a front-panel Mic input and the ability to use the Tape Loop as expansion jacks for 4-channel applications!The front panel offers a multi-position Speaker Output selector, concentric R & L Volume controls, click-stop Bass & Treble controls, and buttons for Stereo/Mono, FM muting and a Loudness button that contours the sound dynamics perfectly for low level listening.While the manual gives this a "Music Power" rating of 50 watts @ 4Ω, we prefer to use the more reasonable "Continuous Power" rating of 24 Watts, 12 W/Ch into 8Ω, or 26 Watts, 13 W/Ch into 4Ωwith both channels fully driven. Remember, these are what audiophiles call "Vintage Watts," from an era where, unlike today, it was a sin to manipulate or elaborate the power ratings!The front panel has both 1/4" Headphone & Mic jacks while the rear offers two speaker zones, an Aux Input, a Tape Loop with the PLAY/REC DIN jack found in the higher-end offerings of the era that's also ready for 4-Channel applications, and a stereo Phono Input with a grounding post for your turntable! It also has multiple antenna terminals, an attached AM antenna, two AC outlets, switched & unswitched, a power fuse-holder and user-access to the protection fuses. It weighs in at just under 17 lbs and measures 13-3/4" x 5-3/4" x 17" wide!

NOTE: This receiver uses Pioneers speaker connectors for connecting your speakers to the custom speaker jacks. We are including the pictured pair for using the main speaker outputs, you will need an additional set to use the second speaker outputs. They are available from multiple sellers.

By "The Best, Ltd." policy this unit will be double-boxed for secure shipment.The Free Shipping is for the Lower 48 only, HI & AK must select USPS Priority shipping at checkout!Insurance & Signature are covered on us!Paid itemscan be picked up in the Denver Metro area at no charge.

Condition:This beautiful receiver is in"Very Good" condition with minor signs of use and a nice, clean front panel! Aside from a few scuffs and a touched-up spot to the veneer, the only other thing worth mentioning is just a few light front panel scuffs, most too faint to see well in the pics. All original knobs are present & complete,as are the feet and attached AM antenna &AC cord.The manual had gone missing, so we are including the pictured copy.A bonusNEWFM Dipole Antenna is also included. All comes in the pictured generic box with custom Styrofoam packing.Please do inspect all the pictures thoroughly for actual condition.Service:On inspection, this unit was working but had scratchy or inconsistent controls and a dim dial, so as with all vintage receivers it went to our tech for servicing.First, Pioneer used certain transistors throughout this model that have known issues after 40 years. So, whether or not they were still working, our tech insists on replacing these transistors as they will assuredly fail some time in the near future.While our tech does not believe in doing a "shotgun" style "re-cap" on most gear made from the late '70's on, he does make sure there are no capacitors with detectable or known issues.This receiver had several of the blue Sanyo caps that are known to fail along with several that showed signs of overheating or degradation, so they were all upgraded!A total of 17 transistorsand 12 electrolytic capacitors were upgraded to brand new. high quality parts from Onsemi, Nichicon, Rubycon, etc., no used or NOS components!It's this kind of thoughtful, preventative servicing that makes it smart to buy from a company with an experienced, in-house technician!Only one lamp was still working, but as it was most likely going to fail soon all the lamps were replaced with long-life LED's!We installed the new frosted CoolWhite LED's in the dial which shinethroughthe blue dial with betterconsistently, then a Green LED was chosen for the meter that contrast the dial beautifully.But if you prefer a Warm White LED that shines through the meter with the original bluecolor, just let us know BEFORE buying or sending an offer and we will switch it out for you free of charge!Even the Stereo indicatorand the hard to replace pointer lampwere upgradedso you won't have to worry about them ever again.In fact, we weren't happy with the lack of illumination the unidirectional LED's give on these pointers, others just resort to using an incandescent. But as longevity is the whole idea behind the LED upgrade, our tech has come up with a custom way to install a 1-segment LED that illuminates the pointer much better.All vintage receivers receive the following services and much more, all performed by our qualified technician:

• Lid is removed & unit is inspected to determine if any attempted amateur repairs exist that need to be corrected, or substandard parts that need replacement
• The exterior, all knobs & plexis are cleaned & detailed
• While the front panel is removed for cleaning, all attachments are re-glued and dried out foam inserts replaced.
• All switches & pots are cleaned internally with Specialist Contact Cleaner (proven superior to DeoxIT by our customers), while those with special needs receive the less aggressive DeoxIT F-5
• All lamps that are out, or believed to be prone to failure, are replaced if necessary. LEDs are used whenever compatible
• Any faulty components, or those with known issues, such as jacks, fuse-holders, feet, etc., are replaced
• All PC boards are inspected; all questionable solder joints are re-flowed
• All electrolytic caps are inspected for bulging or leakage, those that are at risk or have known issues are checked with the Huntron Tracker (allows evaluation while in-circuit so component does not need to be removed). All questionable caps are replaced with brand new parts, not NOS!
• DC offset is adjusted & channel levels are calibrated & balanced
• Tuner is cleaned and both AM & FM aligned
• Front panel is cleaned & detailed before reassembly
• Cabinet is cleaned & detailed, any wood is polished with Old English

Testing:After servicing, we set it up on our test bench and it did not disappoint, both channels drove our speakers with the warm, distortion-free audio these analog receivers are known for. All inputs and features were confirmed operational and the tuner spins smoothly. We are in a remote area so we did need to use the included antenna to pull in all our local FM stations with the included wire antenna, activating the tuning meter and lighting the Stereo lamp. Further testing was performed, if there is a specific feature you would like to know more about just let us know before buying. What a great find for the vintage audiophile!
**FREE SUPPORT MUST BE UTILIZED BEFORE RETURN IS REQUESTED!Manufacture Product Information:(sample photos)
PioneerSX-424Stereo AM/FMReceiver (1972-74)

Specscourtesy of hifiengine.com:

Tuning range: FM, MW

Power output: 12 watts per channel into 8Ω (stereo)

Frequency response: 20Hz to 70kHz

Total harmonic distortion: 1%

Damping factor: 40

Input sensitivity: 6.5mV (mic), 3mV (MM), 180mV (DIN), 180mV (line)

Signal to noise ratio: 75dB (MM), 85dB (line)

Output: 180mV (line), 36mV (DIN)

Speaker load impedance: 4Ω to 16Ω

Semiconductors: 1 x FET, 30 x transistors, 24 x diodes

Dimensions: 431 x 146 x 347mm

Weight: 7.9kg

Accessories: FM T-type antenna

This item has minor wear consistent with normal use, please see pics. You will receive exactly what is pictured, no accessories, test equipment or media are offered.
Please do not interpret our efforts as a thorough testing of all elements this equipment has to offer. If there is a particular test you would like performed please let us know before buying and we would be glad to accommodate any reasonable, detailed request.While we do many adjustments, including DC offset & Bias, we cannot guarantee they will remainwithin manufacturer specsafter the rigors of shipment. Regardless, your receiver is fully covered by our FREE Repair, Exchange or Refund Guarantee! Just make sure to use our Free Support first and we will make sure you are 100% happy with your Pioneer!
A note about power ratings:Please remember, there are multiple ways to measure output wattage, "Peak," "Music," "RMS", "Continuous," "Maximum," & "Total" just to name a few. In addition, this value can change drastically depending on the impedance of the speakers being driven. Typically, our title will give the "Total watts" value, while the description will give more detailed information. We suggest you do independent research to be assured you are making informed comparisons when shopping.Internet State Sales Tax:
In June 2018, The Supreme Court mandated that all States may charge & collect State Sales Tax on all internet purchases shipped into their state. Many states have begun the process and now automatically charges this tax on checkout. Your seller has absolutely nothing to do with this process and receives none of these funds!
As of Dec, 2020 the following states charge, or plan on charging, State Sales Tax on all orders shipped to their state.
AL, AR, AZ, CA, CO, CT, DC, FL, GA, IA, ID, IL, IN, KS, KY, LA, MA, MD, ME, MI, MN, MO, MS, NC, ND, NE, NJ, NM, NV, NY, OH, OK, PA, RI, SC, SD, TN, TX, UT, VA, VT, WA, WI, WV, and WY.
More states will surely be added to the list. For questions or more info please contact , or your local State Dept of Revenue.

Important Information:

This item is guaranteed to be as described! Only what is pictured is included, no other items are offered unless otherwise specified with "not pictured". The "Item specifics," "Detailed item description," and "Manufacture information" sections describe the item as it comes new from the manufacturer and may contain accessories or other features not offered in this listing. Remember that description terms can be subjective, so please rely on the pictures provided for actual condition. Buyer understands that there may be issues unknown to us at the time of testing or inspection, and accepts this possibility when buying.

If our listed BIN price isn't within your budget please don't hesitate to send us a reasonable offer, no more than 20% below our current price, and we will get back to you right away! Please understand that any offer made & accepted is a binding agreement with the agreement that payment will be made immediately. Please also remember that we are not just flipping random finds, so we do not haggle. We offer thoughtfully sourced equipment that deserve the hours of specialized servicing and/or testing they have received, so please respect any "Best Price" offer you may receive as an effort to save both our time with a fair, final price.

Buyer pays actual shipping cost as calculated by .* If this is a Free Shipping listing then all offers also include that Free Shipping!*** We package all items very carefully, which means the outer box can be very large. Because of this UPS bills us by "dimensional weight" instead of the actual weight! From our previous response you will find this care, and expense, is much appreciated.
**Free Shipping it is for the lower 48 only and the shipping method may vary.We DO NOT guarantee compatibility or specific usage, please make sure this is what you need before buying! While we do have extensive experience in repair & refurbishing audio gear, we are not experts in the usage of this equipment or the various applications that exist. So we can only guarantee that this works as described and has what is pictured. If specific parts, devices, upgrades, software or expertise is required for use it is entirely the responsibility of the buyer.
