『USA』550W or 750W Mini Lathe Motor 6000rpm For CJ0618 WM210V CD210V Lathe 110V For Sale

【 US Stock & Fast Shipping】
『USA』550W or 750W Mini Lathe Motor 6000rpm For CJ0618 WM210V CD210V Lathe 110V

Good News:We have USA Warehouse in USA,so we will ship this product from USA to you

Package List:

• 1 x 550W or 750W Mini Lathe Motor (Fit for 110VAC Lathe)Shaft Diameter: M10 (‌Φ10mm)

Important Design Note (Mounting Holes)550W Motor: Equipped with two side-mounted threaded mounting holes.750W Motor: NO side-mounted threaded mounting holes.

The motor cannot be directly connected to 110V AC power and must be converted to DC power through the lathe controller!!!

Product Description (550W 110V lathe motor)
About this item

• Specification: Item Type is Mini Lathe Motor; Material: Iron; Power: 550W; Maximum Speed: 6000RPM/min ;Motor Diameter: 83mm/3.3"; Total Length of Motor: 158mm/6.2"; Shaft Length: 20 mm/0.8"; Shaft Diameter: M10; Hole Distance: 50mm/1.96 inch
• Low noise&high torque: This motor runs stably and has low noise. The motor has a high power of 550 W, high torque, high work efficiency, and a maximum speed of 6000 RPM per minute
• Application Models: This motor is mainly used for 0618 3B 7x12" 7x14" 0618 CJ18A and other lathes,can fully compatible
• Material: This motor is made of high-quality iron material, which has high hardness, is not easily deformed, has good durability, and a long service life; The motor cannot be directly connected to 110V AC power and must be converted to DC power through the lathe controller
• Standard size: The electric motor shaft length is 20 mm/0.8", the shaft diameter is M10, with standard hole diameter, which is easy to install and remove.Mini lathe motor replacement,pls directly replace the old or damaged motor on the machine tool,which is convenient and reliable

This motor is made of high-quality iron material, which has high hardness, is not easily deformed, has good durability, and a long service life.

Application Models

• This motor is mainly used for 0618 3B 7x12" 7x14" 0618 CJ18A and other lathes,can fully compatible.

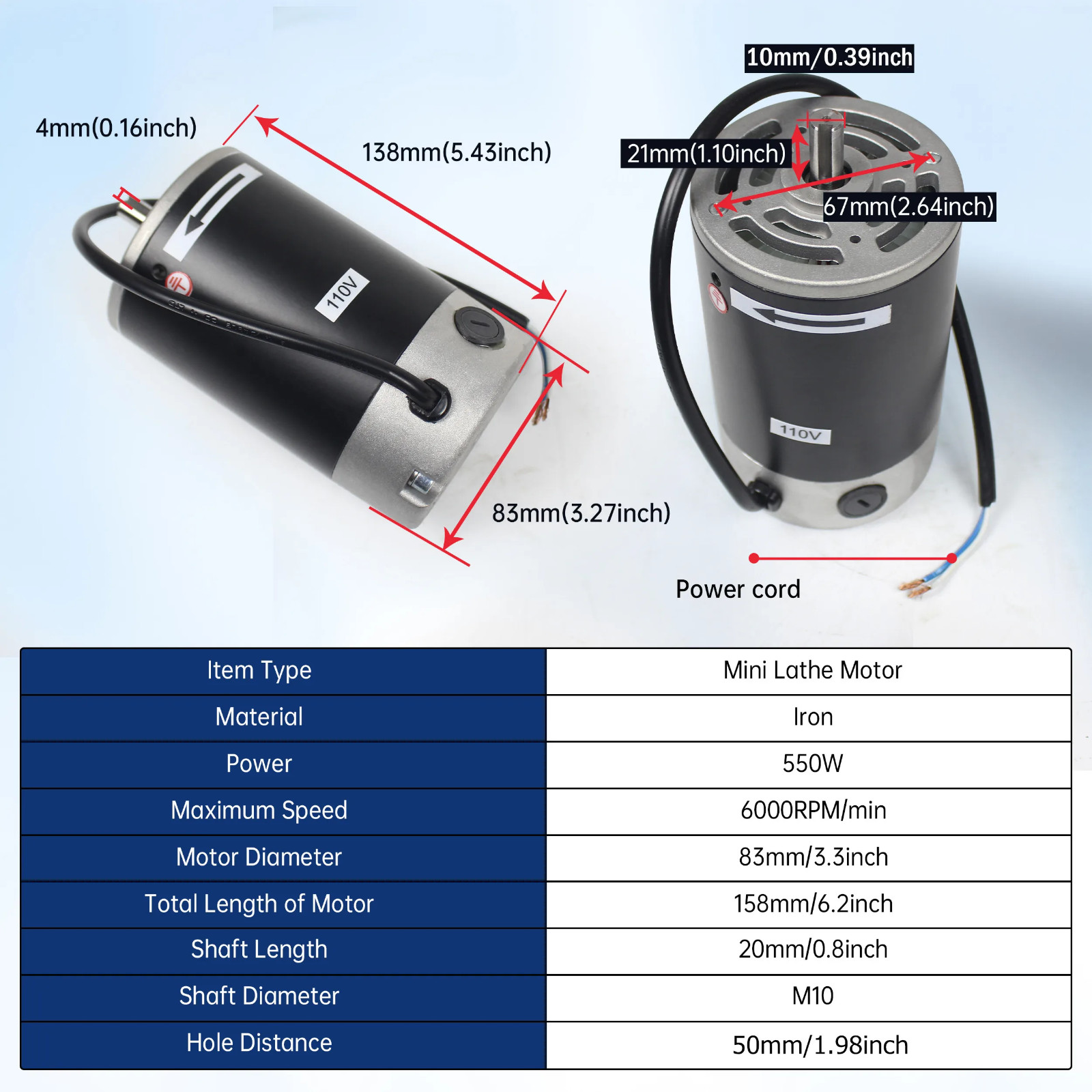

Specification:

• Item Type: Mini Lathe Motor
• Material: Iron
• Power: 550W
• Voltage: 110V (The motor cannot be directly connected to 110V AC power and must be converted to DC power through the controller board)
• Maximum Speed: 6000RPM per minute
• Motor Diameter: Approx. 83mm/3.3inch
• Total Length of Motor: Approx. 158mm/6.2inch
• Shaft Length: Approx. 20mm/0.8inch
• Shaft Diameter: M10
• Hole Distance: Approx. 50mm/1.96inch

How to use:

• Replace the motor on the machine directly.

How to use:

• Replace the motor on the machine directly.

Product Description (750W 110V lathe motor)
About this item

• Specification:Motor Power: 750W; Voltage: 110V; Type: AC motor; Material: Iron; Maximum Speed: 6000 RPM/min; Motor Diameter: 93mm/3.66inch; Total Length of Motor:164mm/6.5inch; Shaft Length: 40mm/1.6inch; Shaft Diameter:M10; Hole Distance:73mm/2.9inch
• Low noise&high torque: This motor runs stably and has low noise. The motor has a high power of 750W, high torque, high work efficiency, and a maximum speed of 6000 RPM per minute
• Application Models: This motor is mainly used for 210 MX210 CD-210V 8x16 220x400 220x600 220x750 and other lathes,can fully compatible; The motor cannot be directly connected to 110V AC power and must be converted to DC power through the lathe controller
• Material: This motor is made of high-quality iron material, which has high hardness, is not easily deformed, has good durability, and a long service life
• Standard size: The electric motor shaft length is 40 mm/1.6inch, the shaft diameter is M10, with standard hole diameter, which is easy to install and remove

Package List:

• 1 x 750W Mini Lathe Motor 110V

This motor is made of high-quality iron material, which has high hardness, is not easily deformed, has good durability, and a long service life.

Application Models

• This motor is mainly used for 210 8x16 220x400 220x600 220x750 and other lathes,can fully compatible.

Specification:

• Item Type: Mini Lathe Motor
• Material: Iron
• Power: 750W
• Voltage: 110V (The motor cannot be directly connected to 110V AC power and must be converted to DC power through the controller board)
• Maximum Speed: 6000RPM
• Motor Diameter: 93mm / 3.66inch
• Total Length: Approx. 164mm / 6.5inch
• Shaft Length: Approx. 40mm / 1.57inch
• Shaft Diameter: M10
• Hole Distance: Approx. 73mm / 2.9inch

How to use:

• Replace the motor on the machine directly.
