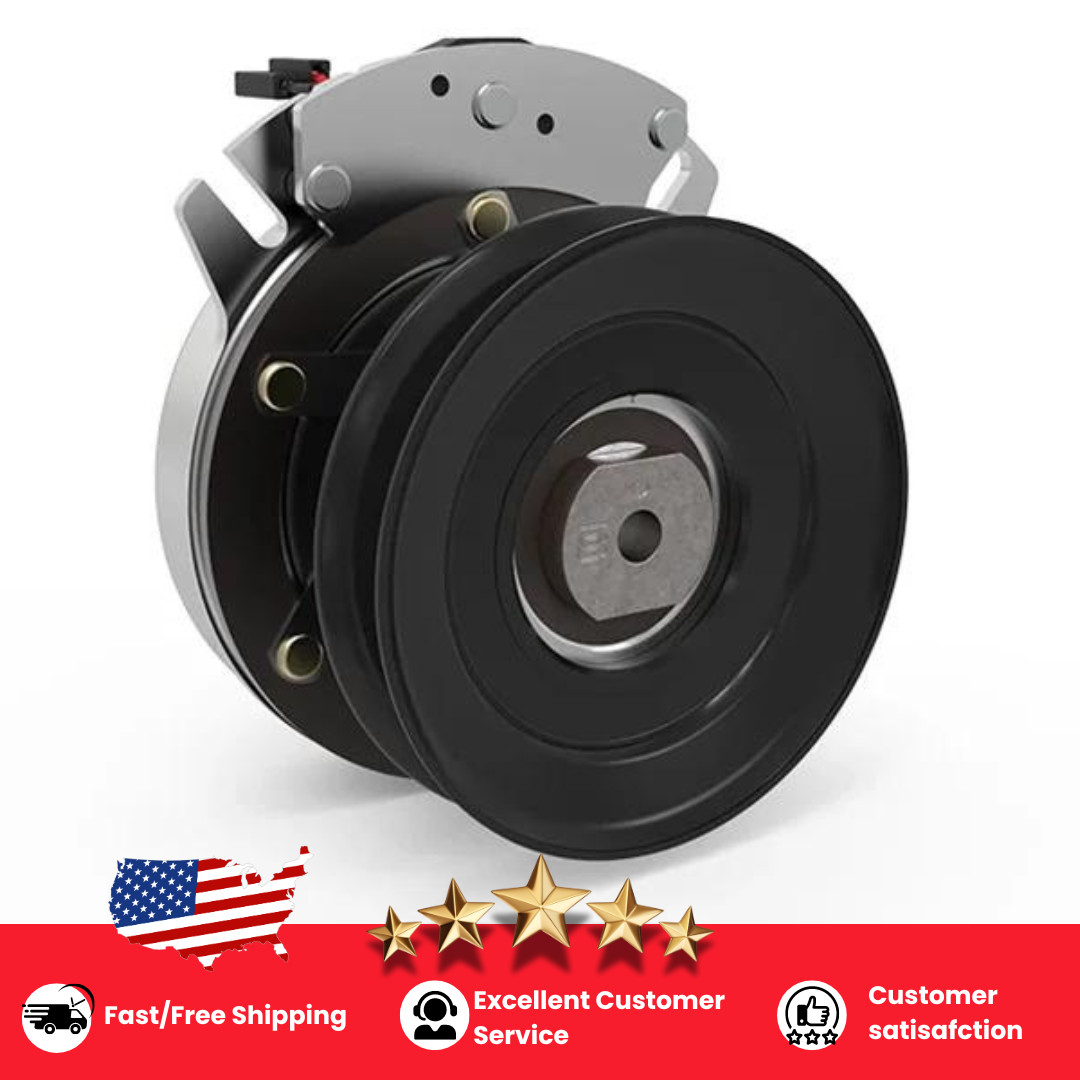

~Warner Electric PTO Clutch, 5219-156, AM144169 For Sale

5219-156

The TG2000 series incorporates the extended features of our Commercial MagStop Clutch/Brakes into a design specifically for tractors, ZTR’s and wide area mowers in this class. The MagStop clutch/brakes combine and electric friction clutch with a permanent magnet brake into a one piece preassembled unit for quick installation. These units are maintenance free, requiring no adjustment. All units are designed and assembled in the United States and are the original clutch/brakes supplied by the manufacturer of your mower or tractor.

TECHNICAL SPECIFICATIONSFunctionClutch / BrakeVoltage12 VDCRated Torque (lb-ft)125RotationCCWCurrent Draw (Amps)4.23Resistance (Ohms)2.84Connection TypeintegralPulley/Flange OD (in)5.59Bore Diameter (in)1MountingStandardWeight (lbs)11.8D-drive Number807-0201 included with this clutch/brakeCable Accessorynot includedManufacturers Part NumbersAM144169,AUC16267, 5219-187
