COILCRAFT, INC.

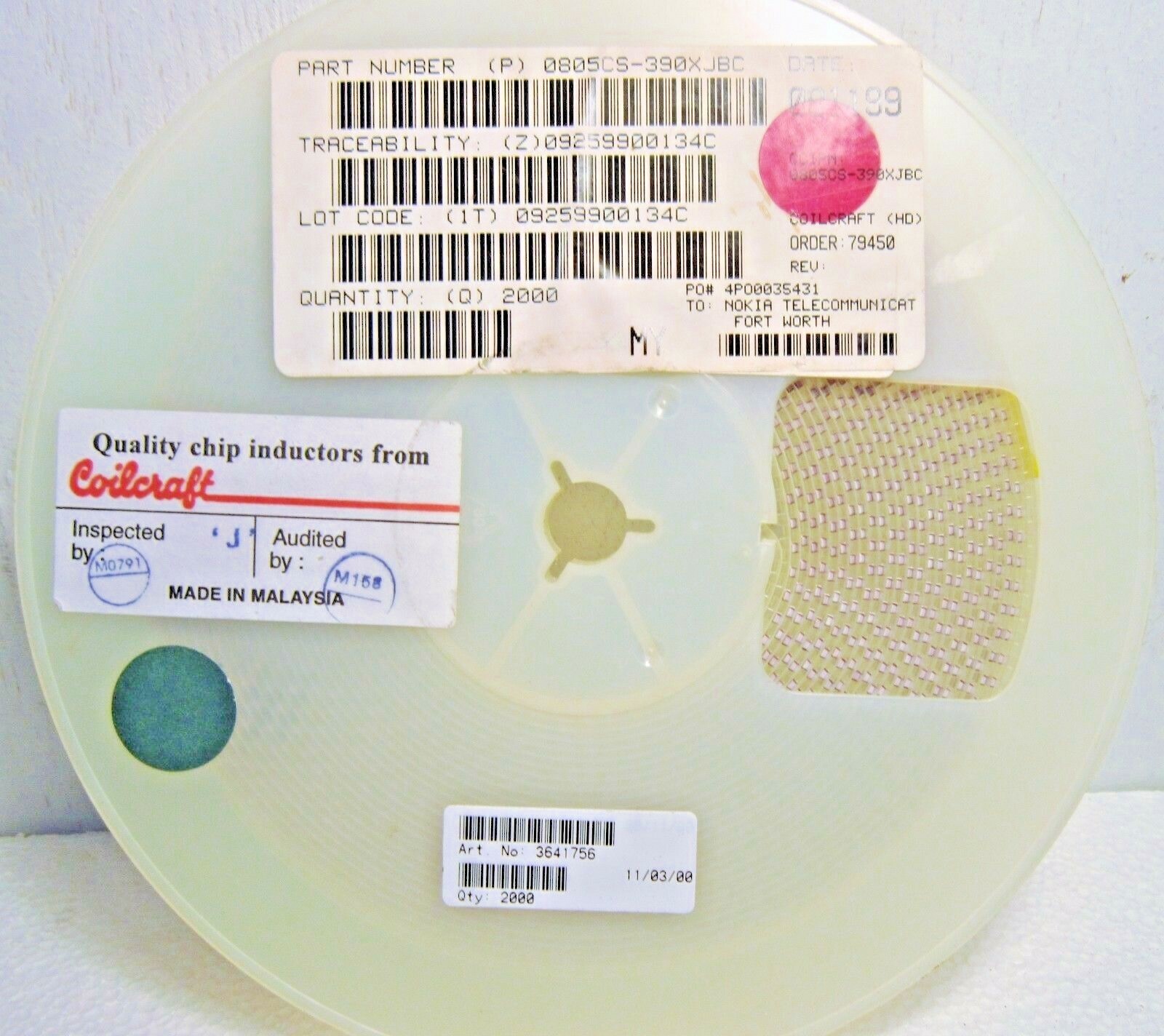

0805CS-390XJBC
2000-PIECE LOT (SMALL REEL)
General Purpose Inductor, 0.039uH, 5%, 1Element, Ceramic-Core, SMD, 0907
Mfr Package Description
CHIP
REACH Compliant
Yes
Inductor Type
GENERAL PURPOSE INDUCTOR
Case/Size Code
0907
Construction
Wirewound Chip
Core Material
CERAMIC
DC Resistance
0.29 ohm
Inductance-Nom (L)
0.039 µH
Inductor Application
RF INDUCTOR
Number of Functions
1
Number of Terminals
2
Operating Temperature-Min
-40.0 Cel
Operating Temperature-Max
125.0 Cel
Package Height
1.52 mm
Package Length
2.29 mm
Package Style (Meter)
SMT
Package Width
1.73 mm
Packing Method
TR, 7 Inch
Quality Factor-Min (at L-nom)
60.0
Rated Current-Max
0.5 A
Self Resonance Frequency
2000.0 MHz
Shape/Size Description
RECTANGULAR PACKAGE
Shielded
NO
Special Feature
Q MEASURED AT 500 MHZ
Surface Mount
YES
Terminal Placement
DUAL ENDED
Terminal Shape
WRAP-AROUND
Test Frequency
250.0 MHz
Tolerance
5.0 %
