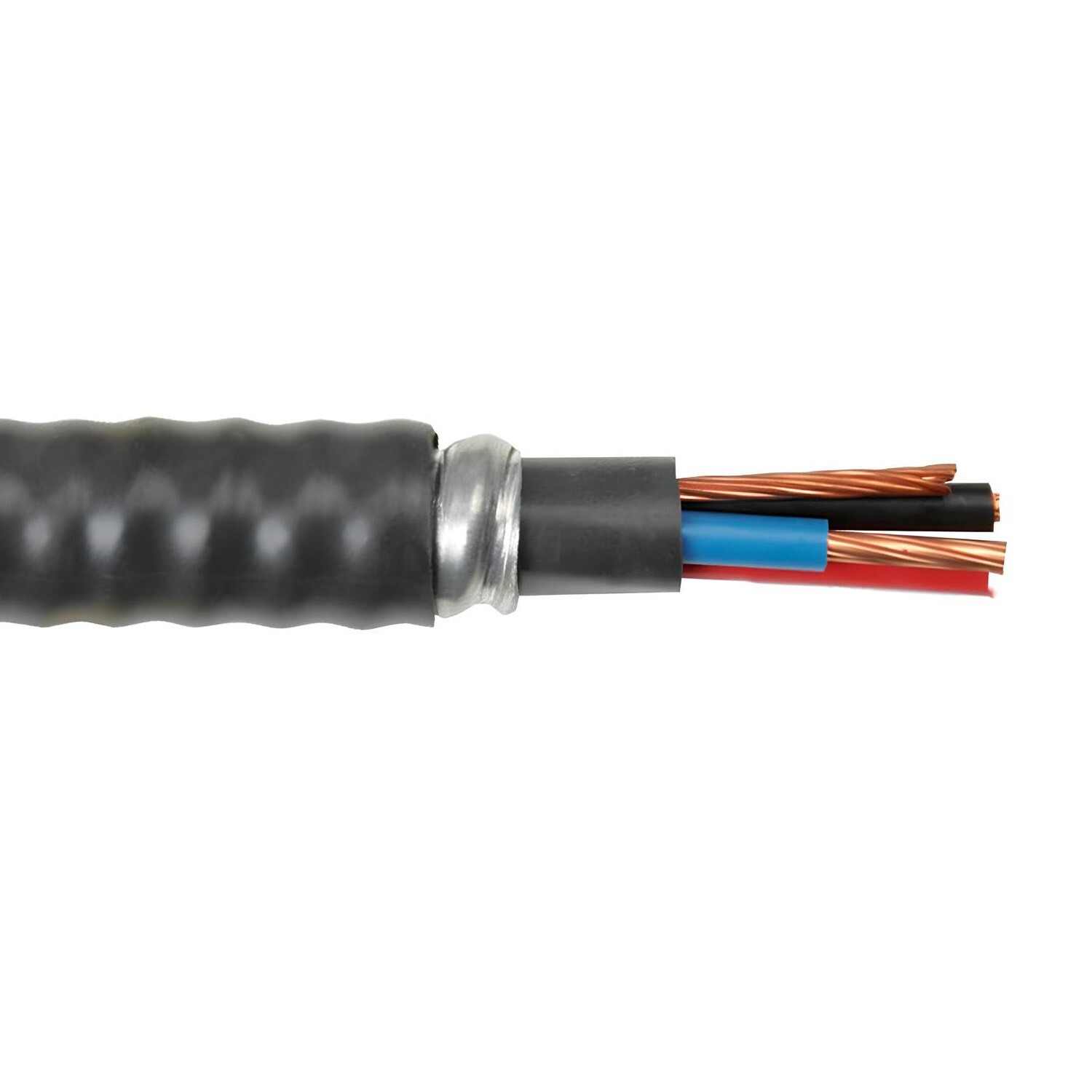

10/2 Teck 90 Armored Power Cable XLPE Insulation PVC Jacket Black 600V
Click Thumbnails to EnlargeAPPLICATION
• 10/2 Teck 90 Cable is for use in Power, Control and Lighting Circuits at Industrial and Chemical Plants, Pulp and Paper Mills, Steel Mills, Mines, Power Generating Facilities, Food Processing Plants and Commercial Centers. It is suitable for installation in wet or dry locations in troughs, trays and in Direct Burial Applications. Teck 90 is for Applications up to 600 volts and Temperatures from -40°C to +90°C.
CONDUCTOR
• Class B stranded soft drawn bare copper conductors per ASTM
INSULATION
• Cross-Linked Polyethylene (XLP) insulation
GROUND
• StrandedBare Copper Conductor
INNER JACKET
• Polyvinyl Chloride (PVC) Black
ARMOR
• Aluminum Interlocked Armor (AIA)
OUTER JACKET
• Black Polyvinyl Chloride (PVC) which is Water, Chemical, Sunlight and Abrasion Resistant
STANDARDS
• CSA C22.2, No. 131
• CSA C22.2, No. 174
• CSA FT1 and FT4 Flame Test
• RoHS Flame Test Compliances: CSA FT4 Hazardous Location
PRODUCT SPECIFICATIONSSize AWG 10Number of Conductors 2 + 1 Bare GroundGround Wire Size AWG 12Insulation Thickness (inches) 0.030Armor Diameter (inches) 0.670Outer Jacket Diameter (inches) 0.750Ampacity 40 AmpsWeight (Lbs/1000ft) 275CUT TO LENGTH
• If you are looking for any Custom Lengths? Please feel free to contact us.We Can do all Cut Lengths.
OTHER VALUE ADDED SERVICES
• Expedited Shipping
• Cut to Length Paralleling
• Color Striping & Dyeing
• Reel Lagging
• Special Labeling & Packages
