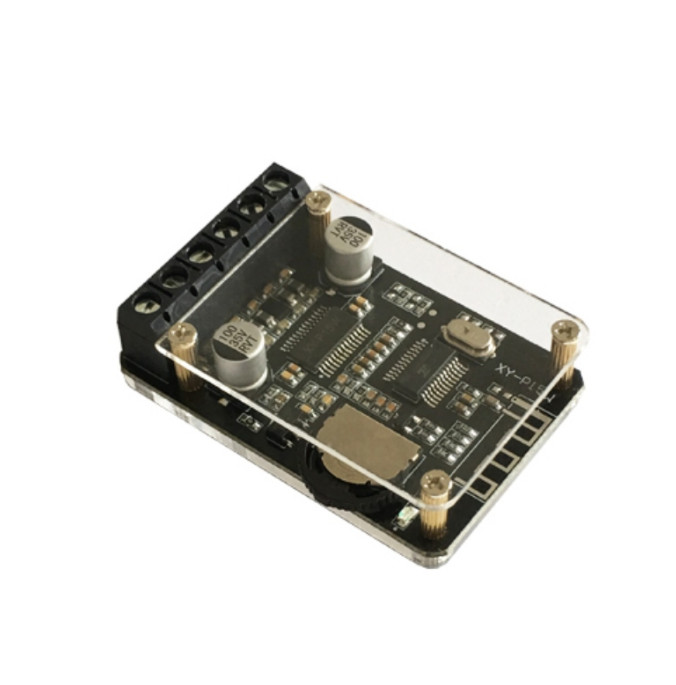

10W/15W/20W Stereo Bluetooth Power Amplifier Board 12V/24V Digital Module XY-P15 For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
10W/15W/20W Stereo Bluetooth Power Amplifier Board 12V/24V Digital Module XY-P15:
$11.40
--The Bluetooth audio amplifier board input voltage range is DC 8-24V. Current input: 2A or above. NOTE: Input voltage must no more than 26V, otherwise the audio amplifier module will be damaged.
--Two channels 10W/15W/20W amplifier board work with various speakers (4-16 ohm), supporting Bluetooth stereo audio input.
--This Bluetooth audio amplifier module come with a protective shell, greatly protect the units from damaged, supporting reverse connection protection, short circuit protection and self-recovery overheat protection.
--Press gear potentiometer to pause/play. Turn right to increase volume and turn left to decrease volume. Indicator light design helps to know the connection condition.
--Using the latest Bluetooth version 5.0, the distance between Bluetooth wireless audio input and the max receive is 15m(No obstacles).
Feature:
--Width work voltage range
--Applicable multiple type speakers
--Knob adjustment
--Reverse connection protection
--Short circuit protection
--Self-recovery overheat protection
--Bluetooth 5.0
--Protective shell
Parameter:
Work Voltage: DC 8V-24V
Communication distance: 15meter(Max)
Output Power(at 1KHz):
Output power 16W*2 at 12V 4ohm
Output power 10W*2 at 12V 8ohm
Output power 15W*2 at 16V 4ohm
Output power 15W*2 at 16V 4ohm
Output power 20W*2 at 20V 4ohm
Output power 30W*2 at 24V 4ohm(Need add extra heat sink!)
Match speaker(30W~150V):
4ohm at 8V~12V
8ohm at 8V~24V
16ohm at 8V~24V
Work Temperature: -40℃~85℃
Work Humidity: 0%~95%RH
Module Size: 50*35*14mm
Package Included:
1* Stereo Bluetooth Power Amplifier Module
|
|
