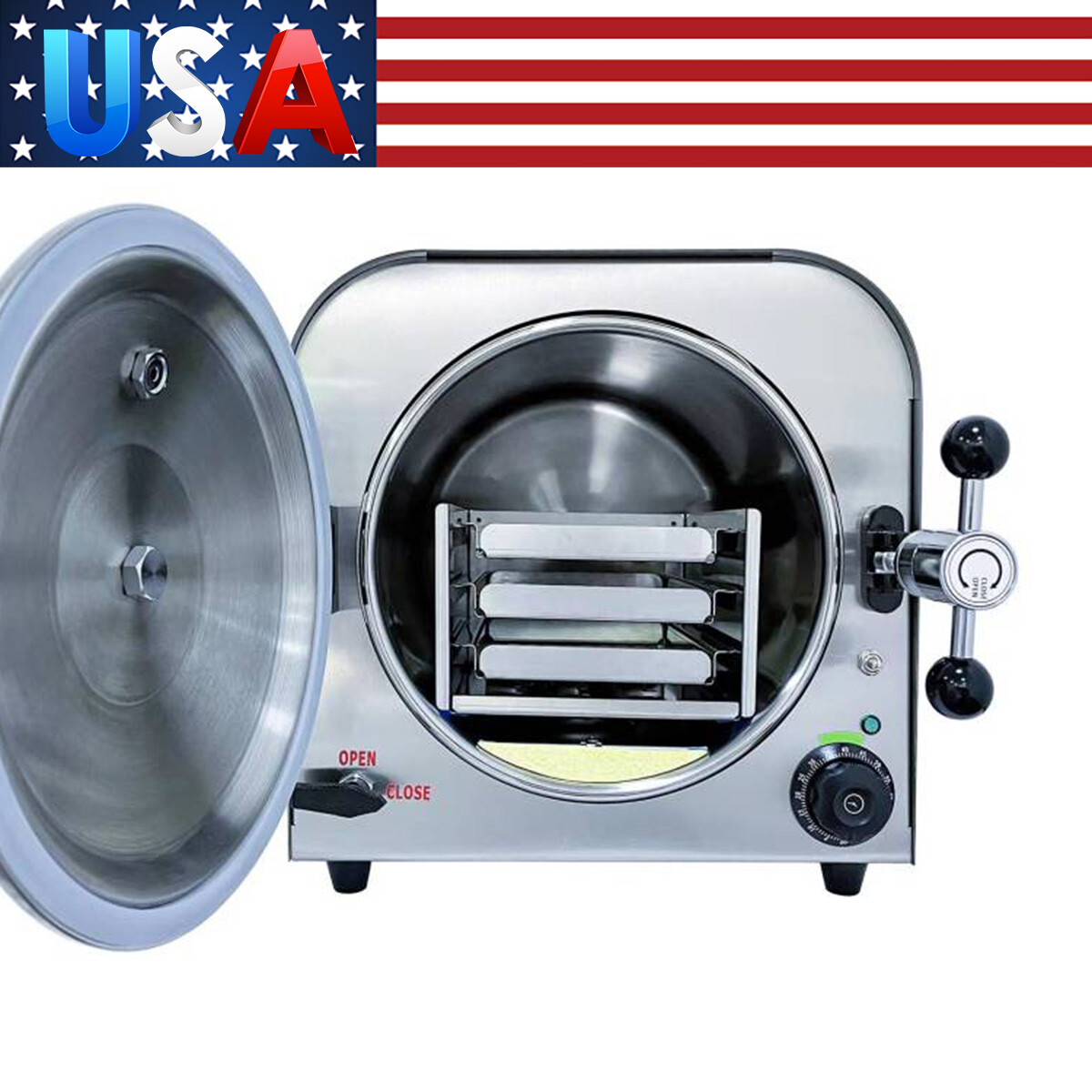

14L Autoclave Steam Sterilizer
• Description:
•
• Chamber capacity:Ø25×D28CM (Ø9.84×D11.02inch)
•
• Inside capacity：14 Liter
•
• Material：Stainless steel #304
•
• Outside Size：46.5*35*36 CM
•
• Packing Size：51*39*40 CM
•
• G.W:15KGS
•
• Sterilizer temperature：121℃
•
• Sterilize pressure：0.12Mpa
•
• Sterilize time：25Min
•
• Power：900W
•
• AC110V/8A
•
• AC220V/4A
•
• Auto supply water system: Manual give the water
•
• Safety valve: automatic discharge in excess of standard value
•
• Temp and Press display：Pressure gauge
•
• Disinfection principle：Uses the vapor power emissions cold air / 2 times
•
• Operation Steps：
•
• 1.Plug in the power cord
•
• 2.Shut exhaust needle valve in the Close (clockwise)°
•
• 3.Adding about 800 ml of distilled water. Close the door cover, tight the rotate handle
•
• 4. Start the timer knob to 121℃position. Sterilization is working.
•
• 5.Sterilization is complete, please be sure to open the exhaust needle valve firstly (inverse clock direction)
•
• 6.Wait for the pressure gauge pointer to zero, opened the door cover
•
• Caution：
•
• Every time sterilization, must add about 800 ml of distilled water
•
• Use a separate socket (confirm the socket of the output voltage)
•
• Pressure gauge pointer in the red areas, please be sure to first Open the exhaust steam of the needle valve
•
• Packing:
•
• main unit 1pc
•
• Standard accessories:
•
• Plate 3pcs ( Size:201*136*21 mm)
•
• Shelf 1pc
•
• Take Plate tool 1pc steam exhaust pipe 1pc(1 meter length)
18L Autoclave Steam Sterilizer
Chamber capacity:Ø25×D35CM (Ø9.84×D13.78inch)
Inside capacity：18 Liter
Material：Stainless steel #304
Outside Size(L*W*H)：58*39*36 CM
Packing Size(L*W*H)：64*44*36.5CM
Sterilizer temperature/pressure：121℃/0.12Mpa; 134℃/0.22Mpa
Sterilize time：25Min/6Min
Power：1000W
AC110V/8A
AC220V/4A
SAFETY : Heating-over protection ; safety valve
Safety equipment:
1.Pressure adjustment: adjust the inter pressure, if over standard value
automatic vent
2. Avoid overheat protect device: when inter temperature overheat, power break electric current automatically.
Temp and Press display :Led several windows
Disinfection principle：Uses the vapor power emissions cold air / 2 times
Caution：
1.Before each use, distilled water is better .
2.Do not use any corrosive or chemical water as the disinfection.
3.Do not share the same electricoutllet with other electrical apparetus.
4.Please pay attention to correct voltage and frequency.
5.Connect steam exhaust pipe with the steam vent，before operation.
Packing:
main unit 1pc
Standard accessories:
Tray Rack 1pc
Tray 3pcs（size：26*15*2cm）
Tray removal tong 1pc
Draining Tube 1pc
Intake pipe 1pc
Operation manual 1pc
Power cord 1pc
18L Autoclave Steam Sterilizer Drying Function
Description:
Voltage:110V/220V; 50Hz/60Hz
Heater Power: 1100W
Tank capacity: 18L
Inside dimensions: Φ250 x D350mm
Sterilize temperature: 122℃& 134℃
Sterilize pressure: 0.12Mpa & 0.23Mpa
Sterilize time: 25min & 6min
Drying time: 40min
Tank Material: Stainless steel #304
Machine size (L*W*H): 60 * 39 * 36cm
Packing size (L*W*H): 61 * 53 * 40cm
N.W.: 33KG
G.W.: 35KG
Standard accessories:
Plate * 3PCS（size：26*15*2cm）;
Shelf * 1PC;
Plate Taking tool * 1PC
Application: For dental, surgery, beauty salon, medical care, laboratory, and so on.
Caution：
1.After the completion of disinfection,please to wait for 10 minutes.
Pressure Gauge in red area. Do not rotate handle, open the steam discharge valve firstly.
2.Before each use,must supply water 800ml of distilled water .
3.Please close steam discharge valve before the disinfection.
4.Do not use any corrosive or chemical water as the disinfection.
5.Do not share the same electricoutllet with other electrical apparetus.
6.Please pay attention to correct voltage and frequency.
7.Connect steam exhaust pipe with the steam vent，before operation.
FDA Statement
The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, you can offer on this item only if you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item.
Seller number:0755-23998164
K181993
Device Classification NameSterilizer, Steam
510(K) NumberK181993
Device NameSTURDY Autoclave Super Microm (Models SA-260MA And SA-260MA-R)
Regulation Number880.688
Classification Product CodeFLE
Date Received7/26/2018
Decision Date11/1/2019
Device Class2
Regulation Number21CFR880.6880
