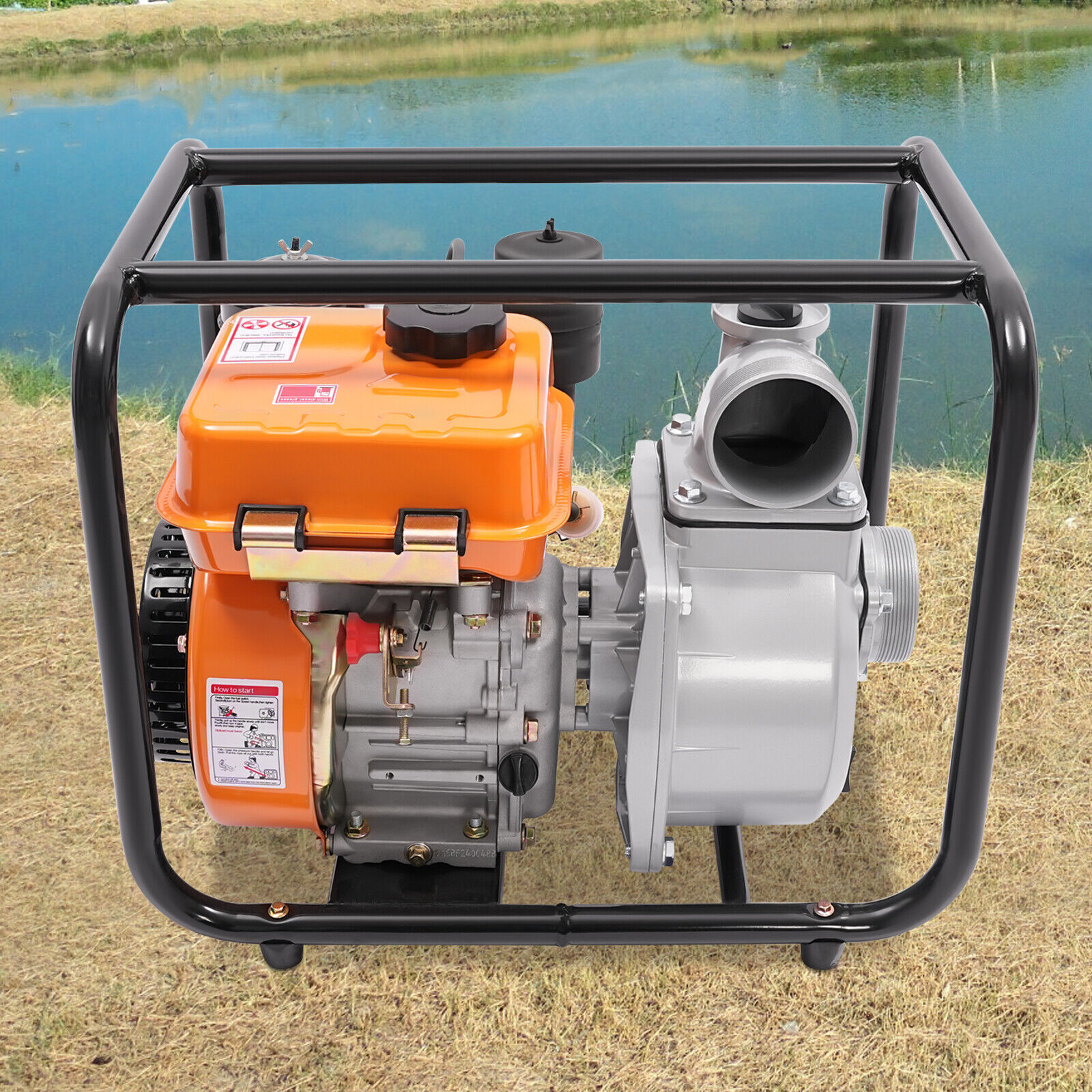

168F Diesel Water Pump 196CC 2.3 kW 3\" Inlet/Outlet 4L Tank With 7.5m Hose For Sale

196CC Water Pump W/pipe,4l/1.06gal Diesel Powered 3600rpm Water Transfer Pump 168F Diesel Water Pump — 196CC, 2.3 kW, 3\" Inlet/Outlet (Black & Orange)

A portable diesel-powered water pump designed for garden, field and general water-lifting tasks. Durable aluminum die-cast body, hand-pull start (electric start can be fitted), and 3\" inlet/outlet for high flow transfer. ⚙️

Key Features

• Robust construction: Die-cast aluminum housing for pressure and corrosion resistance.
• Engine performance: 196CC four-stroke, air-cooled single-cylinder engine producing 2.3 kW at 3600 rpm.
• High flow & lift: Up to 40 m³/h flow, max suction lift 7 m (22.97 ft) and max lift 26 m (85.3 ft).
• Portable setup: Compact size and top handle for easier transport.
• Complete package: Includes a 7.5 m water pipe and required assembly accessories.
• Note: Hand-pull start by default; can be changed to electric start per listing details.

This pump is suited for irrigation, pond or river water transfer, drainage and other water-lifting projects. The built-in inlet filter helps reduce debris entry, and visible cooling openings aid heat dissipation during operation.

The design focuses on stable running and simple maintenance. Follow the operating steps and recommended fluids to ensure correct start-up and reliable service.

SpecificationsModel168FColorBlack, OrangeMaterial & ProcessAluminum, Die-castingEngine TypeFour-stroke, Air Cooling, Single-cylinderPower Source / FuelDiesel-powered / 0# dieselIgnition / StartCompression ignition / Hand-pull start (changeable to electric start)Displacement196CCEngine Power2.3 kWSpeed3600 rpmMax Flow40 m³/h (approx. 131.23 ft³/h)Max Suction Lift7 m / 22.97 ftMax Lift26 m / 85.3 ftFuel Tank Capacity4 L / 1.06 GalFull Fuel Running Time2 HLubricationSplash lubrication; Lubricating oil capacity 0.8 L / 0.21 Gal; Recommended lubricant: 10w40Noise75 dBInlet / Outlet Diameter7.6 cm / 3 inWater Pipe Length7.5 m / 24.61 ftProduct Size51.5 × 39.5 × 42.5 cm / 20.28 × 15.55 × 16.73 inGross Weight34.68 kg / 76.46 lbsNet Weight30.44 kg / 67.11 lbsPackage Size52 × 41 × 44.5 cm / 20.47 × 16.14 × 17.52 inPackage Included

• 1 × Water Pump
• 1 × Water Pipe (7.5 m)
• 1 × Manual (English, German, French, Portuguese)
• All accessories for assembly

Usage Tips

• Initial setup: Lay the machine flat and fill with oil until a slight drip appears (avoid overfilling or underfilling).
• Fuel: Use clean 0# diesel only.
• Priming: Fill the pump head section with water until it overflows from the spout before starting.
• Starting sequence (summary): Turn red switch ON → adjust throttle/air vent/oil switch as described in manual → pull starter cord. Follow manual steps exactly.
• Break-in: Change oil after first 5–10 hours of use to remove break-in impurities.

Care & Maintenance

• Keep the air filter clean; replace or clean the element regularly.
• Use recommended 10w40 oil and maintain specified oil level.
• Allow engine to cool before refueling or performing maintenance.
• Wipe outer surfaces with a soft cloth to remove dirt.

Important Notes

• Safety: Do not touch hot parts. Keep the muffler outlet away from the operator. Avoid running near open flames.
• Operation limits: Do not stop a diesel engine at high speed — reduce throttle before stopping.
• Temperature: During continuous operation, crankcase temperature must not exceed 194°F; pause 15–20 minutes if overheating occurs.
• Allow for slight color variation due to photography and a 1–3 cm measurement tolerance.
• Please read the supplied user manual carefully and follow all safety precautions included.

Ready to handle irrigation and water transfer tasks—check the listed specifications and the manual before purchase. If you have any questions about parts or operation, refer to the included manual.
