Main Feature:
▶High current automotive connector, reinforced nylon, made of high quality materials, toughness and durability.
▶ Connector terminal: Excellent oxidation resistance and excellent welding performance, improve the electrical conductivity of the connector joints, and ensure the working stability and reliability of electrical components.
▶Reinforced nylon raw material: stable, strong conductive, anti-oxidation, high temperature resistance, corrosion resistance, anti-aging.
▶Waterproof, dustproof design: waterproof and dustproof level up to IP65.
▶ Flame-retardant: Deutsch engineers specify flame-retardant, high grade thermoplastics for all deutsch connector molded components to reduce the risk of fire. Impact resistant materials thermoplastic materials are selected to avoid breakage caused by impact during use.
▶Able to cope easily in high vibration applications.No unlocking or physical damage after sinusoidal vibration levels of 20 Gs at 10 to 2000Hz
▶Waterproof-Correctly wired & joined they will withstand 1 meter under water without loss of electronic qualities or leakage
▶Fluid resistance- Shows no damage when exposed to most fluids in industrial applications.
▶Operating temperature of -55c to +125c continuously at rated current
▶ Durable- No electrical or mechanical damage after 100 cycles of joining & pulling apart
Specification:

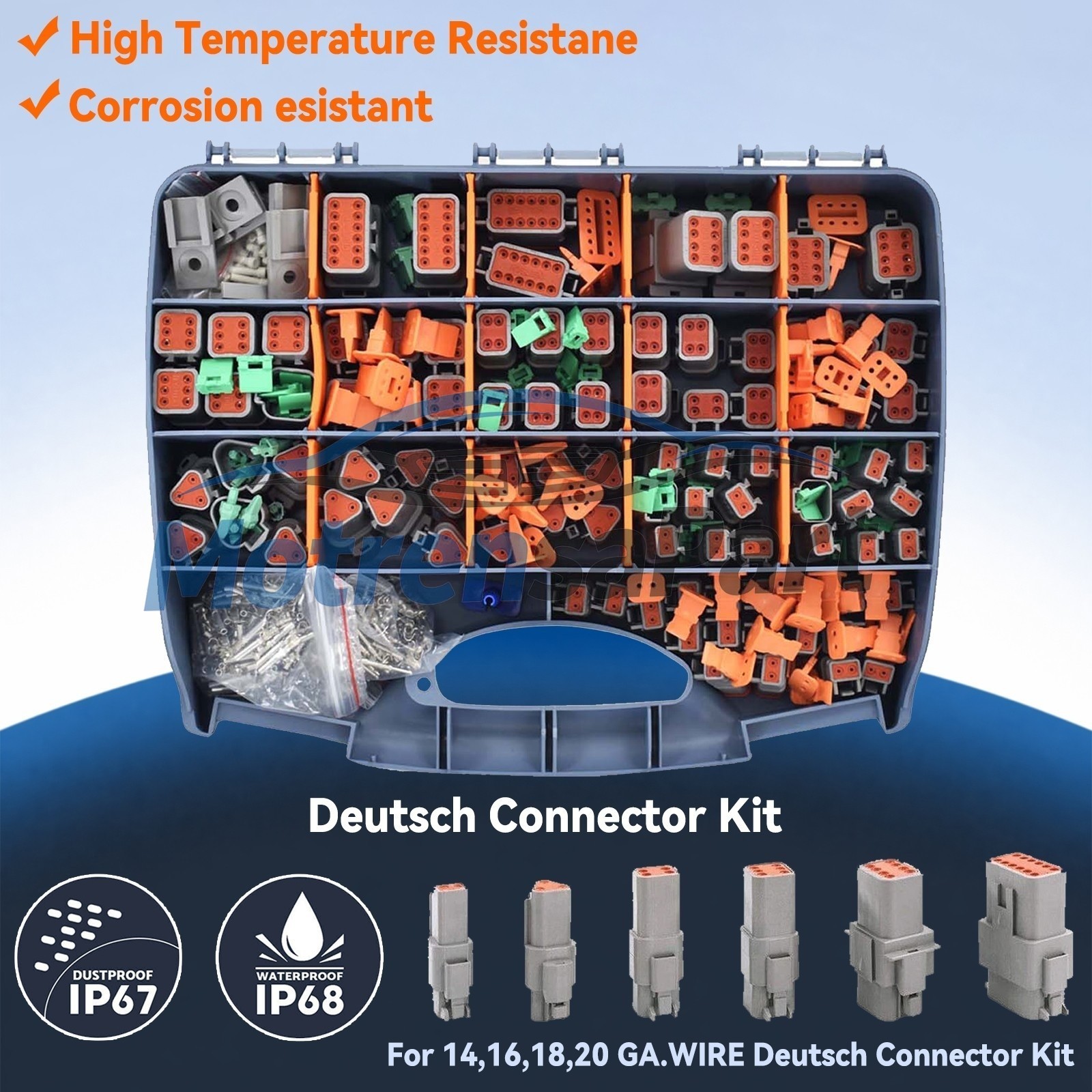

1. Product type: Deutsch DT connector plug kit.
2. Housing Material: Thermoplastic
3.Gasket and Insulating Material: Silicone
4. IP Rating: IP67
5. Insulation: 1000 MOhm
6. Dialectric Rating: <2 mA at 1500 VAC
7. Operating Temperature: -55 to 125 deg C
8. Mating Cycles: 100 – minimum
9. DT series current rating: 13 amps.
10. Durability: No electrical or mechanical defects after 100 cycles of engagement, or disengagement.
11. Submersion: properly wired and mated connections will withstand immersion below 3 feet of water without loss of electronic qualities or leakage.
12. Vibration: maintains continuity and exhibits no mechanical or physical damage after vibration of 20 g's at 10-2000 hz.
13. Durability: No electrical or mechanical defects after 100 cycles of engagement, or disengagement.
Package Content:
15x DT04-2P 2-way receptacle with wedgelock
15 x DT06-2S 2-way plug with wedgelock
9 x DT04-3P 3-way receptacle with wedgelocl
9 x DT06-3S 3-way plug with wedgelock
9 x DT04-4P 4-way receptacle with wedgelock
9 x DT06-4S 4-way plug with wedgelock
6 x DT04-6P 6-way receptacle with wedgelock
6 x DT06-6S 6-way plug with wedgelock
2 x DT04-8P 8-way receptacle with wedgelock
2 x Dto6-8S 8-way plug with wedgelock
2 x DT04-12P 12-way receptacle with wedgelock
2 x DT06-12S 12-way plug with wedgelock
170 x 1062-16-0122 # 16 stamped female
170 x1060-16-o122 # 16 stamped male
230 x 114017 White sealing blanks
5 x 1011-026-0205 Mounting brackets
1x AT11-310-1605 Removal Tool
1x 17 compartment heavy duty case
